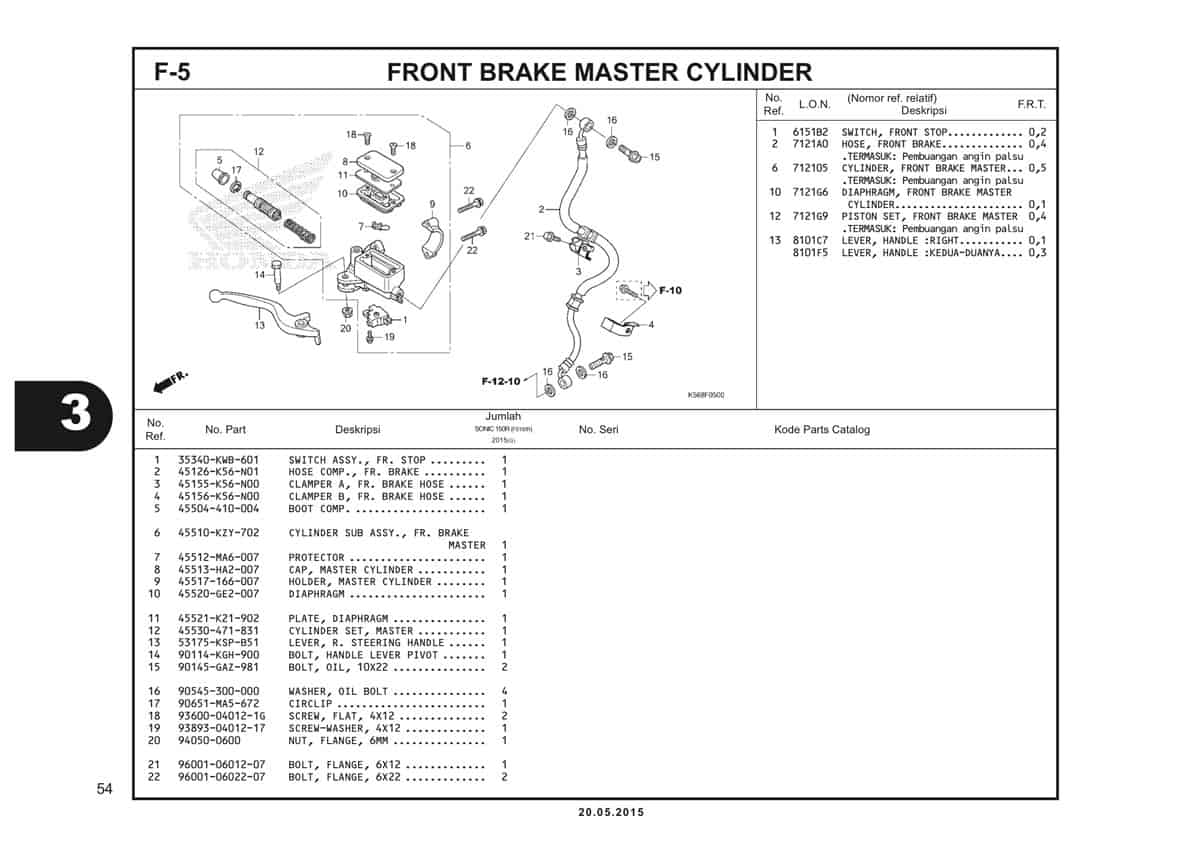

F5 – Front Brake Master Cylinder – Katalog Honda Sonic 150R K56

#	Informasi Produk	Visual
1	Switch FR Stop assy Part Number : `35340KWB601`
2	Hose Comp FR Brake Part Number : `45126K56N01`
3	Clamper A FR Brake Hose Part Number : `45155K56N00`
4	Clamper B FR Brake Hose Part Number : `45156K56N00`
5	Boot Comp Part Number : `45504410004`
6	Cylinder Sub Assy FR Brake Part Number : `45510KZY702`
7	Protector Part Number : `45512MA6006`
8	Cap Master Cylinder Part Number : `45513HA2007`
9	Holder Master Cylinder Part Number : `45517166006`
10	Diaphragm Part Number : `45520GE2006`
11	Plate Diaphragm Part Number : `45521K21902`
12	Cylinder Set Master Part Number : `45530471831`
13	Lever R Steering Handle Part Number : `53175KSPB51`
14	Bolt Handle Lever Part Number : `90114KGH900`
15	Bolt Oil 10X22 Part Number : `90145GAZ981`
16	Washer Oil Bolt Part Number : `90545300000`
17	Circlip Part Number : `90651MA5672`
18	Screw Flat 4X12 Part Number : `93600040121G`
19	Screw Washer 4X12 Part Number : `938930401217`
20	Nut Flange 6MM Part Number : `9405006000`
21	Bolt Flange 6X22 Part Number : `960010602207`
