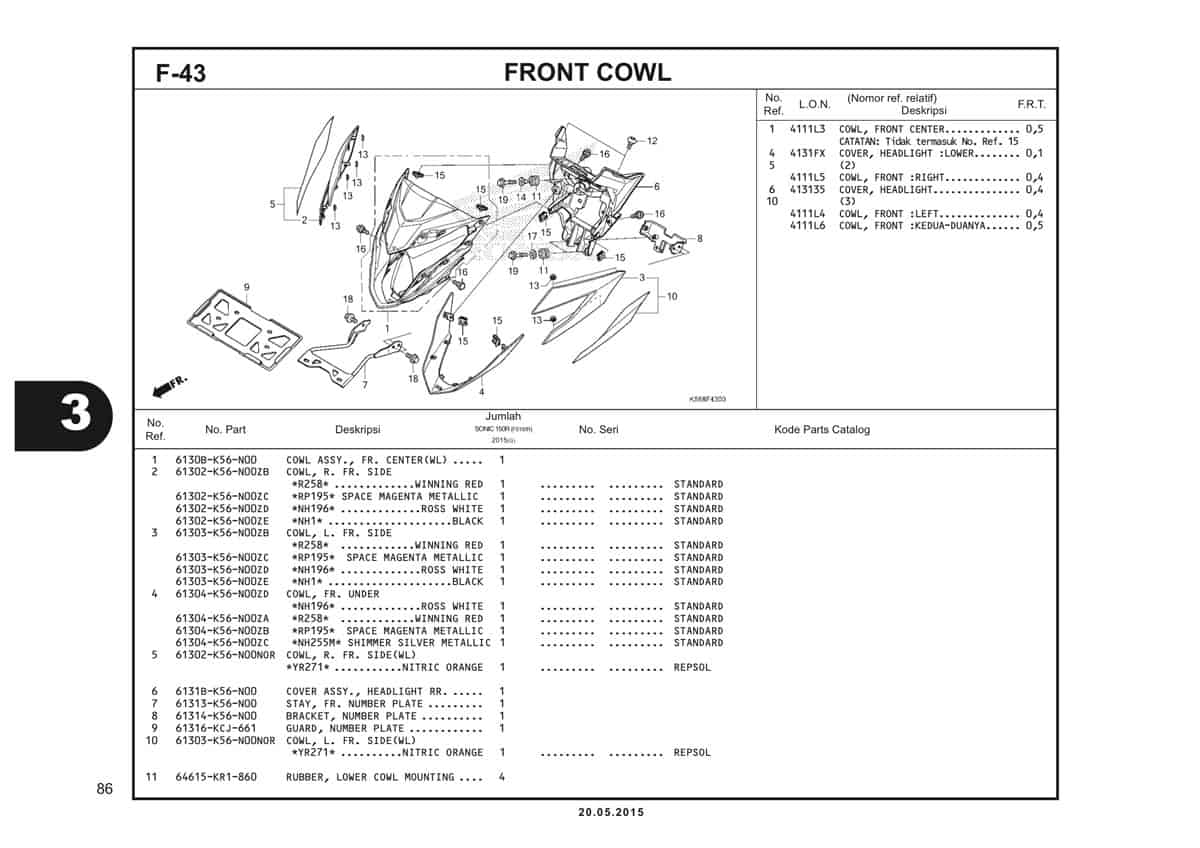

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Cowl Fr Center Assy | 6130BK56N00 |
|
| 2 | Cowl R FR Side (WIN RED) | 61302K56N00ZB |
|
| 2 | Cowl R FR Side (SP MG MT) | 61302K56N00ZC |
|
| 2 | Cowl R FR Side (RO WH) | 61302K56N00ZD |
|
| 2 | Cowl R Fr Side (MT GN BL) | 61302K56N00ZF |
|
| 2 | Cowl R FR Side (BK) | 61302K56N00ZE |
|
| 2 | COWL R, FR SIDE (VA RD) | 61302K56N00ZG |
|
| 3 | Cowl L FR Side (WIN RED) | 61303K56N00ZB |
|
| 3 | Cowl L FR Side (SP MG MT) | 61303K56N00ZC |
|
| 3 | Cowl L FR Side (RO WH) | 61303K56N00ZD |
|
| 3 | Cowl L Fr Side(Mt Gn Bl) | 61303K56N00ZF |
|
| 3 | Cowl L FR Side (BK) | 61303K56N00ZE |
|
| 4 | Cowl FR Under (RO WH) | 61304K56N00ZD |
|
| 4 | Cowl FR Under (WIN RED) | 61304K56N00ZA |
|
| 4 | Cowl FR Under (SP MG MT) | 61304K56N00ZB |
|
| 4 | Cowl FR Under (SH SL MT) | 61304K56N00ZC |
|
| 4 | Cowl FR Under (MT GN BL) | 61304K56N00ZF |
|
| 4 | COWL FR UNDER(NI OR) | 61304K56N00ZE |
|
| 4 | COWL,FR UNDER (AF BK MT) | 61304K56N00ABM |
|
| 4 | COWL,FR UNDER (VA RD) | 61304K56N00ZJ |
|
| 5 | Cowl R Fr Side (NI OR) | 61302K56N00NOR |
|
| 5 | SET ILS,R FR SD COWL TYP 1 | 61305K56NG0ZA |
|
| 6 | Cover Assy Headlight RR | 61311K56N00 |
|
| 7 | Stay FR Number Plate | 61313K56N00 |
|
| 8 | Bracket, Number Plate | 61314K56N00 |
|
| 9 | Guard Number Plate | 61316KCJ661 |
|
| 10 | Cowl L Fr Side (NI OR) | 61303K56N00NOR |
|
| 10 | SET ILS,L FR SD COWL TYP 1 | 61355K56NG0ZA |
|
| 11 | Rubber, Lower Cowl Mount | 64615KR1860 |
|
| 12 | Screw Pan 5X14 | 90134KPPT01 |
|
| 12 | Screw Pan 5X14 | 90134KPPT00 |
|
| 13 | Nut Push 6mm | 90301K12900 |
|
| 14 | Collar, FR. Cowl | 90310KWS900 |
|
| 15 | Nut Clip 5MM | 90677KANT00 |
|
| 16 | Screw Pan 5x11.5 | 91509GE2760 |
|
| 17 | Washer Plain 6MM | 9410306000 |
|
| 18 | Bolt Flange 6X10 | 957010601000 |
|
| 19 | Bolt Flange 6X22 | 957010602208 |
|
