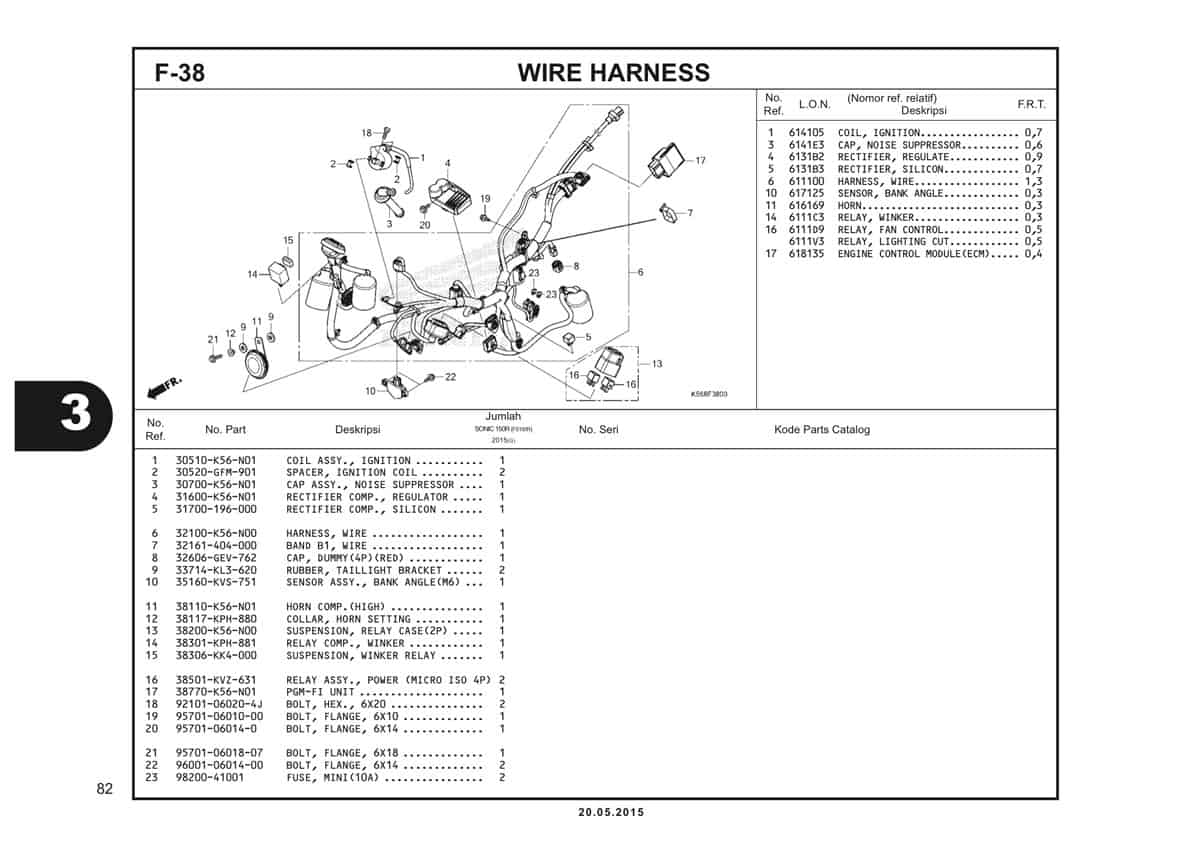

F38 – Wire Harness – Katalog Honda Sonic 150R K56

#	Informasi Produk	Visual
1	Coil Assy Ignition Part Number : `30510K56N01`
2	Spacer Ign Coil Part Number : `30520GFM900`
3	Cap Assy Noise Suppresor Part Number : `30700KY2702`
4	Rectifiar Comp Part Number : `31600K56N01`
5	Rectifiar Comp Silicon Part Number : `31700196000`
6	Harness Wire Part Number : `32100K56N00`
7	Band B1 WIRE /K5 Part Number : `32161404000`
8	Dummy,Wpc 4P 090 M (RED) Part Number : `32606GEV762`
9	Rubtail/LT Brkt. Part Number : `33714KL3620`
10	Sensor AssyBank Angle M6 Part Number : `35160KVS751`
11	Horn Comp.(HIGH) Part Number : `38110K56N01`
12	Collar Horn Setting Part Number : `38117KPH880`
13	Suspension Relay CASE(2P) Part Number : `38200K56N00`
14	Relay Comp Winker Part Number : `38301KPH881`
15	Suspension Relay Part Number : `38306KK4000`
16	Relay Comp, Start Part Number : `38501KVZ631`
17	PGM-FI Unit Part Number : `38770K56N01`
18	Bolt HEX 6X20 Part Number : `92101060204J`
19	Bolt Flange 6X10 Part Number : `957010601000`
20	Bolt Flange 6x14 Part Number : `960010601400`
21	Bolt Flange 6X18 Part Number : `957010601807`
22	Bolt Flange 6X14 Part Number : `960010601400`
23	Fuse, MINI(10A) Part Number : `9820041000`
