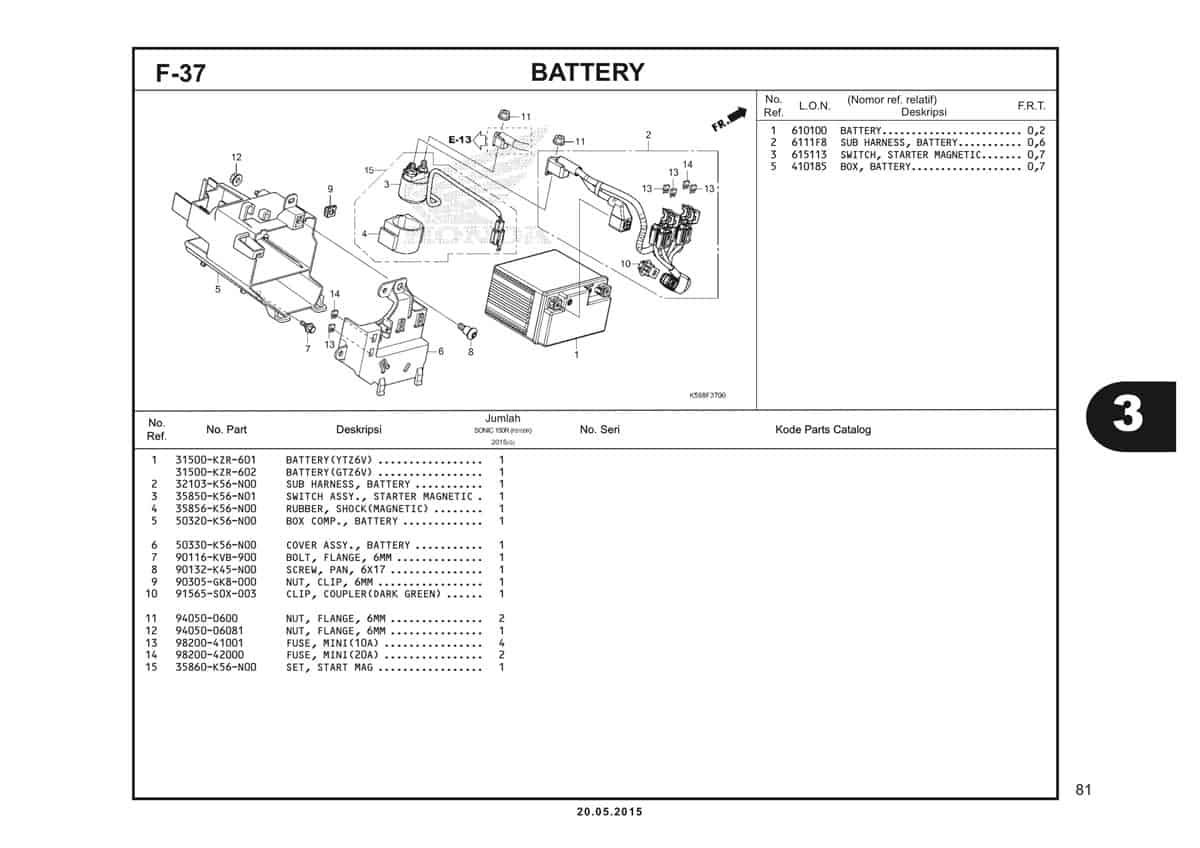

F37 – Battery – Katalog Honda Sonic 150R K56

#	Informasi Produk	Visual
1	Battery YTZ6-V Part Number : `31500KZR601`
1	Battery (GTZ6V) Part Number : `31500KZR602`
2	Sub Harnes Battery Part Number : `32103K56N00`
3	Switch Aassy., Starter Magnetic Part Number : `35850K56N01`
4	Rubber, Shock(Magnetic) Part Number : `35856K56N00`
5	Box Comp Battery Part Number : `50320K56N00`
6	Cover Assy Battery Part Number : `50330K56N00`
7	Bolt Flange 6mm Part Number : `90116KVB900`
8	Screw Pan 6X17 Part Number : `90132K45N00`
9	Nut,Clip 6MM Part Number : `90305GK8000`
10	Clip, Coupler (Dark Green) Part Number : `91565S0X003`
11	Nut Flange 6mm Part Number : `9405006000`
12	Nut,Flange 6MM Part Number : `9405006080`
13	Fuse, Mini(10A) Part Number : `9820041000`
14	Fuse F20A (Mini) Part Number : `9820042000`
15	Set,Start Mag Part Number : `35860K56N00`
