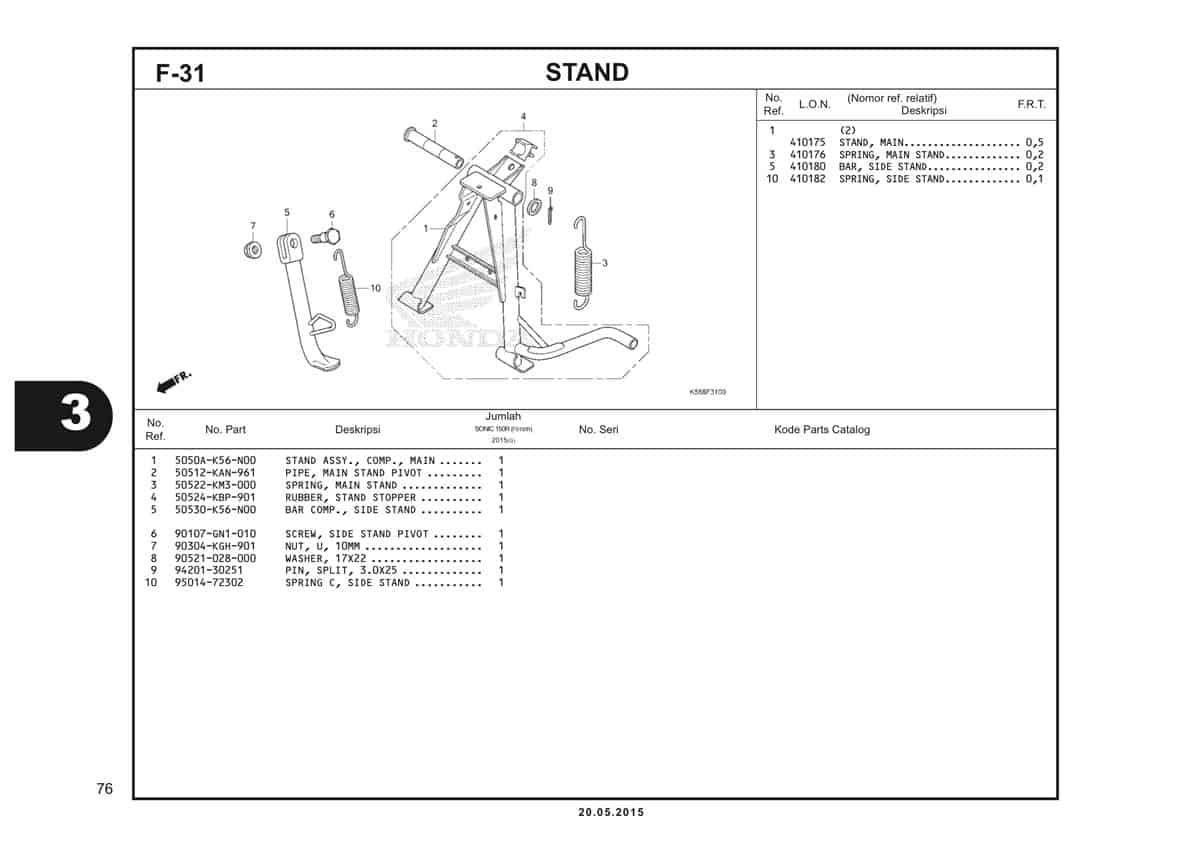

F31 – Stand – Katalog Honda Sonic 150R K56

#	Informasi Produk	Visual
1	Stand Comp Main Assy Part Number : `5050AK56N00`
2	Pipe Main Stand Pivot Part Number : `50512KAN961`
3	Spring, Main Stand Part Number : `50522KM3000`
4	Rub.Stnd.Stop. Part Number : `50524KBP900`
5	Bar Comp Side Stand Part Number : `50530K56N00`
6	Screw Side Stand Part Number : `90107GN1010`
6	SCW.SD.STAND PV. Part Number : `90107KBA900`
7	Nut U 10mm Part Number : `90304KGH901`
8	Washer 17X22 Part Number : `90521028000`
9	Pin Split 30X25 Part Number : `9420130251`
10	Spring Side Stand Part Number : `9501472302`
