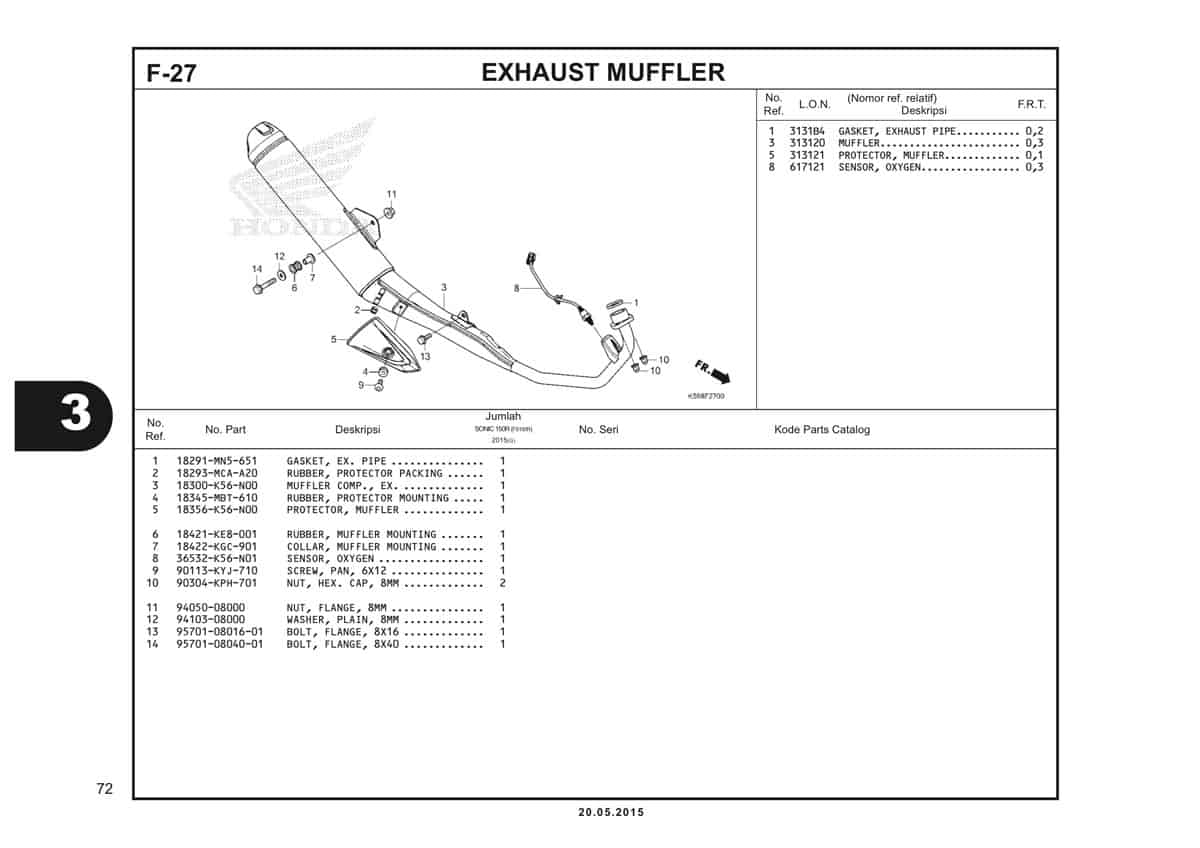

F27 – Exhaust Muffler – Katalog Honda Sonic 150R K56

#	Informasi Produk	Visual
1	Gasket EXH.Pipe Part Number : `18291MN5650`
2	Rubber Protector Pack Part Number : `18293MCAA20`
3	Muffler Comp Exhaust Part Number : `18300K56N00`
4	Rubber Protector Mount Part Number : `18345MBT610`
5	Protector Muffler Part Number : `18356K56N00`
6	Rubber , Muffler Mounting Part Number : `18421KE8000`
7	Collat,Muff.Mount Part Number : `18422KGC900`
8	Sensor Oxygen Part Number : `36532K56N01`
9	Screw Pan 6x12 Part Number : `90113KYJ710`
10	Nut Hex Cap ,8MM Part Number : `90304KPH701`
10	Nut Hex Cap ,8MM Part Number : `90304KPH700`
11	Nut Flange 8MM Part Number : `9405008000`
12	Washer Plain 8MM Part Number : `9410308000`
13	Bolt, Flange 8X16 Part Number : `957010801600`
14	Bolt Flange 8X40 Part Number : `957010804000`
