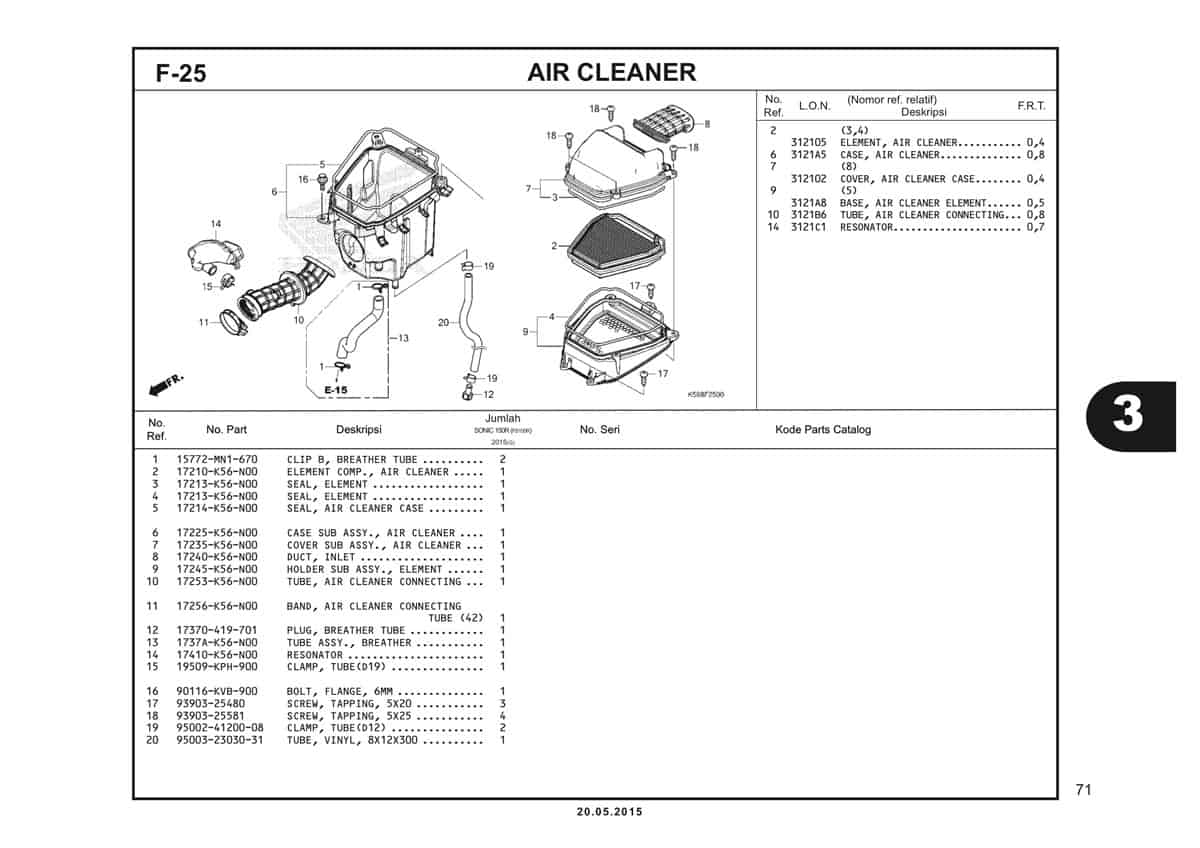

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Clip B Breather Tube | 15772MN1670 |
|
| 2 | Element Comp Air Cleaner | 17210K56N00 |
|
| 3 | Seal Element | 17213K56N00 |
|
| 4 | Element | 17213K56N00 |
|
| 5 | Seal Air Cleaner Case | 17214K56N00 |
|
| 6 | Case-Sub-Assy-Air-Cleaner | 17225K56N00 |
|
| 7 | Cover-Sub-Assy-Air-Cleaner | 17235K56N00 |
|
| 8 | Duct-Inlet | 17240K56N00 |
|
| 9 | Holder-Sub-Assy-Element | 17245K56N00 |
|
| 10 | Tube Air Cleaner Connecting | 17253K56N00 |
|
| 11 | Band Air Cleaner Connecting | 17256K56N00 |
|
| 12 | Pluge Breather Tube | 17370419701 |
|
| 13 | Tube, Breather Assy | 1737AK56N00 |
|
| 14 | Resonator | 17410K56N00 |
|
| 15 | Clamp Tube D 19 | 19509KPH900 |
|
| 16 | Bolt Flange 6mm | 90116KVB900 |
|
| 17 | Screw Tapping 5x20 | 9390325480 |
|
| 18 | Screw , Tapping 5X25 | 9390325580 |
|
| 19 | Clamp D12 Tube | 950024120008 |
|
| 20 | Tube Vinyl 8X12X300 | 950032303031 |
|
