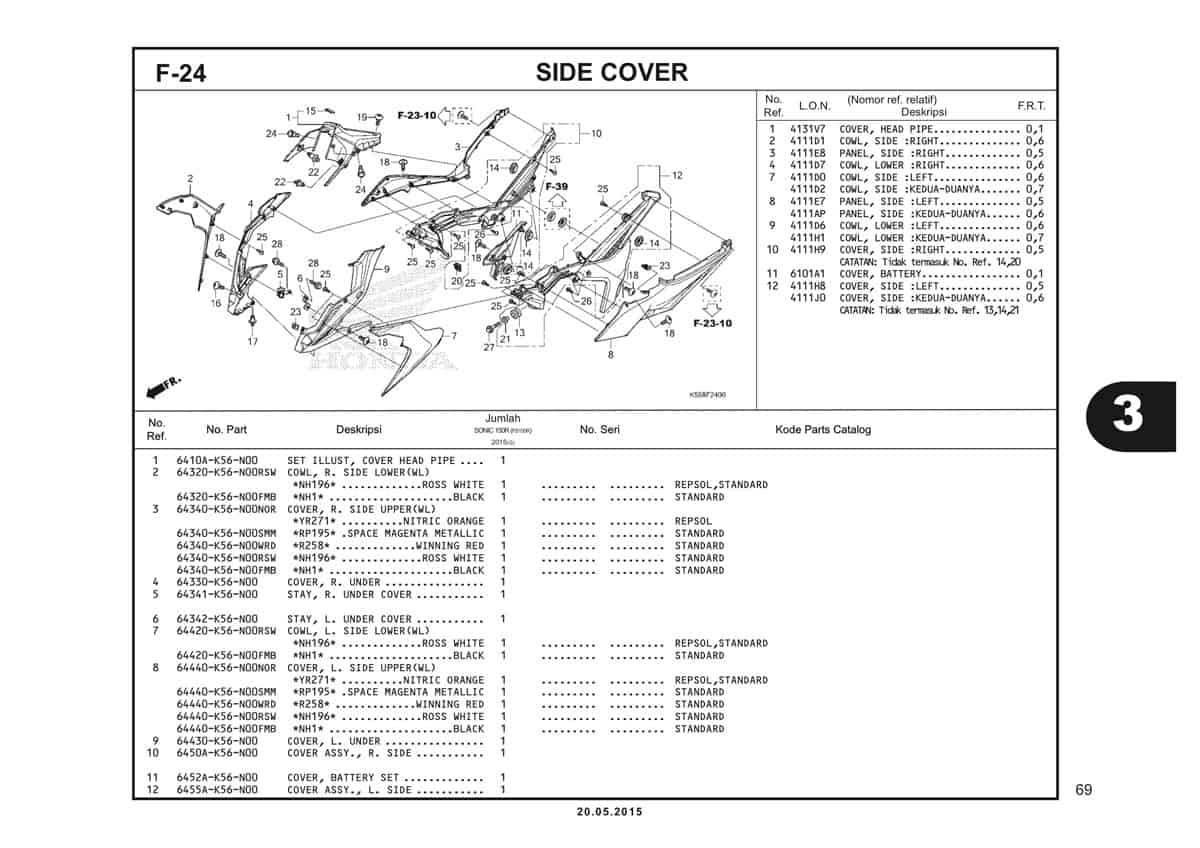

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Set Illust, Cover Head Pipe | 6410AK56N00 |
|
| 2 | Cowl R Side Lower (RO WH) | 64320K56N00RSW |
|
| 2 | Cowl R Side Lower(BK) | 64320K56N00FMB |
|
| 2 | Cowl R Sd Lwr (MT GN BL) | 64320K56N00MGB |
|
| 2 | COWL,R SIDE LOWER (WN RD) | 64320K56N00WRD |
|
| 2 | COWL,R SIDE LOWER (VA RD) | 64320K56N00VRD |
|
| 2 | SET ILS,R SD LWRCOWL TYP 2 | 64305K56NF0ZA |
|
| 2 | SET ILS,R SD LWRCOWL TYP 1 | 64305K56NF0ZB |
|
| 2 | SET ILS,R SD LWRCOWL TYP 1 | 64305K56NG0ZA |
|
| 2 | SET ILS,R SD LWRCOWL TYP 1 | 64305K56NH0ZA |
|
| 3 | Cover R Side Upper Orange | 64340K56N00NOR |
|
| 3 | Cover R Side Upper(SP MG MT) | 64340K56N00SMM |
|
| 3 | Cover R Side Upper (Win Red) | 64340K56N00WRD |
|
| 3 | Cover R Side Upper (RO WH) | 64340K56N00RSW |
|
| 3 | Cover R Side Upper (Bk) | 64340K56N00FMB |
|
| 3 | Cover R Sd Upper(Mt Gn Bl) | 64340K56N00MGB |
|
| 3 | CVR R, SIDE UPPER (VA RD) | 64340K56N00VRD |
|
| 3 | SET ILS,R SD UPPRCVR TYP 2 | 64310K56NF0ZA |
|
| 3 | SET ILS,R SD UPPRCVR TYP 1 | 64310K56NF0ZB |
|
| 3 | SET ILS,R SD UPPRCVR TYP 1 | 64310K56NG0ZA |
|
| 3 | SET ILS,R SD UPPRCVR TYP 1 | 64310K56NH0ZA |
|
| 4 | Cover R Under | 64330K56N00 |
|
| 5 | Stay R Under Cover | 64341K56N00 |
|
| 6 | Stay, L. Under Cover | 64342K56N00 |
|
| 7 | Cowl L Side Lower (RO WH) | 64420K56N00RSW |
|
| 7 | Cowl L Side Lower (BK) | 64420K56N00FMB |
|
| 7 | Cowl L Sd Lwr (MT GN BL) | 64420K56N00MGB |
|
| 7 | COWL,L SIDE LOWER (WN RD) | 64420K56N00WRD |
|
| 7 | COWL,L SIDE LOWER (VA RD) | 64420K56N00VRD |
|
| 7 | SET ILS,L SD LWRCWL TYP 2 | 64405K56NF0ZA |
|
| 7 | SET ILS,L SD LWRCWL TYP 1 | 64405K56NF0ZB |
|
| 7 | SET ILS,L SD LWRCWL TYP 1 | 64405K56NG0ZA |
|
| 7 | SET ILS,L SD LWRCWL TYP 1 | 64405K56NH0ZA |
|
| 8 | Cover L Side Upper Orange | 64440K56N00NOR |
|
| 8 | Cover L Side Upper(Sp Mg Mt) | 64440K56N00SMM |
|
| 8 | Cover L Side Upper (WIN RED) | 64440K56N00WRD |
|
| 8 | Cover L Side Upper(Ro Wh) | 64440K56N00RSW |
|
| 8 | Cover L Side Upper (Bk) | 64440K56N00FMB |
|
| 8 | Cover L Sd Upper (MT GN BL) | 64440K56N00MGB |
|
| 8 | SET ILS,L SD UPPRCVR TYP 2 | 64410K56NF0ZA |
|
| 8 | SET ILS,L SD UPPRCVR TYP 1 | 64410K56NF0ZB |
|
| 8 | SET ILS,L SD UPPRCVR TYP 1 | 64410K56NG0ZA |
|
| 8 | SET ILS,L SD UPPRCVR TYP 1 | 64410K56NH0ZA |
|
| 9 | Cover L Under | 64430K56N00 |
|
| 10 | Cover R. Side Assy | 6450AK56N00 |
|
| 11 | Cover Batt Set | 6452AK56N00 |
|
| 12 | Cover L. Side Assy | 6455AK56N00 |
|

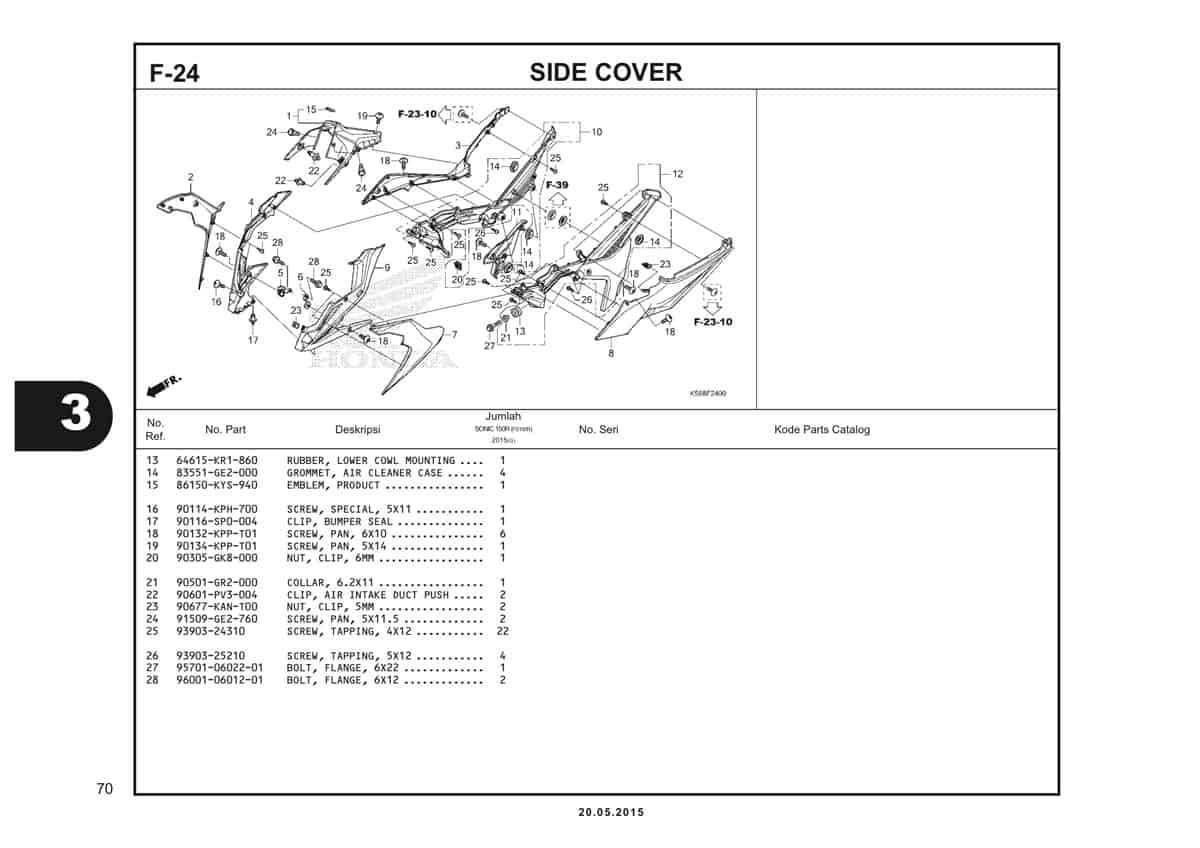

| 13 | Rubber Lower Cowl Mount | 64615KR1860 |
|
| 14 | Grommet A/C | 83551GE2000 |
|
| 15 | Emblem Product | 86150KYS940 |
|
| 16 | Screw, Special, 5X11 | 90114KPH700 |
|
| 17 | Clip Bumper Seal | 90116SP0004 |
|
| 17 | Clip Bumper Seal | 90116K2PV61 |
|
| 18 | Screw,Pan 6X10 | 90132KPPT00 |
|
| 19 | Screw Pan 5X14 | 90134KPPT01 |
|
| 19 | Screw Pan 5X14 | 90134KPPT00 |
|
| 20 | Nut,Clip 6MM | 90305GK8000 |
|
| 21 | Collar ,6.2X11 | 90501GR2000 |
|
| 22 | Push Ckip,Air INT Duct | 90601PV3003 |
|
| 23 | Nut Clip 5MM | 90677KANT00 |
|
| 24 | Screw Pan 5x11.5 | 91509GE2760 |
|
| 25 | Screw Tapping 4x12 | 9390324310 |
|
| 26 | Screw Tapping 5X12 | 9390325210 |
|
| 27 | Bolt Flange 6x22 | 957010602200 |
|
| 28 | Bolt Flange SH 6X12 | 960010601200 |
|
