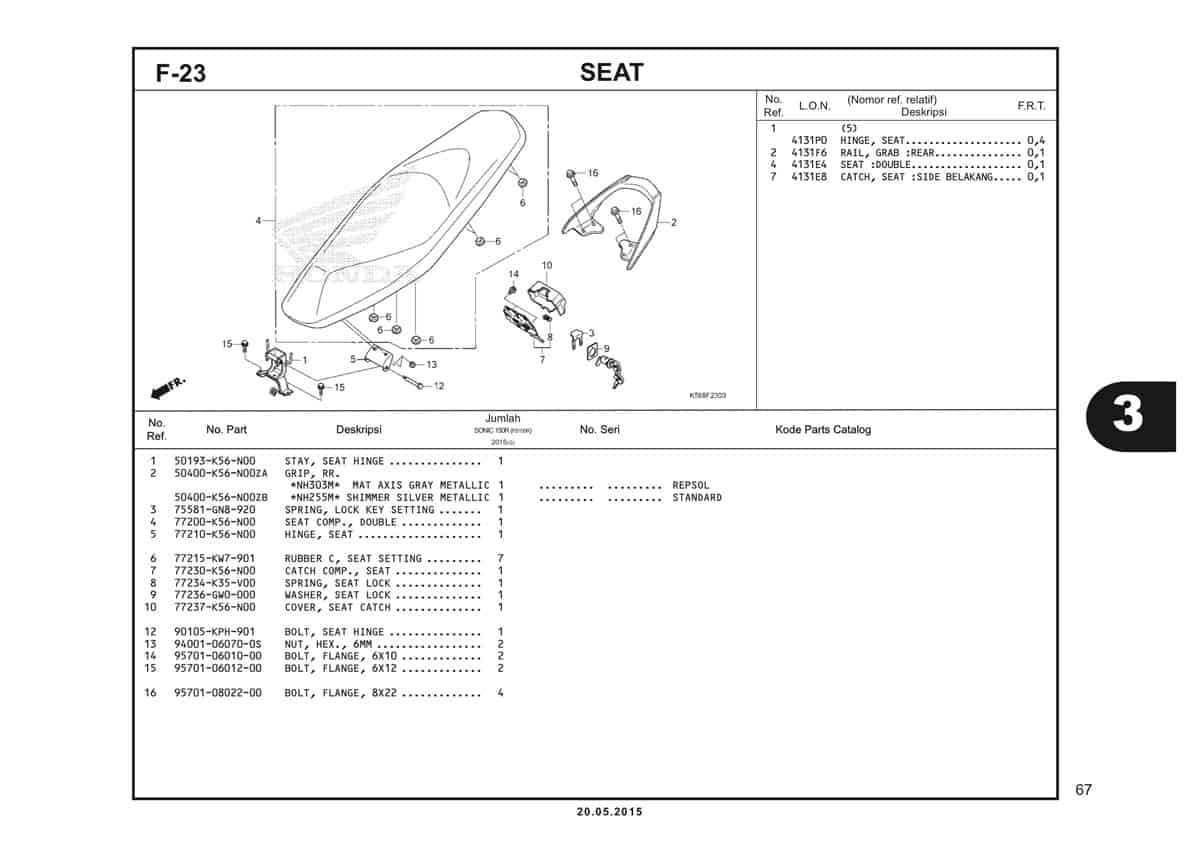

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Stay, Seat Hinge | 50193K56N00 |
|
| 2 | Grip RR Mat Axis Gray | 50400K56N00ZA |
|
| 2 | Grip, RR Shimmer Silver Metallic | 50400K56N00ZB |
|
| 3 | Spring Lock Key | 75581GN8920 |
|
| 4 | Seat Comp Double | 77200K56N00 |
|
| 5 | Hinge, Seat | 77210K56N00 |
|
| 6 | Rubber C Seat Set | 77215KW7901 |
|
| 7 | Catch Comp ., Set | 77230K56N00 |
|
| 8 | Spring Seat Lock | 77234K35V00 |
|
| 9 | Washer Seat Lock | 77236GW0000 |
|
| 10 | Cover Seat Catch | 77237K56N00 |
|
| 12 | Bolt, Seat Hinge | 90105KPH901 |
|
| 13 | Nut Hex 6mm | 94001060700S |
|
| 14 | Bolt Flange 6X10 | 957010601000 |
|
| 15 | Bolt Flange 6x12 | 957010601200 |
|
| 16 | Bolt Flange 8X22 | 957010802200 |
|
