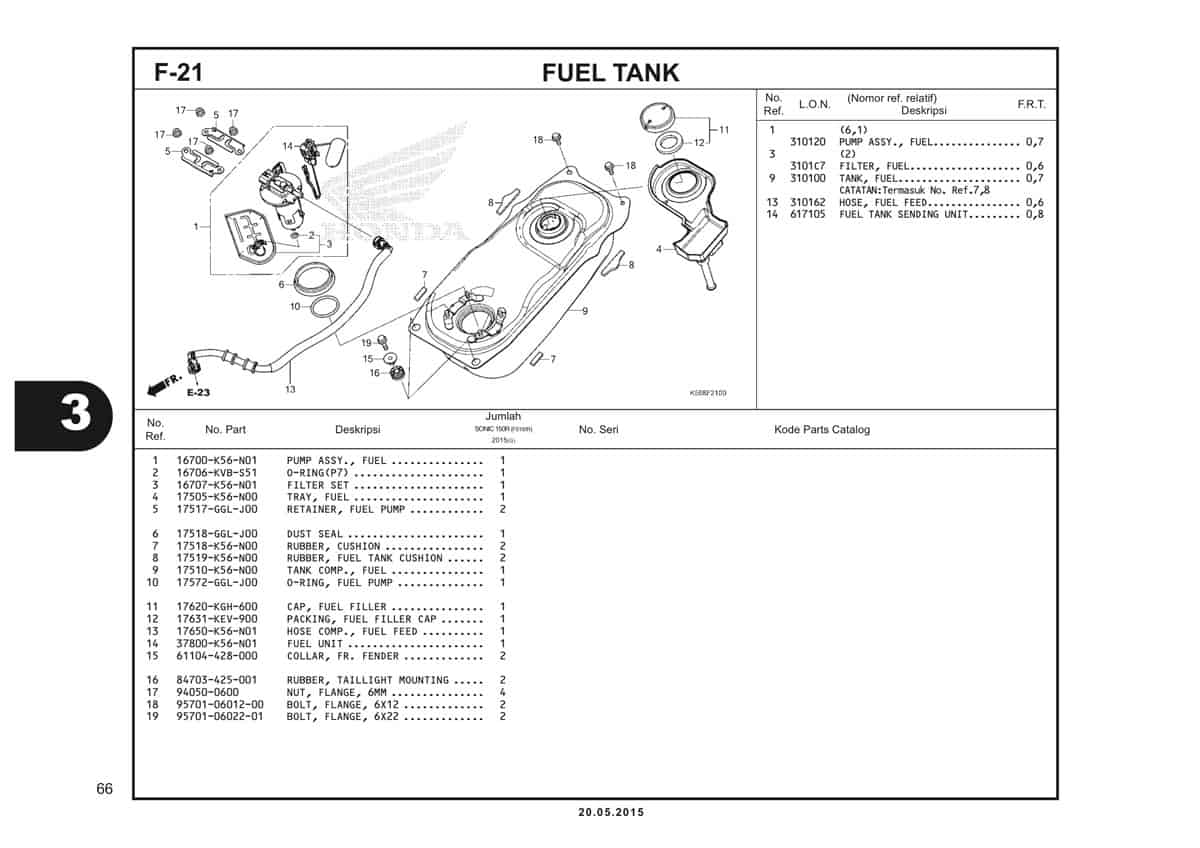

F21 – Fuel Tank – Katalog Honda Sonic 150R K56

#	Informasi Produk	Visual
1	Pump Assy Fuel Part Number : `16700K56N01`
2	O-Ring P7 Part Number : `16706KVBS51`
3	Filter Set Part Number : `16707K56N01`
4	Tray, Fuel Part Number : `17505K56N00`
5	Retainer Fuel Pump Part Number : `17517GGLJ00`
6	Dust Seal Part Number : `17518GGLJ00`
7	Rubber Cushion Part Number : `17518K56N00`
8	Rubber Fuel Tank Cushion Part Number : `17519K56N00`
9	Tank Comp.Fuel NH-1 Part Number : `17510K56N00`
10	O-Ring, Fuel Pump Part Number : `17572GGLJ00`
11	Cap Fuel Filler Part Number : `17620KGH600`
12	Packing Fuel Cap Part Number : `17631KEV900`
13	Hose Comp., Fuel Feed Part Number : `17650K56N01`
14	Fuel Unit Part Number : `37800K56N01`
15	Collar FR Fender Part Number : `61104428000`
16	Rubber, Taillight Mounting Part Number : `84703425000`
17	Nut Flange 6mm Part Number : `9405006000`
18	Bolt Flange 6x12 Part Number : `957010601200`
19	Bolt Flange 6X22 Part Number : `957010602200`
