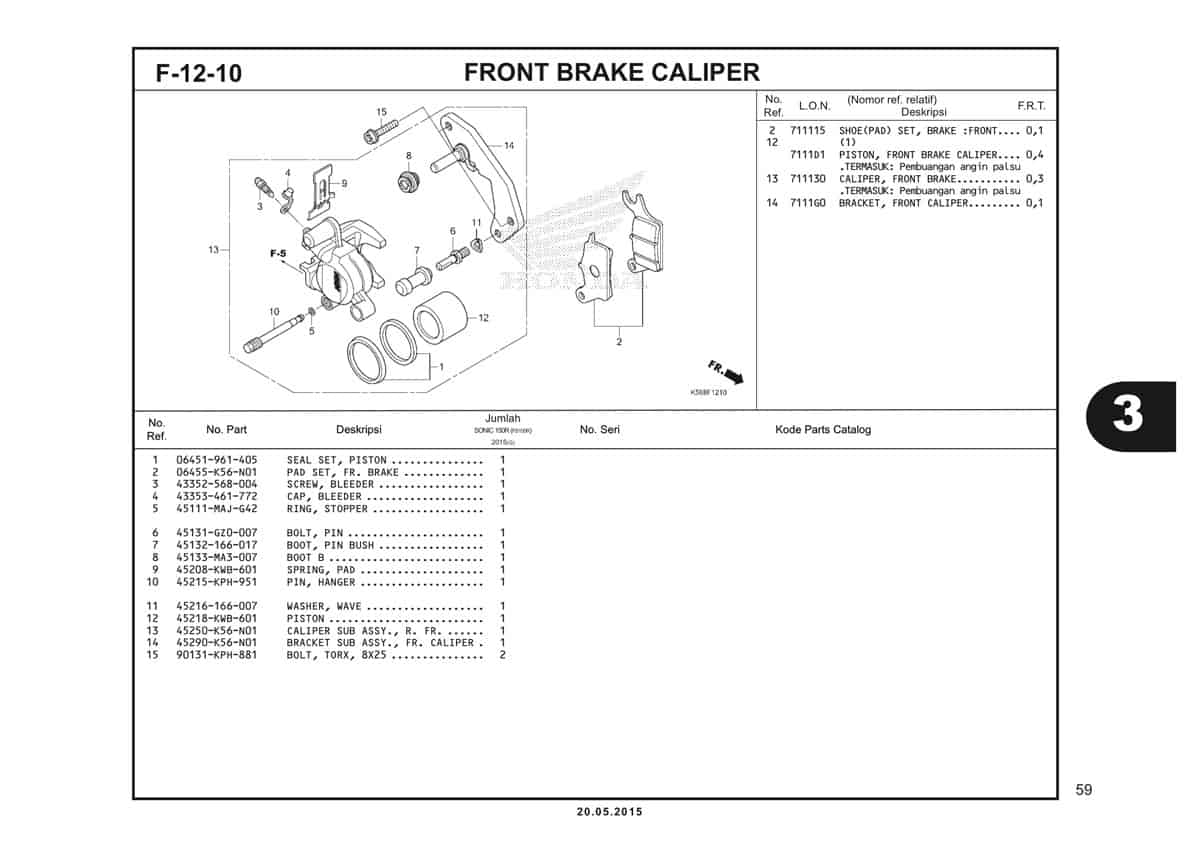

F12 – 10 – Front Brake Caliper – Katalog Honda Sonic 150R K56

#	Informasi Produk	Visual
1	Seal Set Piston Part Number : `06451961405`
2	Pad Set FR Brake Part Number : `06455K56N01`
3	Screw Bleeder Part Number : `43352568004`
4	Cap Bleeder Part Number : `43353461772`
5	Stopper Ring Part Number : `45111MAJG42`
6	Pin Bolt Part Number : `45131GZ0007`
7	Bush Pin Part Number : `45132166016`
8	Boot B Part Number : `45133MA3007`
9	Spring Pad Part Number : `45208KWB601`
10	Pin Hanger Part Number : `45215KPH951`
11	Washer Wave Part Number : `45216166007`
12	Piston Part Number : `45218KWB601`
13	Calliper Sub Assy R FR Part Number : `45250K56N01`
14	Bracket Sub Assy FR Calliper Part Number : `45290K56N01`
15	Bolt Torx 8X25 Part Number : `90131KPH880`
