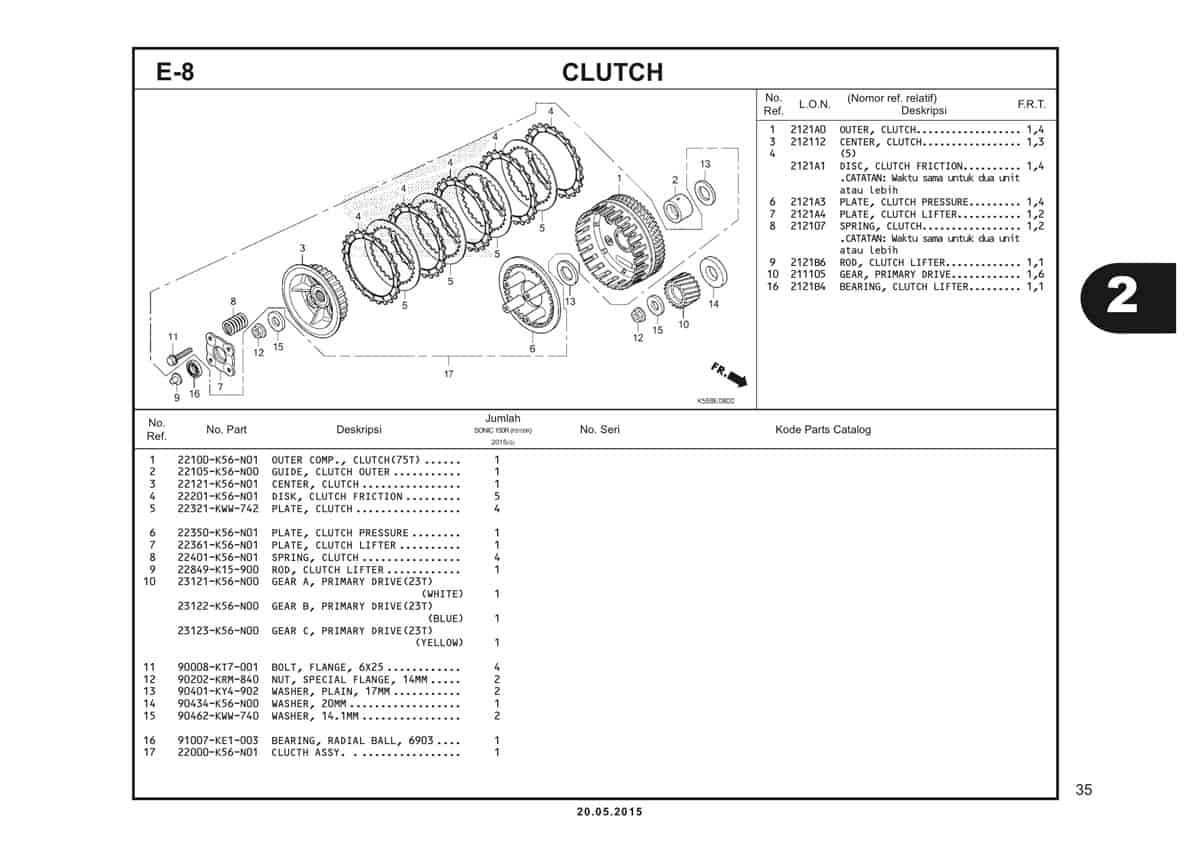

E8 – Clutch – Katalog Honda Sonic 150R K56

#	Informasi Produk	Visual
1	Outer Comp Part Number : `22100K56N01`
2	Guide, Clutch Outer Part Number : `22105k56N00`
3	Center, Clutch Part Number : `22121K56N02`
4	Disk Clutch Friction Part Number : `22201K56N01`
5	Plate Clutch Part Number : `22321KWW742`
6	Plate Clutch Pressure Part Number : `22350K56N02`
6	Plate Clutch Pressure Part Number : `22350K56N03`
7	Plate Clutch Lifter Part Number : `22361K56N01`
8	Spring Clutch Part Number : `22401K56N01`
9	Rod,ClutchLifter Part Number : `22849K15900`
10	Gear A Primary Drive (23T) Part Number : `23121K56N00`
10	Gear B Primary Drive 23T Part Number : `23122K56N00`
10	Gear C Primary Drive (23T) Part Number : `23123K56N00`
11	Bolt Flange 6X25 Part Number : `90008KT7001`
12	Nut Special Flange 14mm Part Number : `90202KRM840`
13	Washer Plain 17MM Part Number : `90401KY4902`
14	Washer, 20MM Part Number : `90434K56N00`
15	Washer 14mm Part Number : `90462KWW740`
16	Bearing radial,Ball Radial 6903 Part Number : `91007KE1003`
17	Clutch Assy Part Number : `22000K56N01`
17	Clutch Assy Part Number : `22000K56N12`
