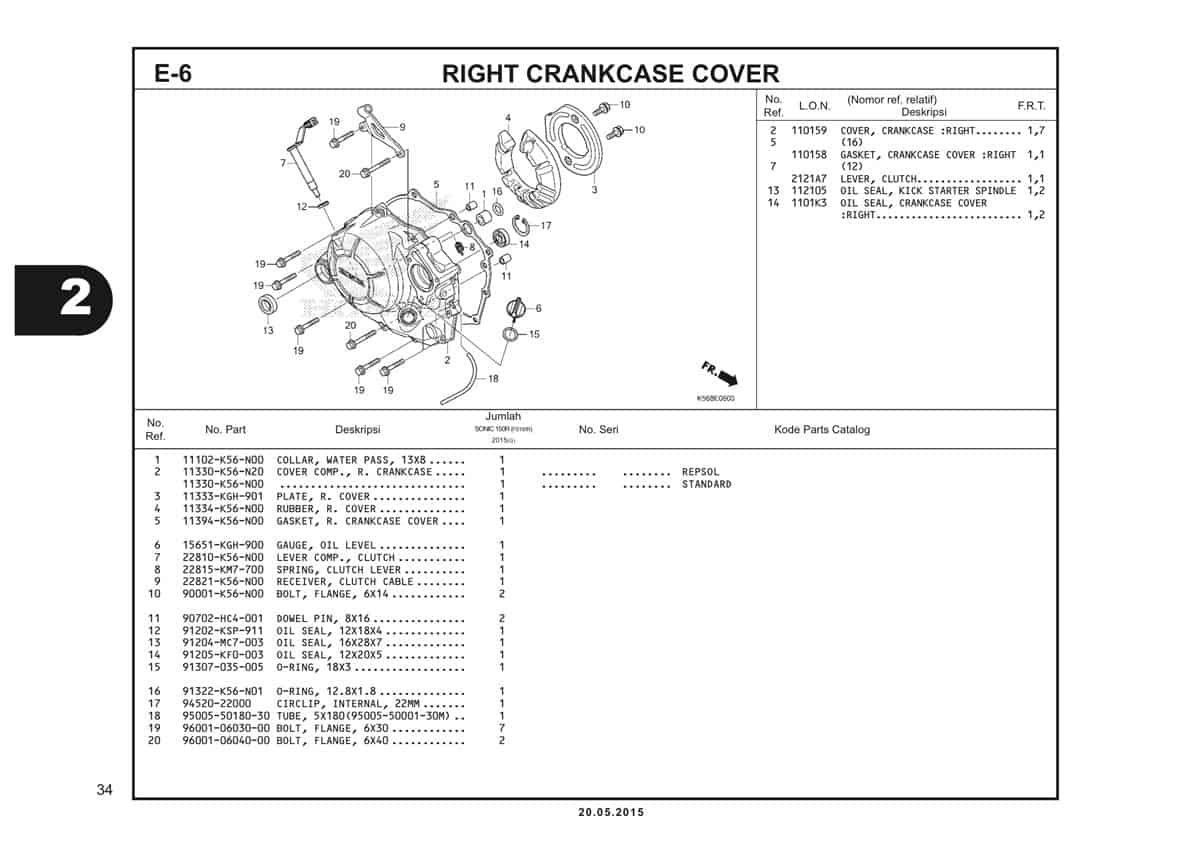

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Collar Water Pass 13x8 | 11102K56N00 |
|
| 2 | Cover Comp R Crankcase | 11330K56N20 |
|
| 2 | Cover Comp R Crankcase | 11330K56N00 |
|
| 2 | Cover Comp R Crankcase | 11330K45N50 |
|
| 2 | Cover Comp R Crankcase | 11330K45N40 |
|
| 3 | Plate,R Cover | 11333KGH900 |
|
| 4 | Rubber R Cover | 11334K56N00 |
|
| 5 | Gasket R Crankcase Cover | 11394K56N00 |
|
| 5 | Gasket R Crankcase Cover | 11394K56V50 |
|
| 6 | Gauge,Oil Level | 15651KGH900 |
|
| 7 | Lever Comp Clutch | 22810K56N00 |
|
| 8 | Spring Cluth | 22815KM7700 |
|
| 9 | Receiver, Clutch Cable | 22821K56N00 |
|
| 10 | Bolt, Flange, 6X14 | 90001K56N00 |
|
| 11 | Pin Dowel 8X16 | 90702HC4001 |
|
| 11 | Pin Dowel 8X16 | 90702HC4000 |
|
| 12 | Oil Seal 12X18X4 | 91202KSP911 |
|
| 13 | Oil Seal, 16X28X7 | 91204MC7003 |
|
| 14 | Oil Seal 12x20x5 | 91205KF0003 |
|
| 15 | O Ring 18x3 | 91307035000 |
|
| 16 | O-Ring, 12.8X1.8 | 91322K56N00 |
|
| 17 | CIirclip In 22 | 9452022000 |
|
| 18 | Tube, 5X180 | 950055018030 |
|
| 19 | Bolt Flange 6X30 | 960010603000 |
|
| 20 | Bolt Flange 6X40 | 960010604000 |
|
