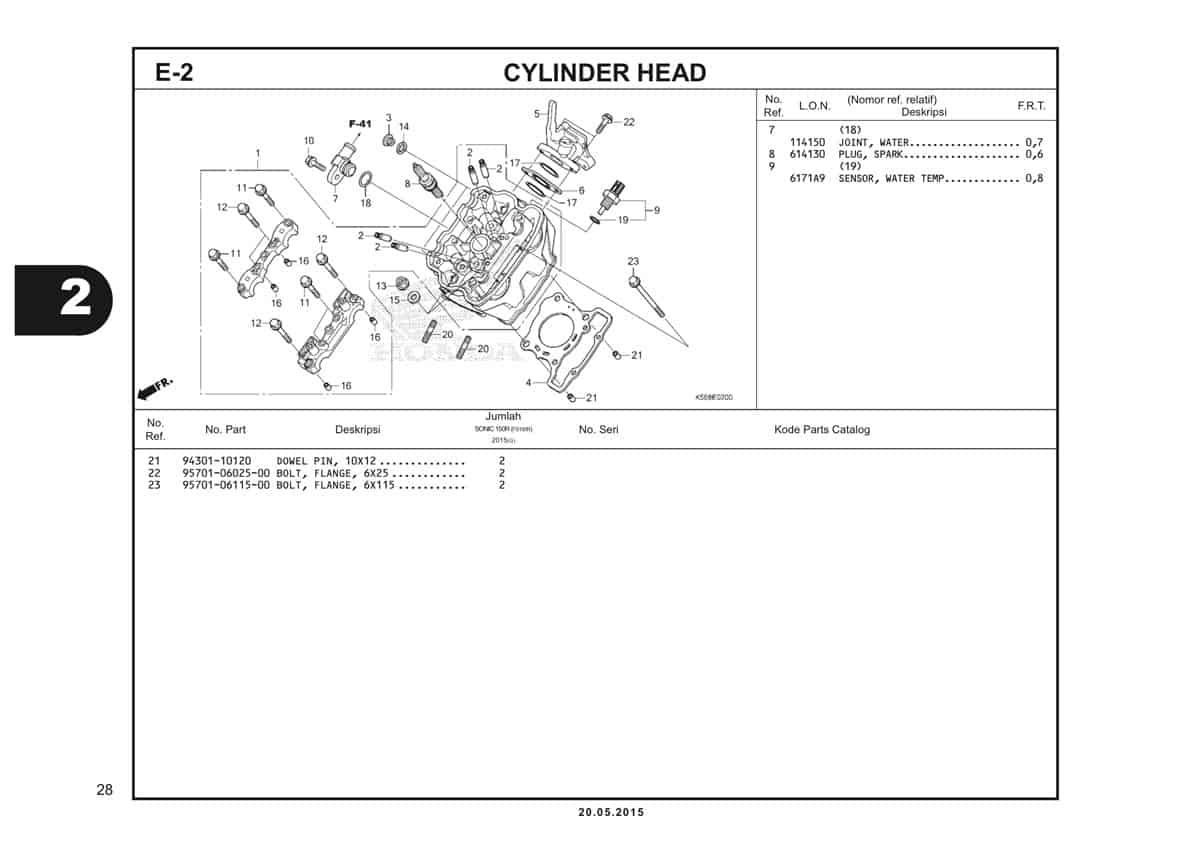

E2 – Cylinder Head – Katalog Honda Sonic 150R K56

#	Informasi Produk	Visual
1	Head Assy Cylinder Part Number : `12010K56N00`
2	Guide Ex Valve Part Number : `12205KYJ305`
3	Bolt Sealing 12MM Part Number : `12207KYJ900`
4	Gasket Cylinder Head(NLK) Part Number : `12251K56N02`
5	Pipe IN Part Number : `17111K56N00`
6	Insulator IN Pipe Part Number : `17119K56N00`
7	Joint Water Part Number : `19064KPP900`
8	Spark Plug MR9C-9N (Exp) Part Number : `31919K25601`
8	Spark Plug U27EPR-N9 (DS) Part Number : `31919K25602`
9	Sensor Assy., Water Temp Part Number : `37870KZR601`
10	Bolt,Flange,NSHF,6X22 Part Number : `90004GHB661`
11	Bolt Flange 6X32 Part Number : `90017K56N00`
12	Bolt Flange 6x40 Part Number : `90019K56N00`
13	Nut Flange,8MM Part Number : `90202KGB611`
13	Nut Flange,8MM Part Number : `90202KGB610`
14	Washer,12.2X17X1.5 Part Number : `90418KYJ900`
15	Washer 8mm Part Number : `90483K15900`
16	Pin Dowel 8x14 Part Number : `90702KRM840`
17	O Ring In Pipe Part Number : `91301K56N00`
18	O Ring 14.8x1.9 Part Number : `91301KV7671`
19	O Ring 9.5x1.5 Part Number : `91307PLC004`
20	Bolt Stud 8X25 Part Number : `92900080250E`
21	Pin Dowel 10X12 Part Number : `9430110120`
22	Bolt Flange 6X25 Part Number : `957010602500`
23	Bolt Flange 6X115 Part Number : `957010611500`
