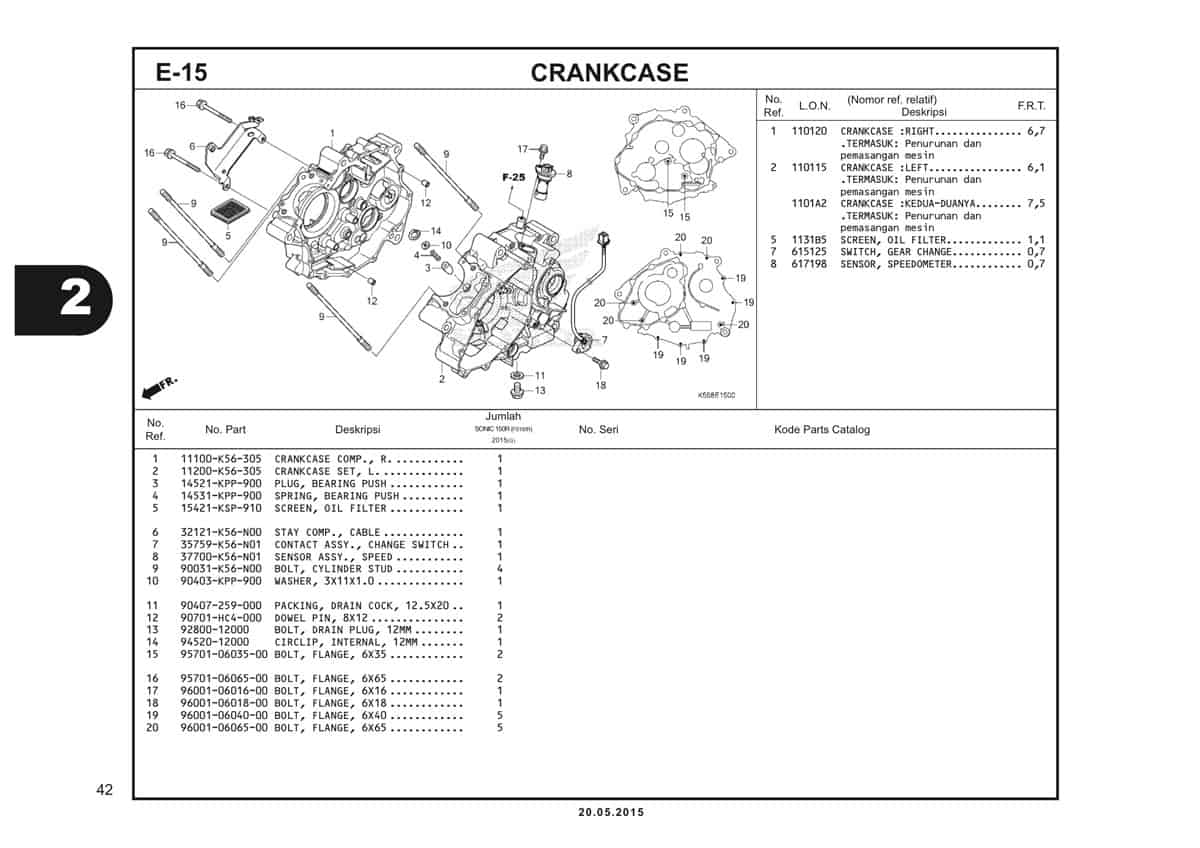

E15 – Crankcase – Katalog Honda Sonic 150R K56

#	Informasi Produk	Visual
1	Crankcase Comp R. Part Number : `11100K56305`
2	Crankcase Set L Part Number : `11200K56305`
3	Plug Bearing Push Part Number : `14521KPP900`
4	Spring Bearing Push Part Number : `14531KPP900`
5	Screen Oil Filter Part Number : `15421KSP910`
6	Stay Comp Cable Part Number : `32121K56N00`
7	Contact Assy Change Switch Part Number : `35759K56N01`
8	Sensor Assy Speed Part Number : `37700K56N01`
9	Bolt Cylinder Stud Part Number : `90031K56N00`
10	Washer 3X11X1.0 Part Number : `90403KPP900`
11	Packing Cock Part Number : `90407259000`
12	Dowel Pin 8X12 Part Number : `90701HC4000`
13	Draincock Part Number : `9280012000`
14	Circlip 12MM Part Number : `9452012000`
15	Bolt Flange 6X35 Part Number : `957010603500`
16	Bolt Flange 6X65 Part Number : `957010606500`
17	Bolt Flange SH 6X16 Part Number : `960010601600`
18	Bolt Flange SH 6X18 Part Number : `960010601800`
19	Bolt Flange 6X40 Part Number : `960010604000`
20	Bolt Flange 6X65 Part Number : `960010606500`
