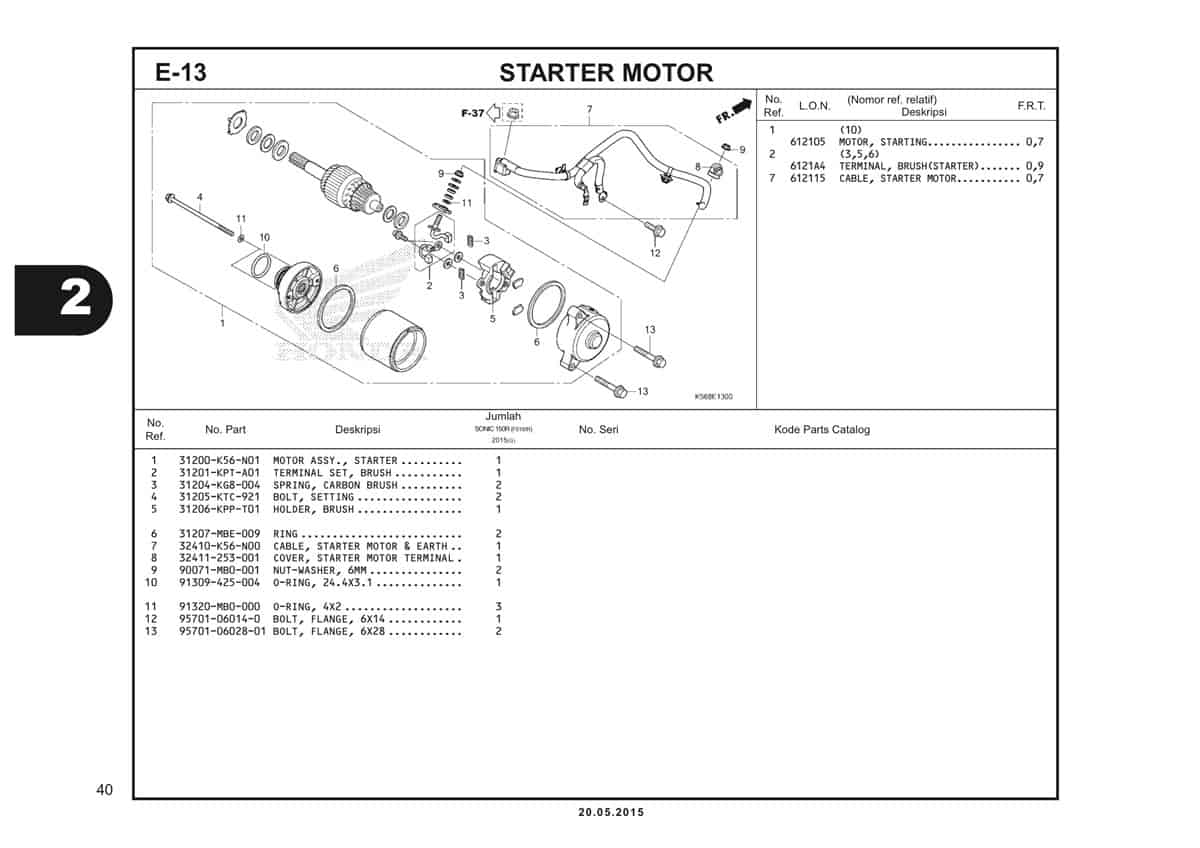

E13 – Starter Motor – Katalog Honda Sonic 150R K56

#	Informasi Produk	Visual
1	Motor Assy Starter Part Number : `31200K56N01`
2	Brush Terminal Set Part Number : `31201KPTA01`
3	Spring Brush Part Number : `31204KG8004`
4	Bolt Setting Part Number : `31205KTC921`
5	Brush Holder Part Number : `31206KPPT01`
6	Ring Part Number : `31207MBE008`
7	Cable Starter Motor & Earth Part Number : `32410K56N00`
8	Cover Starting Motor Part Number : `32411253000`
9	Nut-Washer 6MM Part Number : `90071MB0000`
10	O Ring (24.4X3.1) Part Number : `91309425004`
11	O Ring Part Number : `91320MB0000`
12	Bolt Flange 6X14 Part Number : `957010601400`
13	Bolt Flange 6X28 Part Number : `957010602800`
