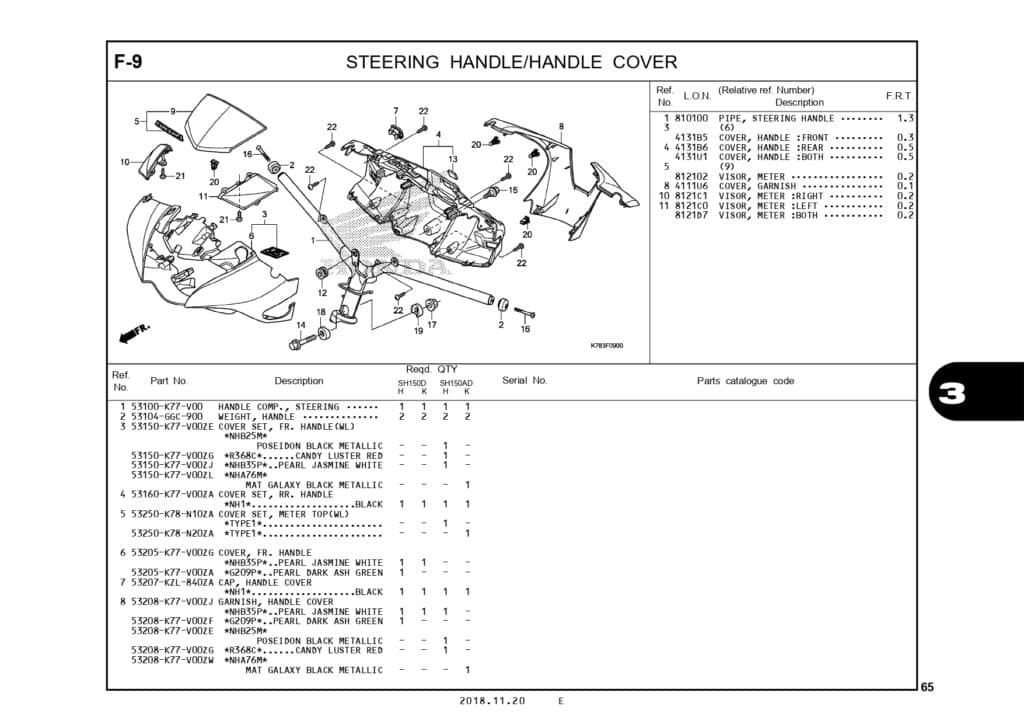

F-9 Steering Handle Handle Cover – Katalog Suku Cadang Honda SH150i

Gambar Bagian

Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 HANDLE COMP STRG 53100K77V00 -
2 WEIGHT HANDLE 53104GGC900 -
3 SET ILLUST HANDLE COVER 53150K77V00ZE -
3 SET ILLUST HANDLE COVER 53150K77V00ZG -
3 SET ILLUST HANDLE COVER 53150K77V00ZJ -
3 SET ILLUST HANDLE 53150K77V00ZL -
4 SET ILLUST HANDLED 53160K77V00ZA -
5 SET ILLUST METER 53250K78N10ZA -
5 SET ILLUS METER 53250K78N20ZA -
6 COVER HANDLE FR 53205K77V00ZG -
6 53205K77V00ZA 53205K77V00ZA -
7 CAP HANDLE COVER 53207KZL840ZA -
8 GARNISH HANDLE 53208K77V00ZJ -
8 53208K77V00ZF 53208K77V00ZF -
8 GARNISH HANDLE 53208K77V00ZE -
8 GARNISH HANDLE 53208K77V00ZG -
8 GARNISH HANDLE 53208K77V00ZW -
9 COVER METER TOP 53209K77V00ZA -
9 53209K77V00ZD 53209K77V00ZD -
10 COVER R FR CAP 53211K77V00ZA -
11 COVER L FR CAP 53212K77V00ZA -
12 RUBBER,HEADLIGHT 61304415000 RUBBER,HEADLIGHT
13 EMBLEM,PRODUCT 86150KYS940 EMBLEM,PRODUCT
14 BOLT FLANGE 10X50 90106GN5900 BOLT FLANGE 10X50
15 BOLT FLANGE 6MM 90111162000 BOLT FLANGE 6MM
16 SCREW OVAL 6X45 90191KWB600 SCREW OVAL 6X45
17 NUT U10MM 90304KGH901 NUT U10MM
18 COLLAR A HNDL SET 90501GBY910 -
19 COLLAR B HNDL SET 90502GBY910 -
20 CLIP SNAP FITTING 90601SJA003 -
21 SCREW TAPPING 4X12 9390334380 SCREW TAPPING 4X12
22 SCREW TAPPING 4X16 9390334480 SCREW TAPPING 4X16
