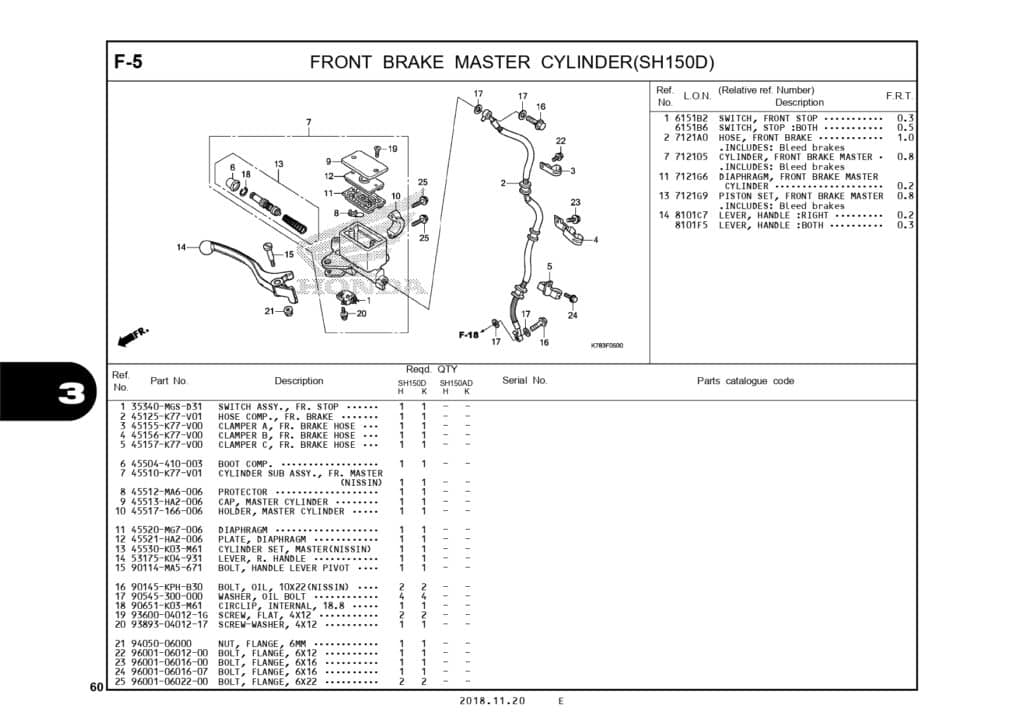

F-5 Front Brake Master Cylinder SH150D – Katalog Suku Cadang Honda SH150i

#	Informasi Produk	Visual
1	SWITCH FR STOP ASSY Part Number : `35340MGSD31`
2	45125K77V01 Part Number : `45125K77V01`
3	45155K77V00 Part Number : `45155K77V00`
4	45156K77V00 Part Number : `45156K77V00`
5	45157K77V00 Part Number : `45157K77V00`
6	BOOT COMP Part Number : `45504410003`
7	SUB ASSY FR M/C Part Number : `45510K77V01`
8	PROTECTOR Part Number : `45512MA6006`
9	CAP,MASTER CYL Part Number : `45513HA2006`
10	HOLDER MASTER CYL Part Number : `45517166006`
11	DIAPHRAGM Part Number : `45520MG7006`
12	PLATE,DIAPHRAGM Part Number : `45521HA2006`
13	CYLINDER SET, MASTER Part Number : `45530K03M61`
14	LEVER R STRG HNDL Part Number : `53175K04931`
15	BOLT, HANDLE LEVER PIVOT Part Number : `90114MA5671`
16	BOLT OIL, 10X22 (NISSIN) Part Number : `90145KPHB30`
17	WASHER OIL BOLT Part Number : `90545300000`
18	CIRCLIP, INTERNAL, 18.8 Part Number : `90651K03M61`
19	SCREW FLAT, 4X12 Part Number : `93600040121G`
20	SCREW WASHER 4X12 Part Number : `938930401217`
21	NUT,FLANGE 6MM Part Number : `9405006000`
22	BOLT FLANGE SH 6X12 Part Number : `960010601200`
23	BOLT FLANGE SH 6X16 Part Number : `960010601600`
24	BOLT,FLANGE,6X16 Part Number : `960010601607`
25	BOLT FLANGE 6X22 Part Number : `960010602200`
