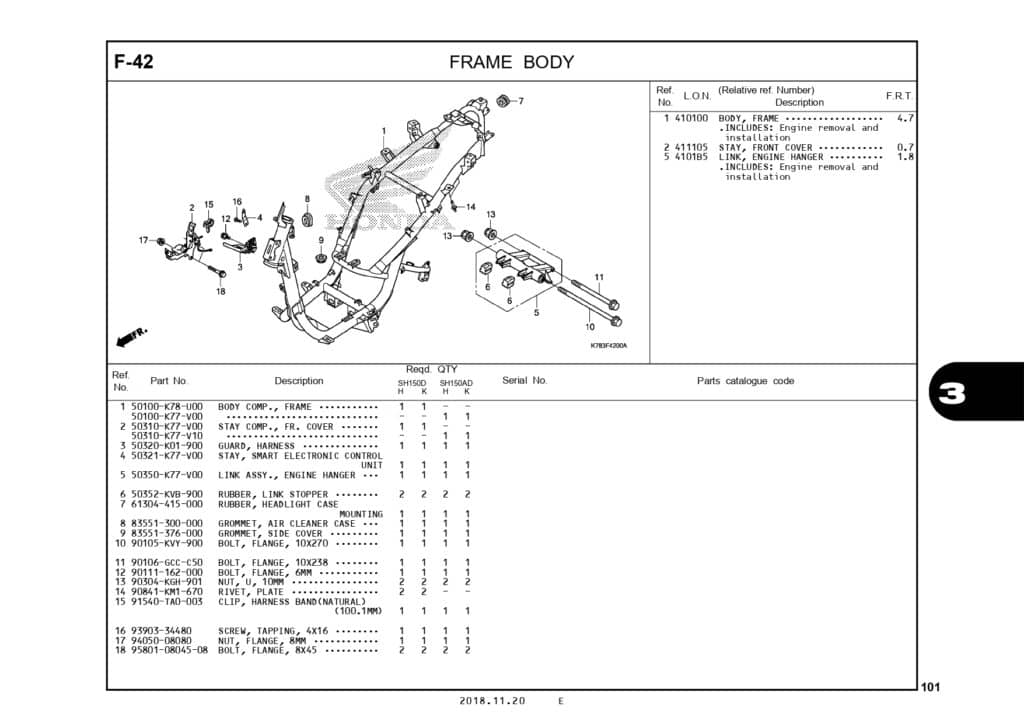

F-42 Frame Body – Katalog Suku Cadang Honda SH150i

#	Informasi Produk	Visual
1	50100K78U00 Part Number : `50100K78U00`
1	BODY COMP FRAME Part Number : `50100K77V00`
2	50310K77V00 Part Number : `50310K77V00`
2	STAY COMP FR Part Number : `50310K77V10`
3	GUARD HARNESS Part Number : `50320K01900`
4	STAY SMART ECU Part Number : `50321K77V00`
5	LINK ASSY ENG HAN Part Number : `50350K77V00`
6	RUBBER LINK STOPPER Part Number : `50352KVB900`
7	RUBBER,HEADLIGHT Part Number : `61304415000`
8	CASE GROMMET Part Number : `83551300000`
9	GROMMET,SIDE COVR Part Number : `83551376000`
10	BOLT FLANGE 10X270 Part Number : `90105KVY900`
11	BOLT, FLANGE, 10X238 Part Number : `90106GCCC50`
12	BOLT FLANGE 6MM Part Number : `90111162000`
13	NUT U10MM Part Number : `90304KGH901`
14	90841KM1670 Part Number : `90841KM1670`
15	CLIP BAND HARN(U D.18) Part Number : `91540TA0003`
16	SCREW TAPPING 4X16 Part Number : `9390334480`
17	NUT FLANGE 8 MM Part Number : `9405008080`
18	BOLT, FLANGE, 8X45 Part Number : `958010804508`
