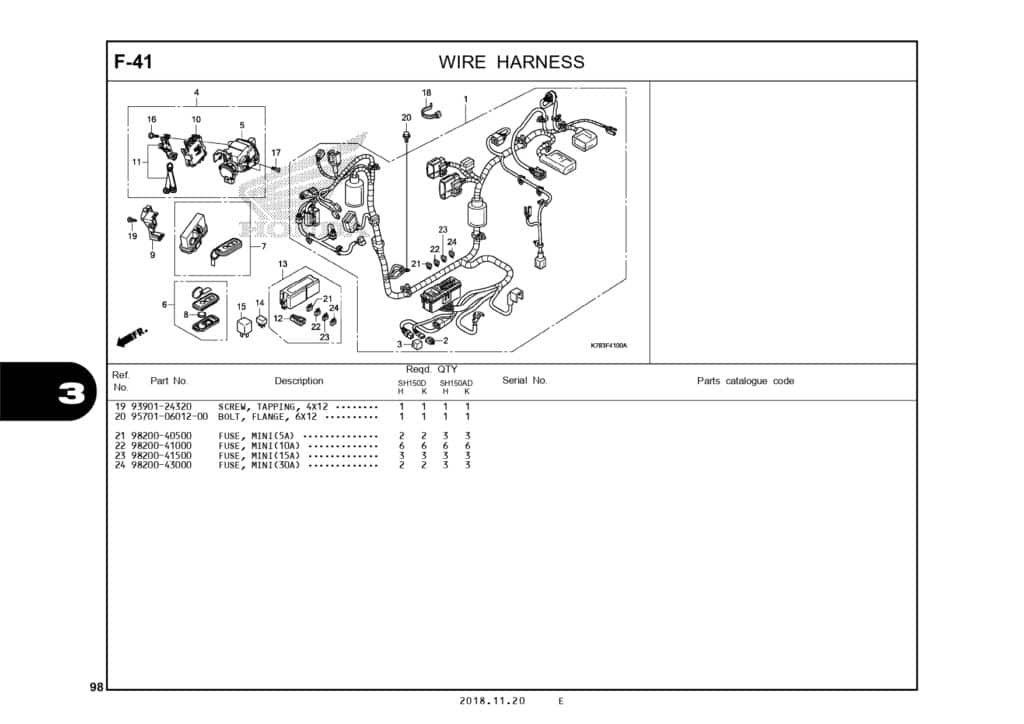

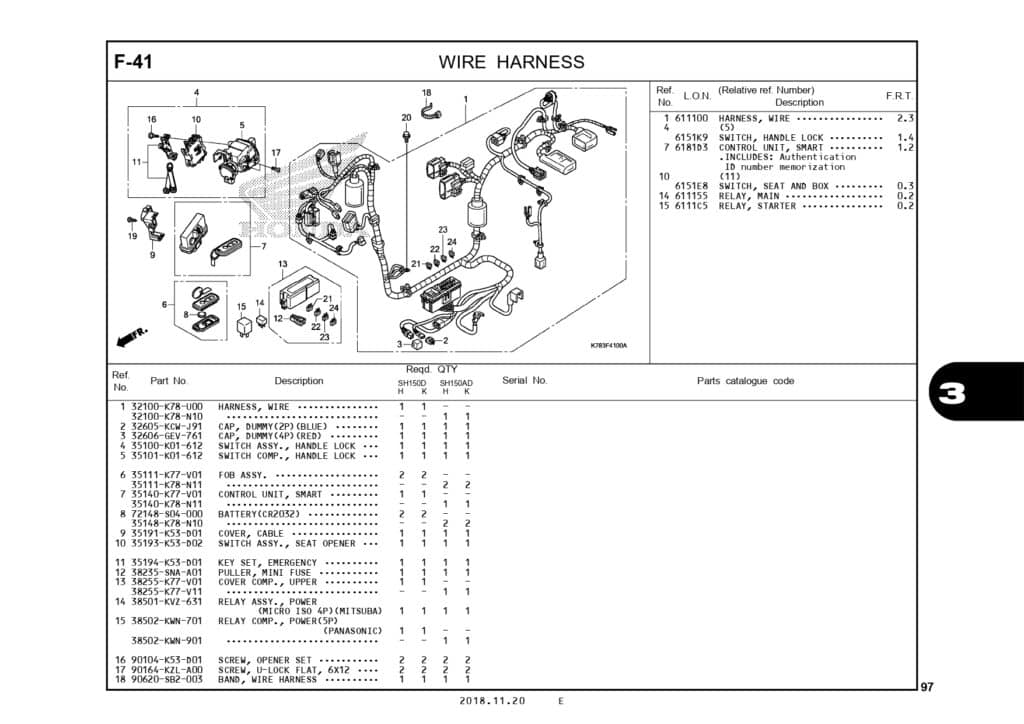

F-41 Wire Harness – Katalog Suku Cadang Honda SH150i

#	Informasi Produk	Visual
1	32100K78U00 Part Number : `32100K78U00`
1	HARNESS WIRE Part Number : `32100K78N10`
2	DUMMY WPC 2P 090 Part Number : `32605KCWJ91`
3	DUMMY,WPC 4P 090 M (RED) Part Number : `32606GEV761`
4	SWITCH ASSY HNDL Part Number : `35100K01612`
5	SWITCH COMP HNDL Part Number : `35101K01612`
6	35111K77V01 Part Number : `35111K77V01`
6	FOB ASSY Part Number : `35111K78N11`
7	35140K77V01 Part Number : `35140K77V01`
7	CONTROL UNIT SMAR Part Number : `35140K78N11`
8	35148K78N10 Part Number : `72148S04000`
8	BATTERY Part Number : `35148K78N10`
9	COVER CABLE Part Number : `35191K53D01`
10	SW ASSY SEAT OPEN Part Number : `35193K53D02`
11	SET EMERGENCY KEY Part Number : `35194K53D01`
12	PULLER MINI FUSE Part Number : `38235SNAA01`
13	38255K77V01 Part Number : `38255K77V01`
13	COVER COMP UPPER Part Number : `38255K77V11`
14	RELAY COMP,MICROISO LOW HIGHT Part Number : `38501KVZ631`
15	38502KWN701 Part Number : `38502KWN701`
15	RELAY COMP,POWER Part Number : `38502KWN901`
16	SCREW OPENER SET Part Number : `90104K53D01`
17	SCREW U-LOCK FLAT 6X12 Part Number : `90164KZLA00`
18	BAND, WIRE HARNESS Part Number : `90620SB2003`
19	SCREW,TAPP 4X12 Part Number : `9390124320`
20	BOLT FLANGE 6X12 Part Number : `957010601200`
21	FUSE, MINI(5A) Part Number : `9820040500`
22	FUSE, MINI(10A) Part Number : `9820041000`
23	FUSE F (15A) Part Number : `9820041500`
24	FUSE 30A (MINI) Part Number : `9820043000`
