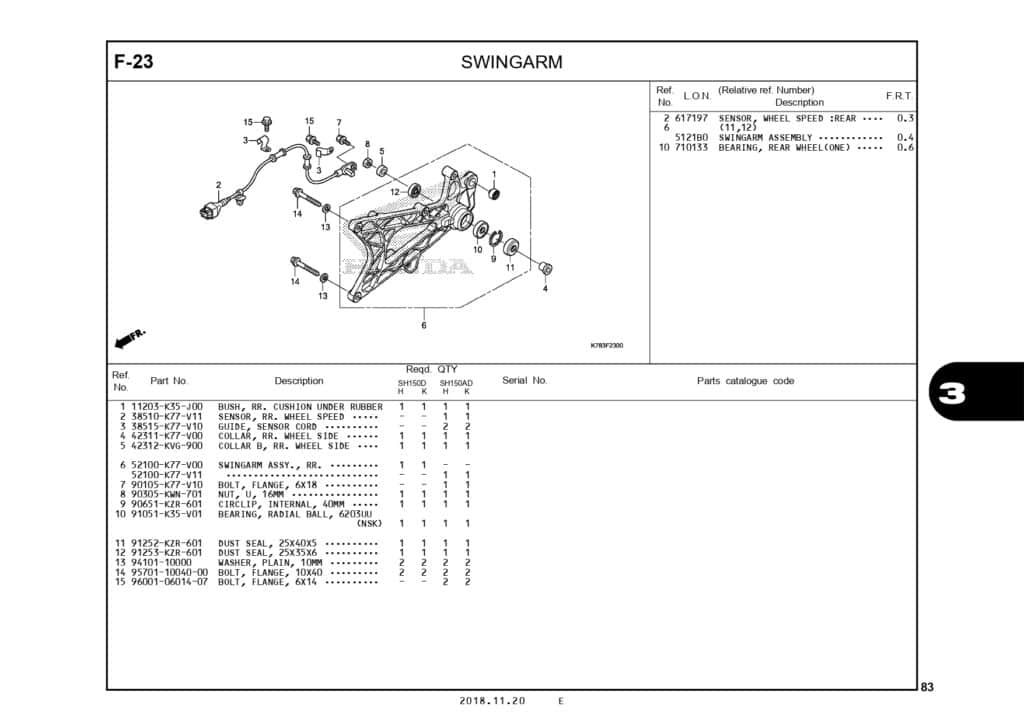

F-23 Swingarm – Katalog Suku Cadang Honda SH150i

#	Informasi Produk	Visual
1	11203KVB901 Part Number : `11203K35J00`
2	SENSOR WHEEL SPD Part Number : `38510K77V11`
3	GUIDE SENSOR CORDR Part Number : `38515K77V10`
4	COLLAR RR WHEEL S Part Number : `42311K77V00`
5	COLLAR B, RR WHEEL SIDE Part Number : `42312KVG900`
6	52100K77V00 Part Number : `52100K77V00`
6	SWINGARM ASSY Part Number : `52100K77V11`
7	BOLT FLANGE NSHF Part Number : `90105K77V10`
8	NUT U 16MM Part Number : `90305KWN701`
9	CIRCLIP,IN 40 Part Number : `90651KZR601`
10	BEARING RADIAL BALL 6203UU LBL Part Number : `91051K35V01`
11	DUST SEAL, 25X40X5 Part Number : `91252KZR601`
12	DUST SEAL, 25X35X6 Part Number : `91253KZR601`
13	WASHER PLAIN 10MM Part Number : `9410110000`
14	BOLT,FLANGE 10X40 Part Number : `957011004000`
15	BOLT,FLANGE,SH 6X14 Part Number : `960010601407`
