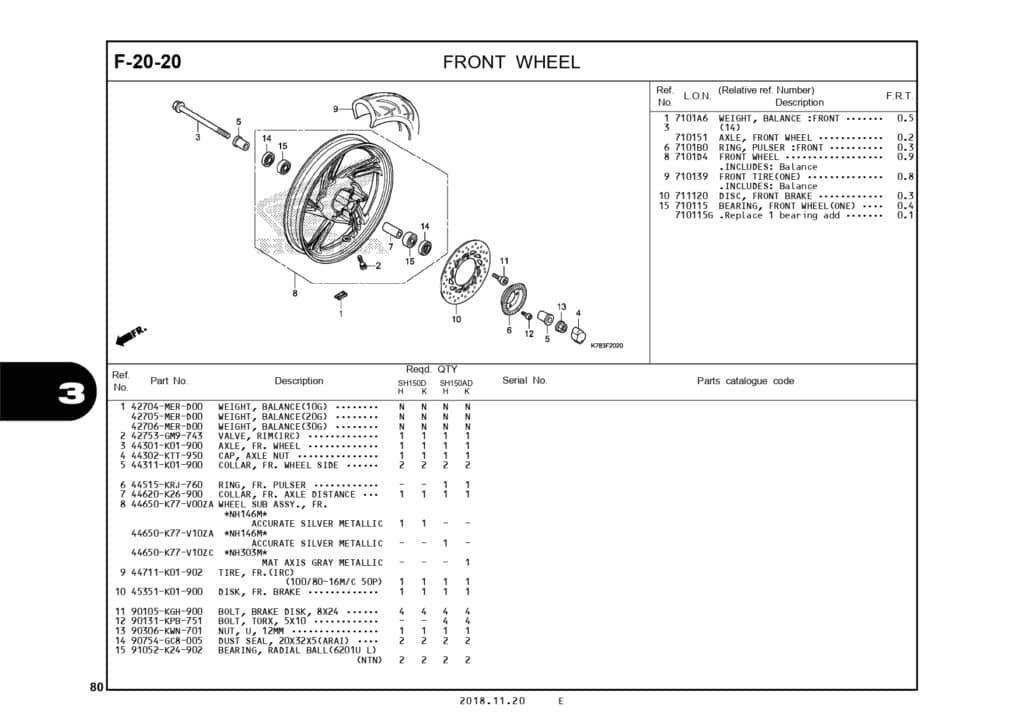

F-20-20 Front Wheel – Katalog Suku Cadang Honda SH150i
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
WEIGHT, BALANCE(10G) |
42704MERD00 |
|
| 1 |
WEIGHT, BALANCE(20G) |
42705MERD00 |
|
| 1 |
WEIGHT, BALANCE(30G) |
42706MERD00 |
|
| 2 |
VALVE,RIM (INOUE) |
42753GM9743 |
|
| 3 |
AXLE FR WHEEL |
44301K01900 |
-
|
| 4 |
CAP FR AXLE NUT |
44302KTT950 |
-
|
| 5 |
COLLAR FR WHEEL SD |
44311K01900 |
-
|
| 6 |
RING FR PULSER |
44515KRJ760 |
-
|
| 7 |
COLLAR FR AXLE |
44620K26900 |
-
|
| 8 |
44650K77V00ZA |
44650K77V00ZA |
-
|
| 8 |
44601K77V01 |
44650K77V10ZA |
-
|
| 8 |
WHEEL SUB ASSY FR |
44650K77V10ZC |
-
|
| 9 |
TIRE FR(IRC) |
44711K01902 |
-
|
| 10 |
DISK, FR. BRAKE |
45351K01900 |
-
|
| 11 |
BOLT BRK DISK 8X24 |
90105KGH900 |
|
| 12 |
BOLT,TORX 5X10 |
90131KPB751 |
|
| 13 |
NUT U 12MM |
90306KWN701 |
-
|
| 14 |
SEAL DUST 20X32X5 |
90754GC8005 |
-
|
| 15 |
91052K24903 |
91052K24902 |
|
