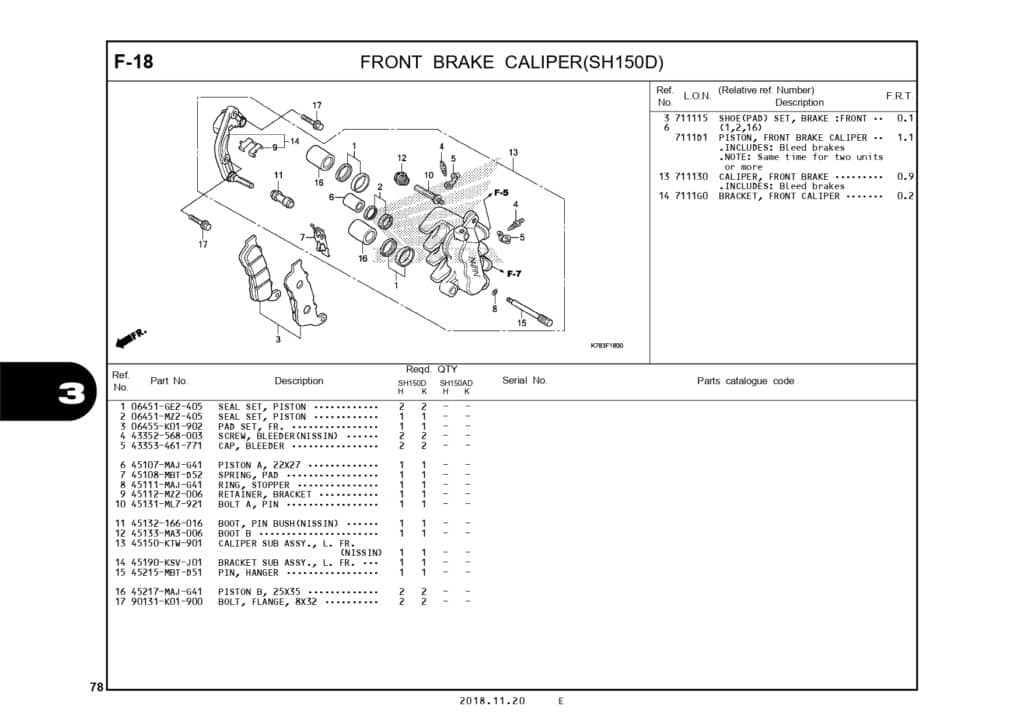

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SEALSET,PISTON | 06451GE2405 |
|
| 1 | SEAL SET,PISTON | 06451MZ2405 |
|
| 2 | 06455K01902 | 06455K01902 | - |
| 3 | SCREW,BLEEDER | 43352568003 |
|
| 4 | CAP,BLEEDER | 43353461771 |
|
| 5 | PISTON,22 A | 45107MAJG41 | - |
| 6 | PAD SPRING | 45108MBTD52 | - |
| 7 | O-RING,2.5X1.5 | 45111MAJG41 |
|
| 8 | REATAINER,BRKT | 45112MZ2006 | - |
| 9 | BOLT A,PIN | 45131ML7921 |
|
| 10 | BUSH PIN | 45132166016 |
|
| 11 | BOOT B,PIN | 45133MA3006 |
|
| 12 | 45150KTW901 | 45150KTW901 | - |
| 13 | 45190KSVJ01 | 45190KSVJ01 | - |
| 14 | PIN,HANGER | 45215MBTD51 | - |
| 15 | 45217MAJG41 | 45217MAJG41 | - |
| 16 | BOLT FLANGE 8X32 | 90131K01900 |
|
