E-20 Crankshaft Piston – Katalog Suku Cadang Honda SH150i

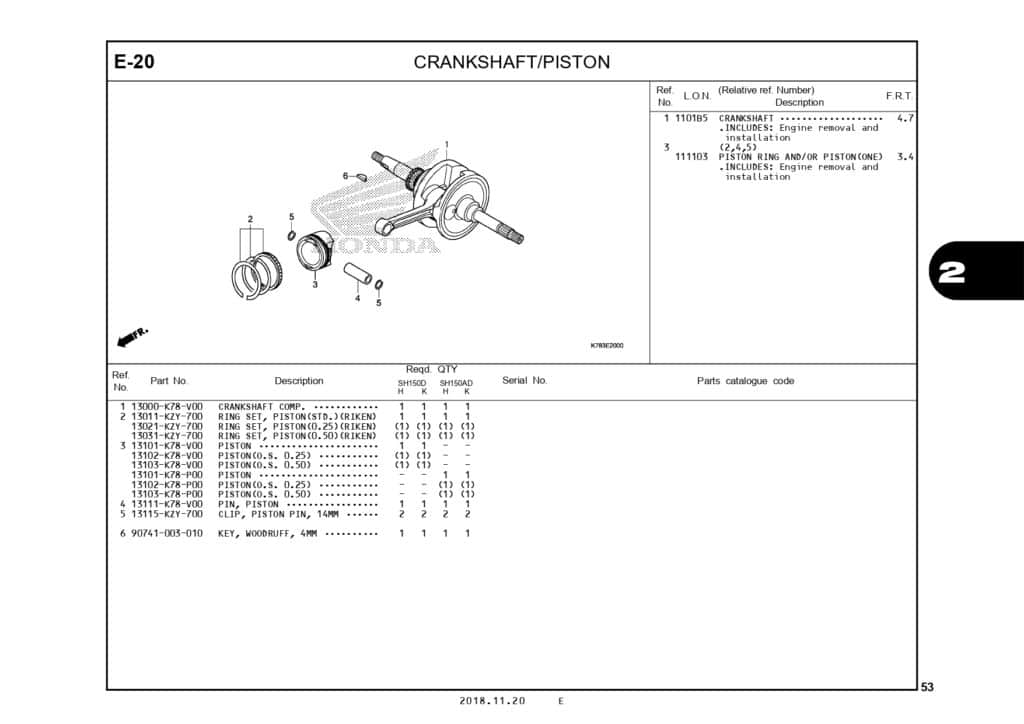

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 3000K78V00 3000K78V00 -
2 RING SET, PISTON(STD) 13011KZY700 -
2 RING SET, PISTON(0.25) 13021KZY700 -
2 RING SET, PISTON(0.50) 13031KZY700 -
3 PISTON LBL 13101K78V00 -
3 PISTON OS 0.25 LBL 13102K78V00 -
3 PISTON OS 0.50 LBL 13103K78V00 -
3 PISTON STD 13101K78P00 -
3 PISTON OS 0.25 13102K78P00 -
3 PISTON OS 0.50 13103K78P00 -
4 PIN PISTON 13111K78V00 PIN PISTON
5 CLIP, PISTON PIN, 14MM 13115KZY700 CLIP, PISTON PIN, 14MM
6 KEYWOODRUFF 4MM 90741003010 KEYWOODRUFF 4MM
