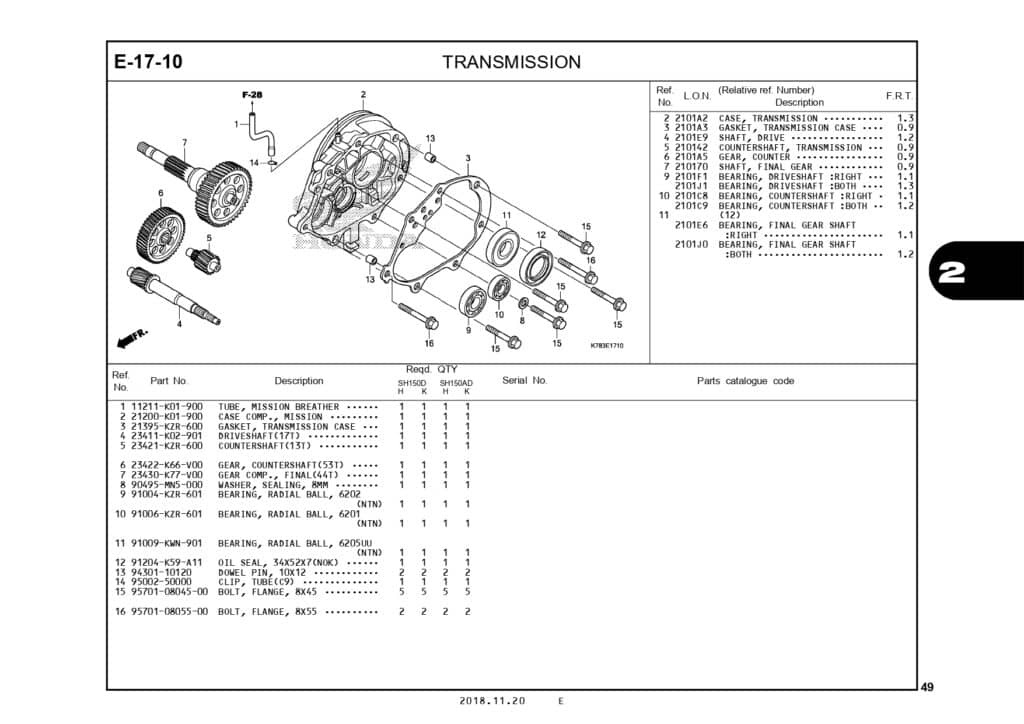

E-17-10 Transmission – Katalog Suku Cadang Honda SH150i

#	Informasi Produk	Visual
1	TUBE MISSION Part Number : `11211K01900`
2	CASE COMP MISSION Part Number : `21200K01900`
3	GASKET, TRANSMISSION CASE Part Number : `21395KZR600`
4	SHAFT DRIVE Part Number : `23411K02901`
5	COUNTERSHAFT(13T) Part Number : `23421KZR600`
6	GEAR COUNTER Part Number : `23422K66V00`
7	GEAR COMP FINAL Part Number : `23430K77V00`
8	WASHER,SEALING 8MM Part Number : `90495MN5000`
9	BRG,BALL RADIAL 6202 Part Number : `91004KZR601`
10	BEARING RADIAL BALL 6201 Part Number : `91006KZR601`
11	91006KAB004 Part Number : `91009KWN901`
12	OIL SEAL, 34X52X7 Part Number : `91204K59A11`
13	PIN DOWEL 10X12 Part Number : `9430110120`
14	CLIP,TUBE 5.0 MM Part Number : `9500250000`
15	BOLT FLANGE 8X45 Part Number : `957010804500`
16	BOLT,FLANGE,8X55 Part Number : `957010805500`
