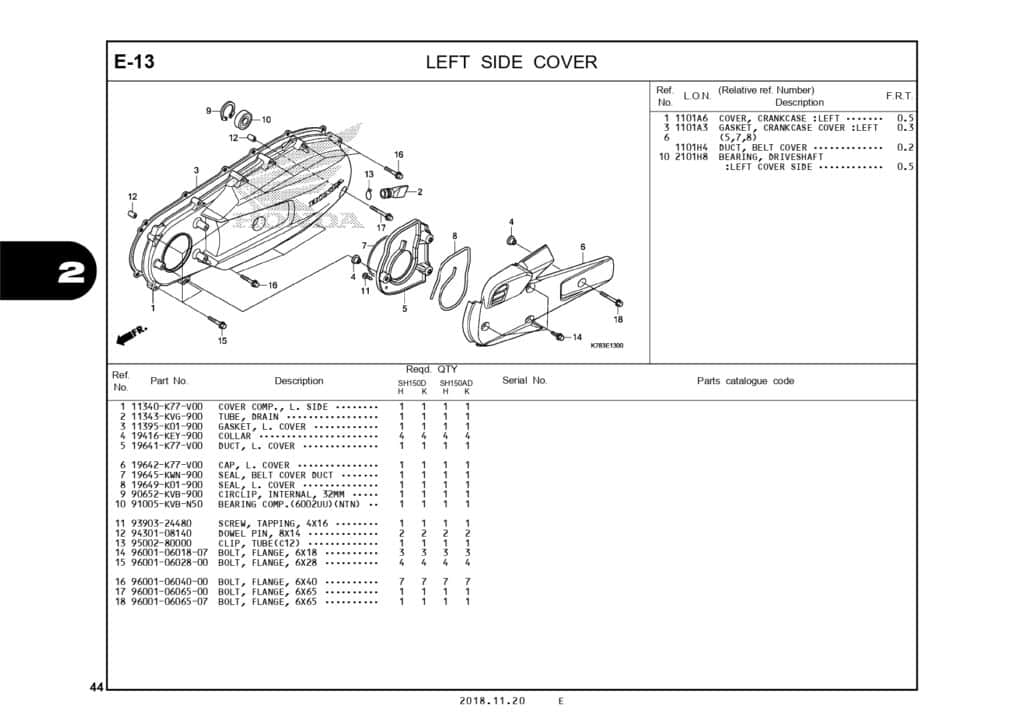

E-13 Left Side Cover – Katalog Suku Cadang Honda SH150i

#	Informasi Produk	Visual
1	COVER COMP L SIDE Part Number : `11340K77V00`
2	TUBE,DRAIN Part Number : `11343KVG900`
3	GASKET L COVER Part Number : `11395K01900`
4	COLLAR Part Number : `19416KEY900`
5	DUCT L COVER Part Number : `19641K77V00`
6	CAP L COVER Part Number : `19642K77V00`
7	SEAL,BELT COVER DUCT Part Number : `19645KWN900`
8	SEAL L COVER DUCT Part Number : `19649K01900`
9	CIRCLIP IN.32 Part Number : `90652KVB900`
10	BRG,COMP DRIVE SHAFT Part Number : `91005KVBN50`
11	SCREW, TAPPING, 4X16 Part Number : `9390324480`

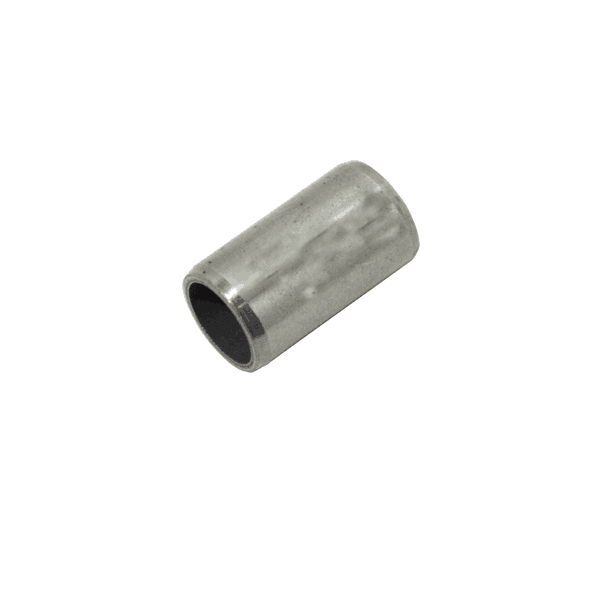

12	PIN DOWEL 8X14 Part Number : `9430108140`
13	CLIP, TUBE(C12) Part Number : `9500280000`
14	BOLT,FLANGE 6X18 Part Number : `960010601807`
15	BOLT FLANGE 6X28 Part Number : `960010602800`
16	BOLT FLANGE 6X40 Part Number : `960010604000`
17	BOLT FLANGE 6X65 Part Number : `960010606500`
18	BOLT FLANGE 6X65 Part Number : `960010606507`
