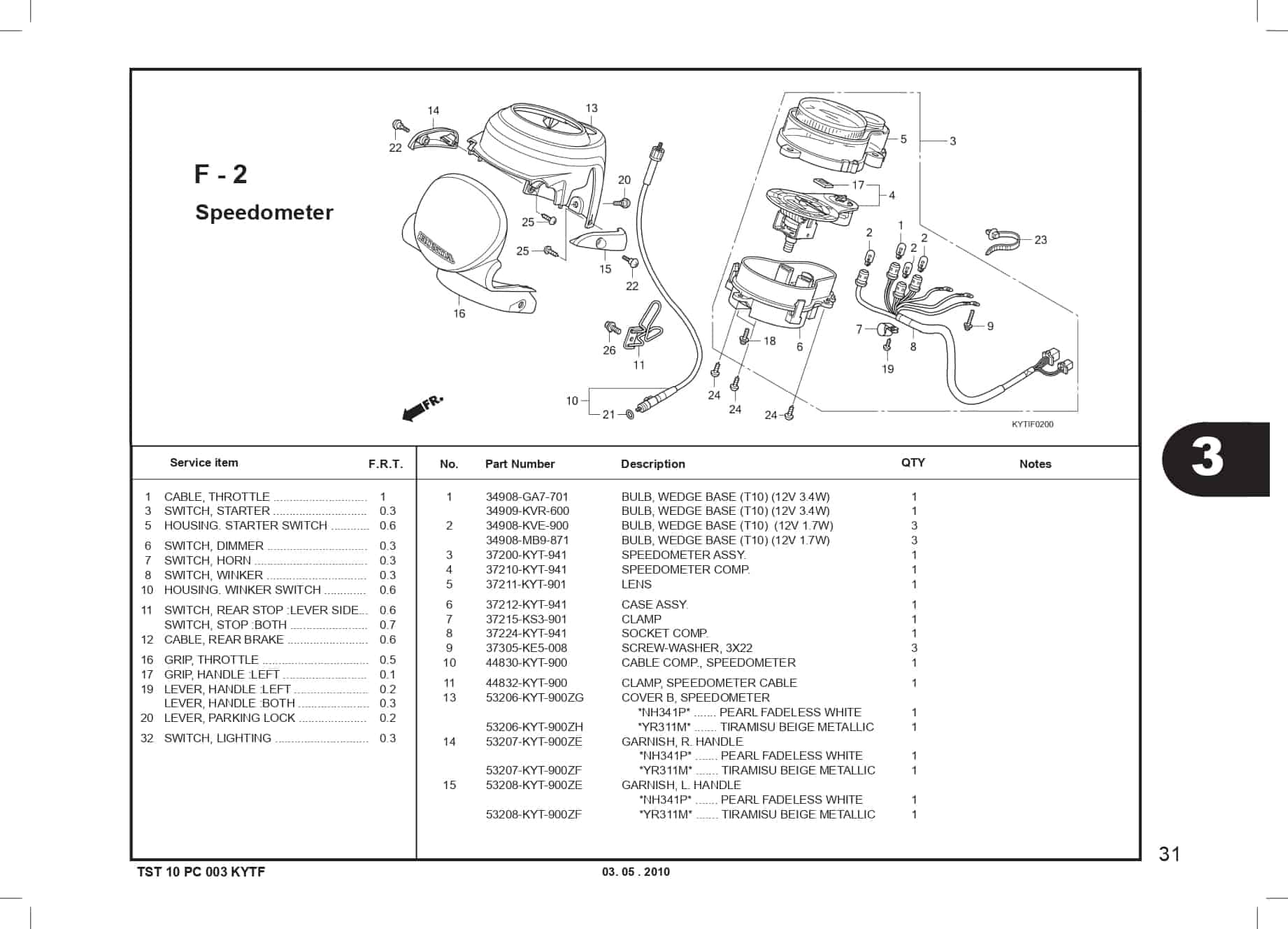

F-2 Speedometer – Katalog Suku Cadang Honda Scoopy KYT

#	Informasi Produk	Visual
1	BULB W BASE Part Number : `34908GA7701`
1	BULB W BASE(T10 12V 3.4W) Part Number : `34909KVR600`
2	BULB W BASE (T10 12V1.7W) Part Number : `34908KVE900`
2	BULB W BASE Part Number : `34908MB9871`
3	SPEEDOMETER ASSY Part Number : `37200KYT941`
5	LENS Part Number : `37211KYT901`
6	CASE ASSY Part Number : `37212KYT941`
7	CLAMP Part Number : `37215KS3901`
8	SOCKET COMP Part Number : `37224KYT941`
9	SCREW WASHER (3X22) Part Number : `37305KE5008`
10	CABLE COMP,SPDMT Part Number : `44830KYT900`
11	CLAMP SPDMT CABLE Part Number : `44832KYT900`
14	GARNISH R HDL(PL FD WH) Part Number : `53207KYT900PFW`
14	GARNISH R HDL(WN RD) Part Number : `53207KYT900ZN`
15	GARNISH L HDL(PL FD WH) Part Number : `53208KYT900PFW`
15	GARNISH L HDL(TI BE MT) Part Number : `53208KYT900TBT`
17	EMBLEM, WING MARK Part Number : `86150KPG901`
17	EMBLEM,PRODUCT (UEHARA) Part Number : `86150KPG902`
18	SCREW WASHER (4X10) Part Number : `90035166008`
19	SCRW.TAPP 4X14 Part Number : `90109MZ5008`
20	SCREW VISOR SPC. Part Number : `90115KW7900`
21	O-RING, 10X1.5 Part Number : `91256KK3840`
22	SCREW SPECIAL PAN 5MM Part Number : `91422KVB900`
23	CLIP BAND HARN (U DIA 15) Part Number : `91540KPH902`
24	SCREW TAPPING 5X16 Part Number : `9390325310`
24	SCREW TAPPING 5X16 Part Number : `9390335310`
25	SCREW TAPPING 4X10 Part Number : `9390334210`
25	SCREW TAPPING 4X10 Part Number : `9390324210`
26	BOLT FLANGE 6X12 Part Number : `957010601200`
