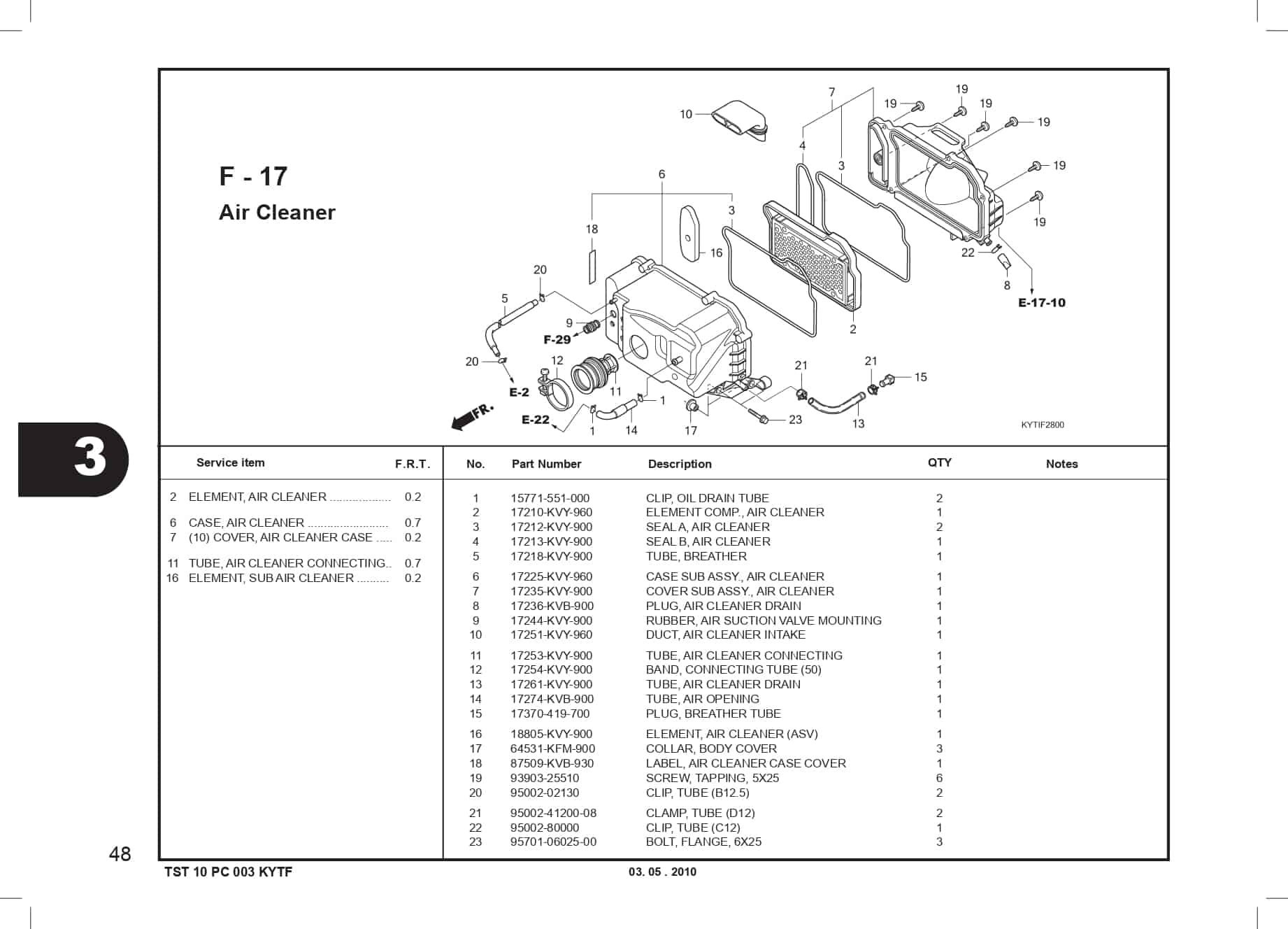

F-17 Air Cleaner – Katalog Suku Cadang Honda Scoopy KYT

#	Informasi Produk	Visual
1	CLIP OIL DRAIN TUBE Part Number : `15771551000`
2	ELEMENT COMP, AIR CLEANER Part Number : `17210KVY960`
3	SEAL A A/C Part Number : `17212KVY900`
4	SEAL B A/C Part Number : `17213KVY900`
5	TUBE BREATHER Part Number : `17218KVY900`
6	CASE SUB ASSY A/C Part Number : `17225KVY960`
7	COVER SUB ASSY A/C Part Number : `17235KVY900`
8	PLUG A/C DRAIN Part Number : `17236KVB900`
9	RUBBER ASV MOUNT Part Number : `17244KVY900`
10	DUCT A/C INLET Part Number : `17251KVY960`
11	TUBE A/C CONNECTING Part Number : `17253KVY900`
12	BAND 50 CONN TUBE Part Number : `17254KVY900`
13	TUBE A/C DRAIN Part Number : `17261KVY900`
14	TUBE AIR OPENING Part Number : `17274KVB900`
15	PLUG BRTHR.TUBE Part Number : `17370419700`
16	ELEMENT ASV A/C Part Number : `18805KVY900`
17	COLLAR BODY COVER Part Number : `64531KFM900`
18	LABEL PROHIBIT FILTER CLEANING Part Number : `87509KVB930`
19	SCREW TAPPING 5X25 Part Number : `9390325510`
20	CLIP, TUBE(B12.5) Part Number : `9500202130`
21	CLAMP D12 TUBE Part Number : `950024120008`
22	CLIP, TUBE(C12) Part Number : `9500280000`
23	BOLT FLANGE 6X25 Part Number : `957010602500`
