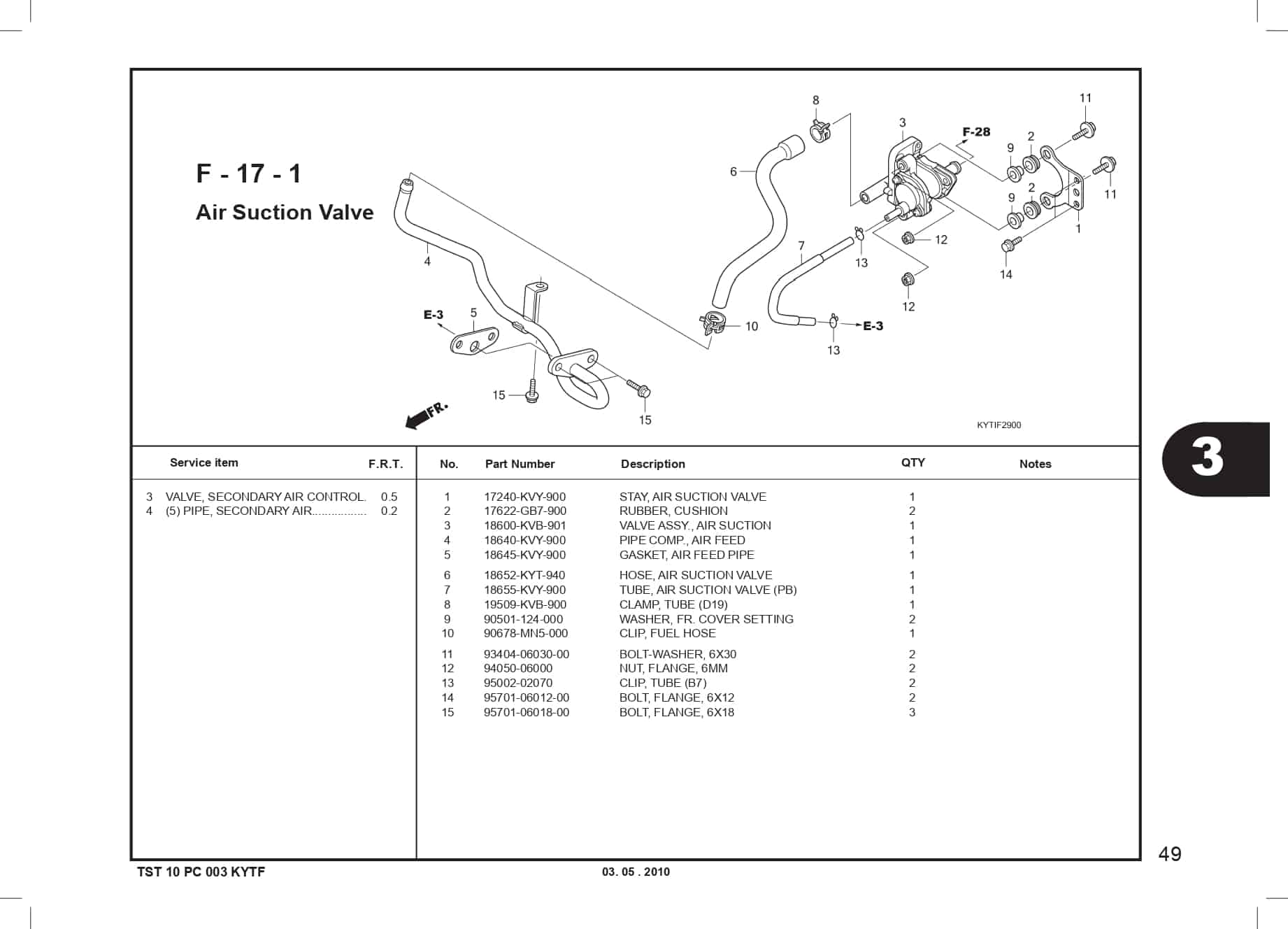

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | STAY ASV | 17240KVY900 |
|
| 2 | RUBBER CUSHION | 17622GB7900 |
|
| 3 | VALVE ASSY AIR SUCTION | 18600KVB901 |
|
| 4 | PIPE COMP AIR FEED | 18640KVY900 | - |
| 5 | GASKET AIR FEED PIPE | 18645KVY900 |
|
| 6 | HOSE AI | 18652KYT940 |
|
| 8 | CLAMP D19 TUBE | 19509KVB900 |
|
| 9 | WASHER FR COVER SETTING | 90501124000 |
|
| 10 | CLIP FUEL HOSE | 90678MN5000 |
|
| 11 | BOLT WASHER 6X30 | 934040603000 | - |
| 12 | NUT,FLANGE 6MM | 9405006000 |
|
| 13 | CLIP B7 TUBE | 9500202070 |
|
| 13 | CLIP B7 TUBE | 9500202071 |
|
| 14 | BOLT FLANGE 6X12 | 957010601200 |
|
| 14 | BOLT FLANGE 6X12 | 957010601208 |
|
| 15 | BOLT FLANGE 6X18 | 957010601801 |
|
| 15 | BOLT FLANGE 6X18 | 957010601807 |
|
