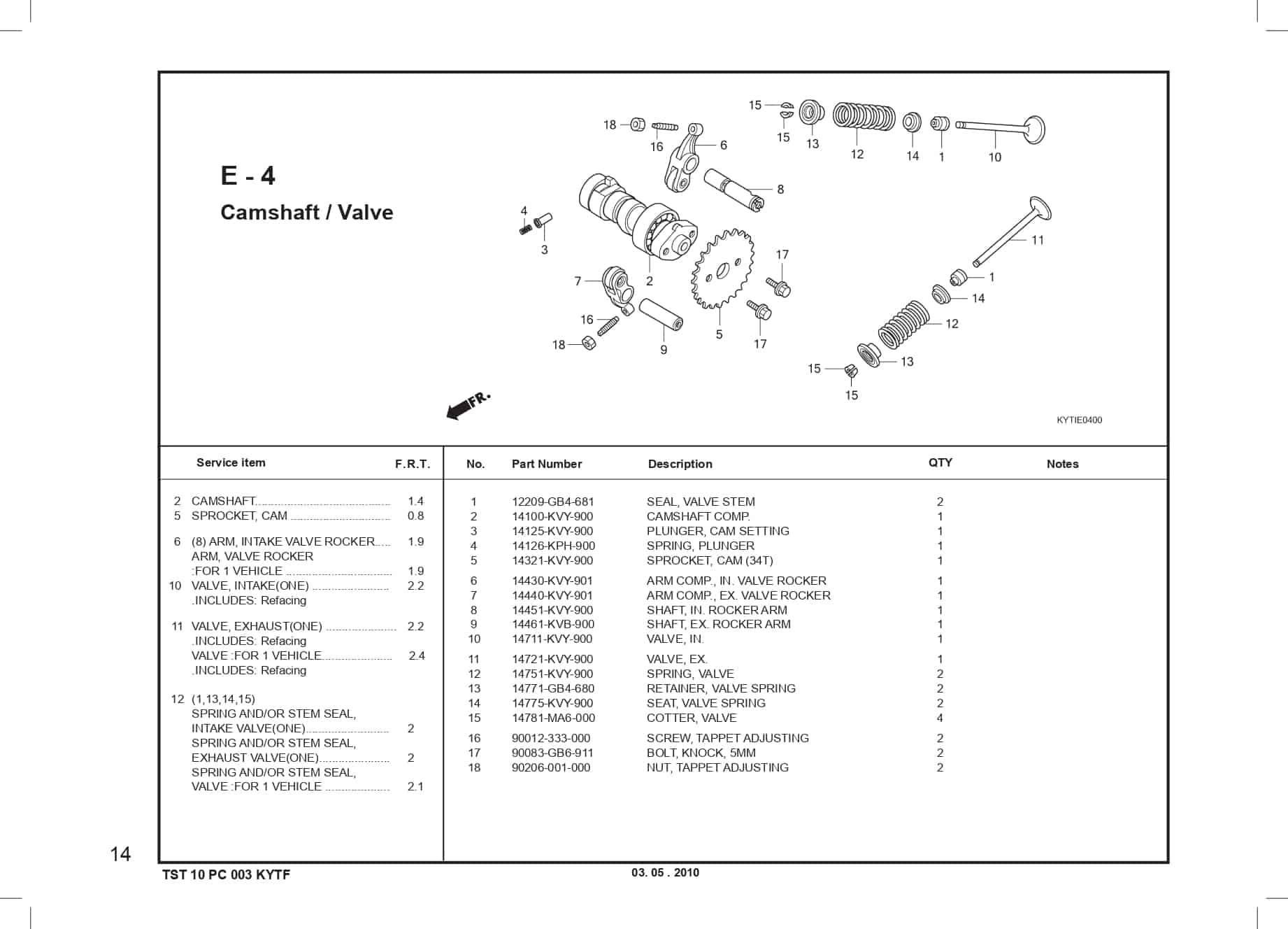

E-4 Camshaft/ Valve – Katalog Suku Cadang Honda Scoopy KYT

#	Informasi Produk	Visual
1	SEAL,VALVE STEM Part Number : `12209GB4681`
1	SEAL,VALVE STEM Part Number : `12209GB4682`
2	CAMSHAFT COMP. Part Number : `14100KVY900`
3	PLUNGER, CAM SETTING Part Number : `14125KVY901`
4	SPRING PLUNGER Part Number : `14126KPH901`
5	SPROCKET CAM Part Number : `14321KVY900`
6	ARM COMP IN VALVE ROCKER Part Number : `1443AKVY960`
7	ARM COMP EX VALVE ROCKER Part Number : `1444AKVY960`
8	SHAFT IN ROCKER ARM Part Number : `14451KVY900`
9	SHAFT EX ROCKER ARM Part Number : `14461KVB900`
10	VALVE,INLET Part Number : `14711KVY900`
11	VALVE,EXHAUST Part Number : `14721KVY900`
12	SPRING VALVE Part Number : `14751KVY900`
13	RETAINER Part Number : `14771GB4680`
14	SEAT, VALVE SPRING Part Number : `14775KVY900`
15	COTTER,VALVE Part Number : `14781MA6000`
16	SCREW,TAPPET ADJ Part Number : `90012333000`
17	BOLT, KNOCK, 5MM Part Number : `90083GB6911`
18	NUT,TAPPET ADJUST Part Number : `90206001000`
