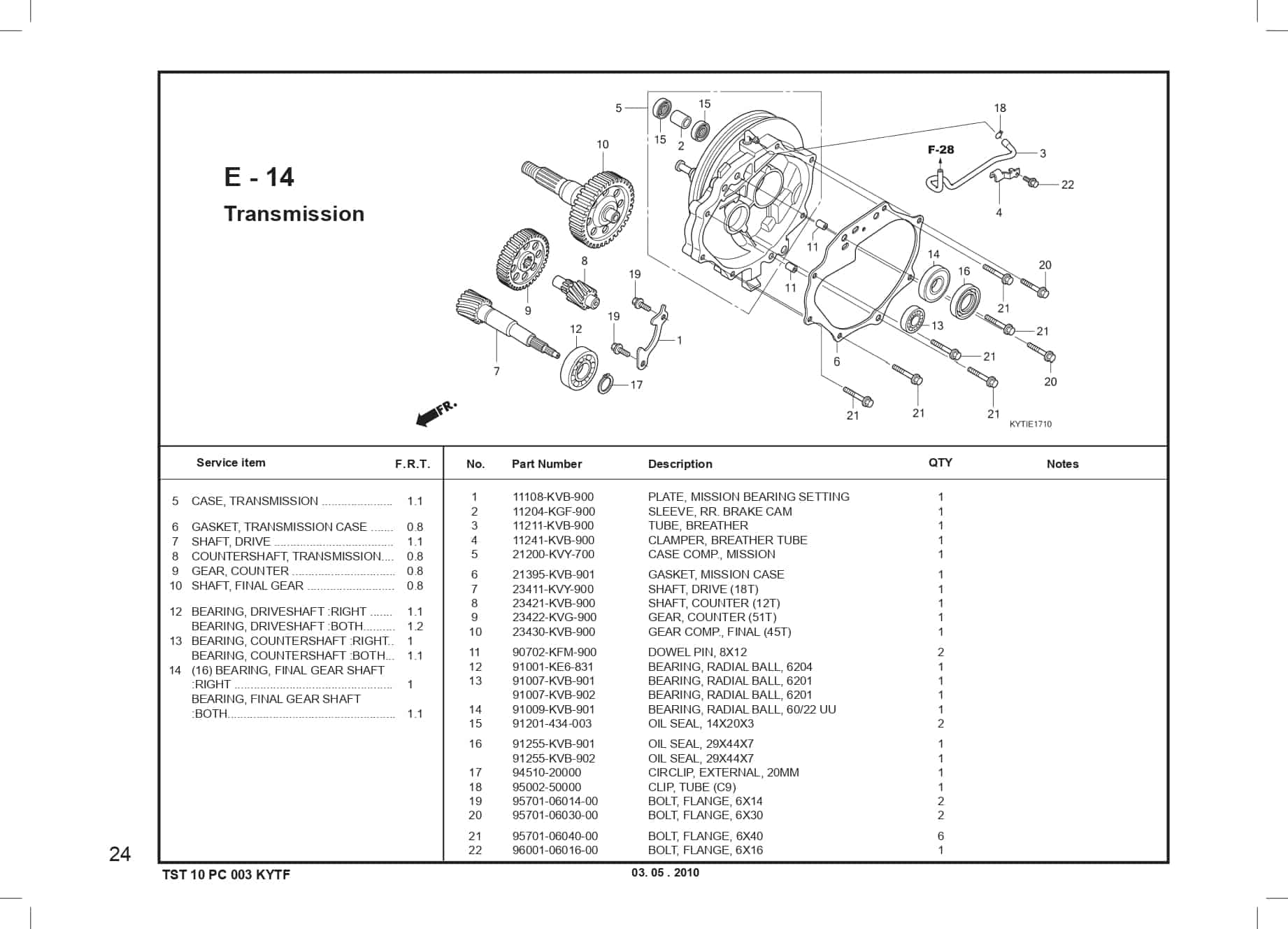

E-14 Transmission – Katalog Suku Cadang Honda Scoopy KYT

#	Informasi Produk	Visual
1	PLATE, MISSION BEARING SETTING Part Number : `11108KVB900`
2	SLEEVE RR BRAKE CAM Part Number : `11204KGF900`
3	TUBE BREATHER Part Number : `11211KVB900`
4	CLAMPER B REATHER TUBE Part Number : `11241KVB900`
5	CASE COMP, MISSION Part Number : `21200K259D0`
6	GASKET, MISSION CASE Part Number : `21395KVB901`
7	SHAFT DRIVE Part Number : `23411KVY900`
8	SHAFT COUNTER Part Number : `23421KVB900`
9	GEAR COUNTER (51T) Part Number : `23422KVG900`
10	GEAR COMP, FINAL Part Number : `23430KVB900`
11	PIN DOWEL 8X12 Part Number : `90702KFM900`
12	BRG,BALL RADIAL 6204 Part Number : `91001KE6831`
13	BRG,BALL RADIAL 6201 Part Number : `91007KVB903`
15	BRG,BALL RADIAL 60/22 UU Part Number : `91009KVB903`
15	BRG,BALL RADIAL 60/22 Part Number : `91009K44V01`
15	BRG,BALL RADIAL 60/22 Part Number : `91009K16A41`
16	OIL SEAL 14X20X3 Part Number : `91201434003`
16	OIL SEAL 14X20X3 Part Number : `91201434005`
17	OIL SEAL 29X44X7 Part Number : `91255KVB902`
18	CIRCLIP, EXTERNAL, 20MM Part Number : `9451020000`
19	CLIP,TUBE 5.0 MM Part Number : `9500250000`
20	BOLT FLANGE 6X14 Part Number : `957010601400`
21	BOLT FLANGE 6X30 Part Number : `957010603000`
21	BOLT FLANGE 6X30 Part Number : `957010603008`
22	BOLT FLANGE 6X40 Part Number : `957010604000`
