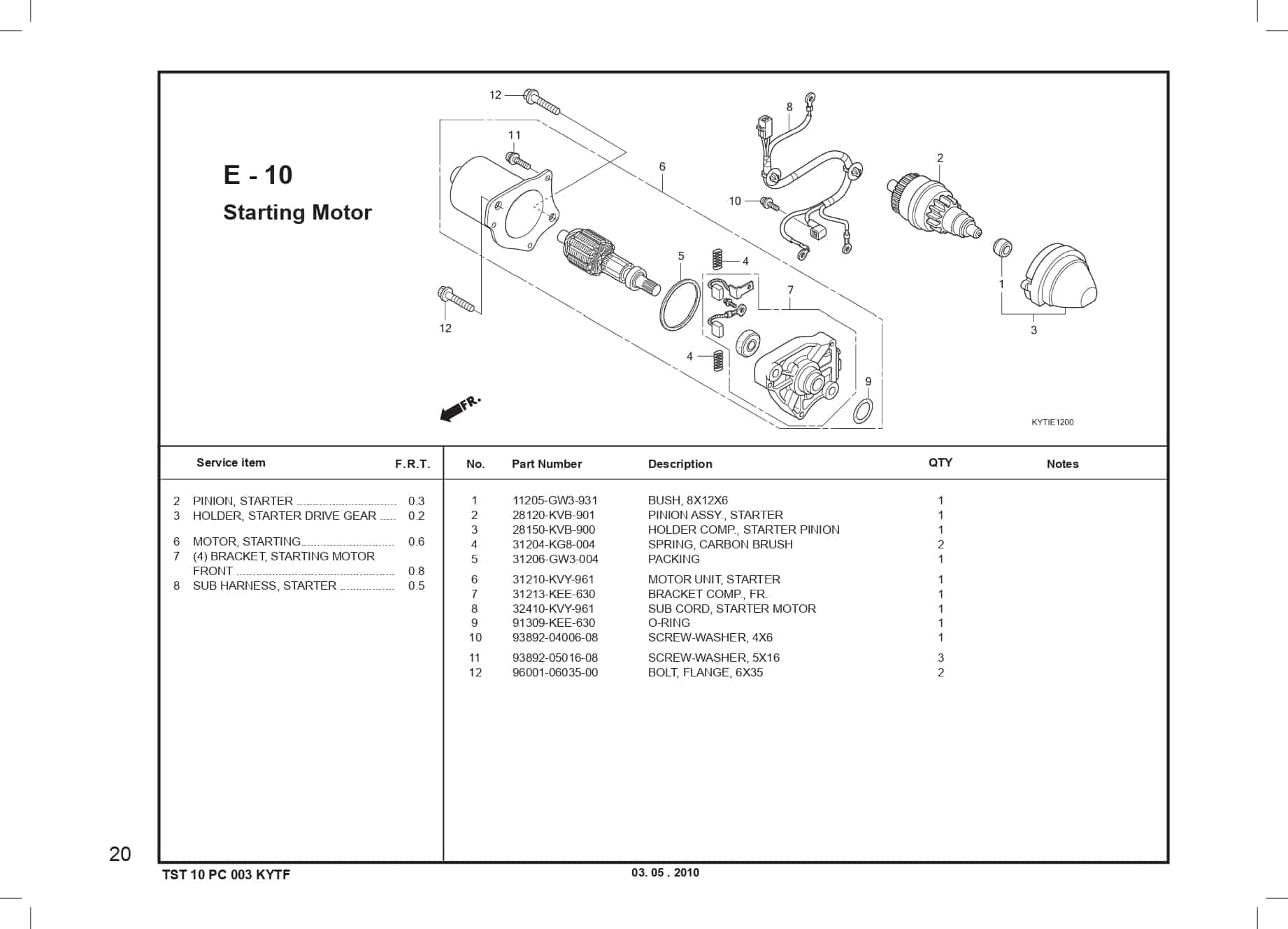

E-10 Starting Motor – Katalog Suku Cadang Honda Scoopy KYT

#	Informasi Produk	Visual
1	BUSH,8X12X6 Part Number : `11205GW3931`
2	PINION ASSY START Part Number : `28120KVB901`
3	HOLDER COMP STARTER PINION Part Number : `28150KVB900`
4	SPRING BRUSH Part Number : `31204KG8004`
5	PACKING Part Number : `31206GW3004`
6	MOTOR UNIT STARTER Part Number : `31210KVB902`
7	BRACKET COMP FR Part Number : `31213KEE630`
9	O RING Part Number : `91309KEE630`
10	SCREW,WASHER 4X6 Part Number : `938920400608`
11	SCREW WASHER (5X16) Part Number : `938920501608`
12	BOLT FLANGE 6X35 Part Number : `960010603500`
