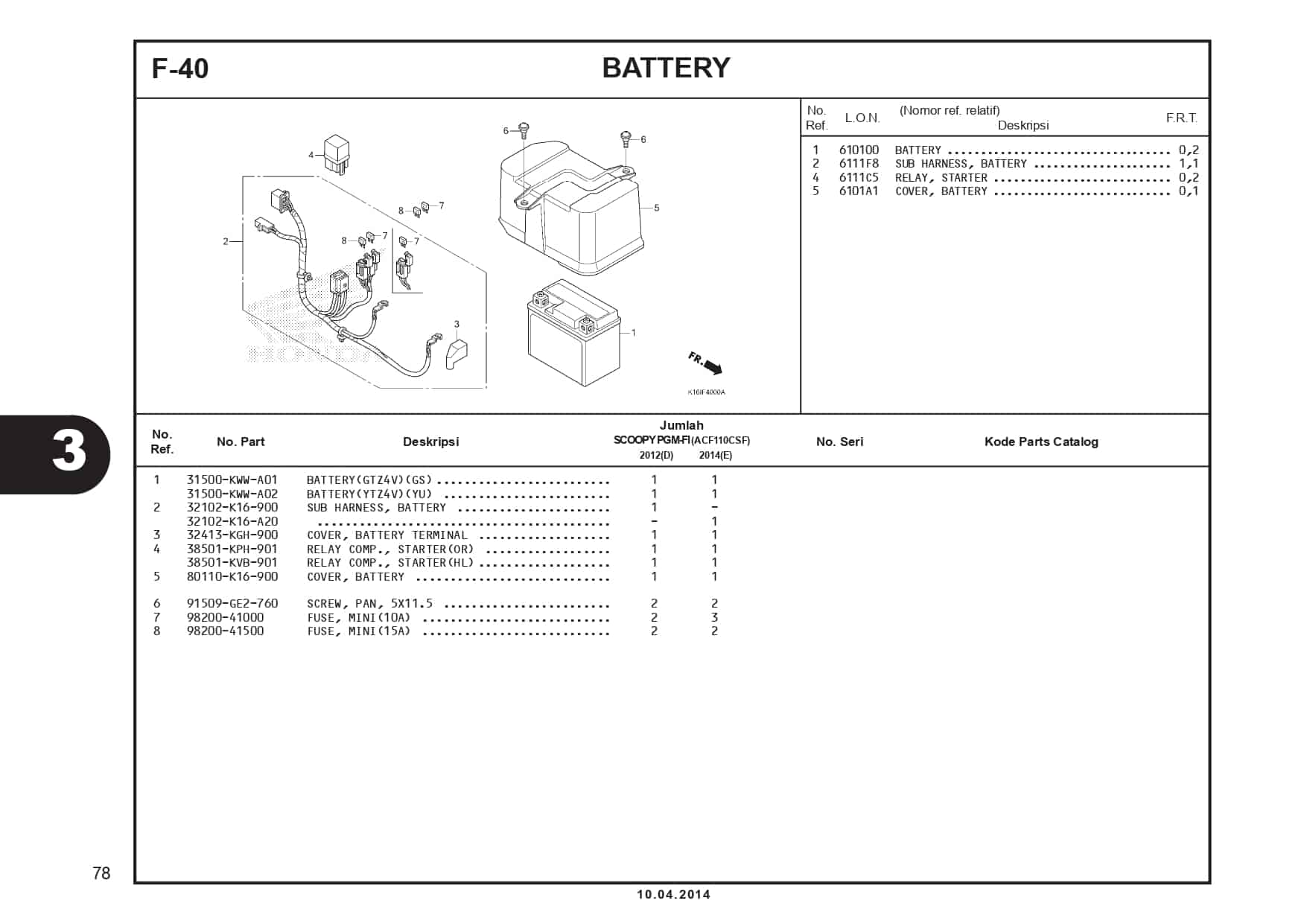

F-40 Battery – Katalog Suku Cadang Honda Scoopy FI – 2

#	Informasi Produk	Visual
1	BATTERY GTZ4V Part Number : `31500KWWA01`
1	BATTERY YTZ4-V Part Number : `31500KWWA02`
2	SUB HARNESS, BATTERY Part Number : `32102K16900`
2	SUB HARNESS BATTERY Part Number : `32102K16A20`
3	COVER,BATT.TERM. Part Number : `32413KGH900`
4	RELAY COMP START Part Number : `38501KPH901`
4	RELAY COMP,START Part Number : `38501KVB901`
5	COVER, BATTERY Part Number : `80110K16900`
6	SCREW PAN 5X11.5 Part Number : `91509GE2760`
7	FUSE, MINI(10A) Part Number : `9820041000`
8	FUSE F (15A) Part Number : `9820041500`
