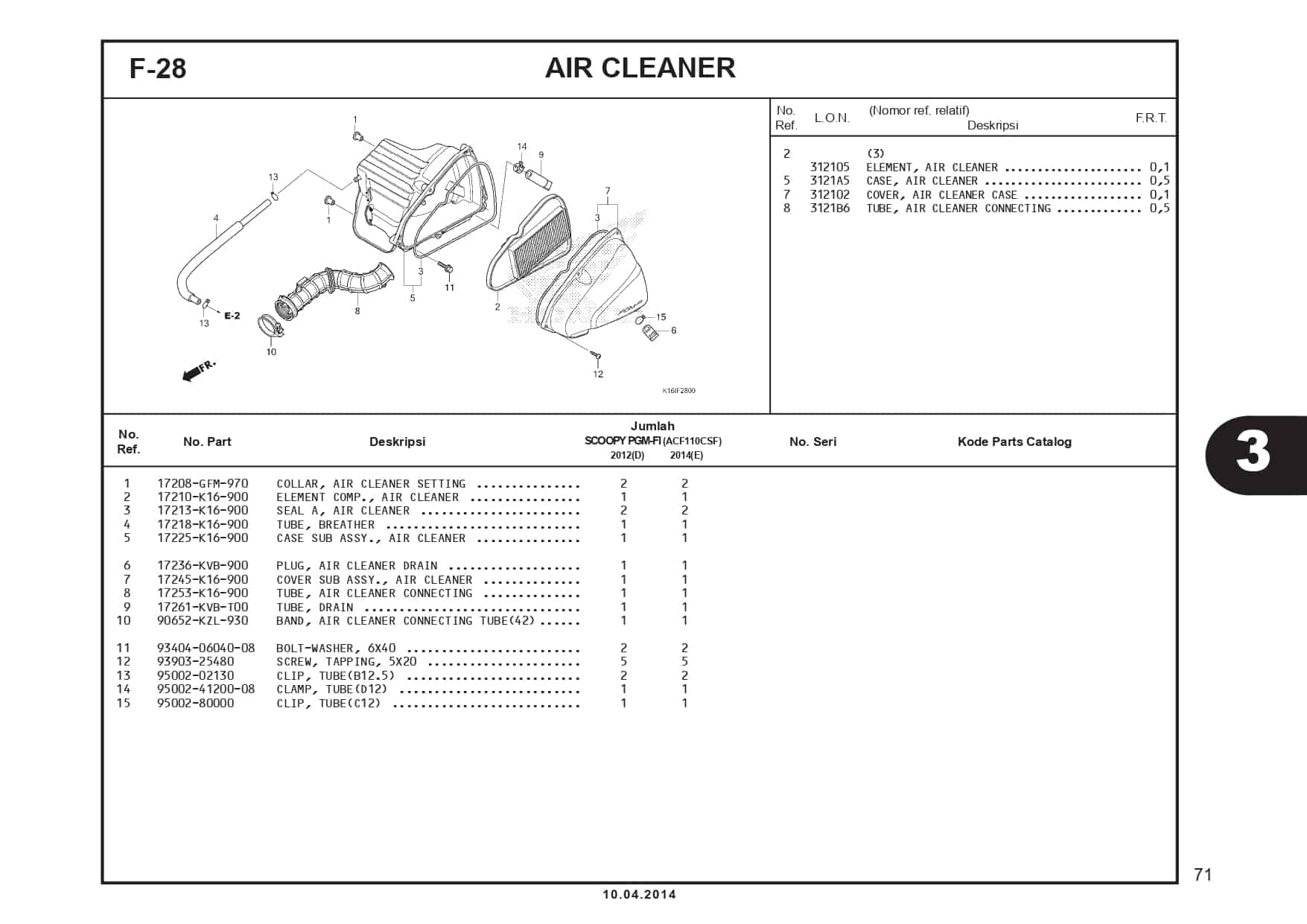

F-28 Air Cleaner – Katalog Suku Cadang Honda Scoopy FI – 2

#	Informasi Produk	Visual
1	COLLAR, AIR CLEANER SETTING Part Number : `17208GFM970`
2	ELEMENT COMP., AIR CLEANER Part Number : `17210K16900`
2	ELEMENT COMP., AIR CLEANER Part Number : `17210K46N20`
3	SEAL A, AIR CLEANER Part Number : `17213K16900`
4	TUBE, BREATHER Part Number : `17218K16900`
5	CASE SUB ASSY., AIR CLEANER Part Number : `17225K16900`
6	PLUG A/C DRAIN Part Number : `17236KVB900`
7	COVER SUB ASSY., AIR CLEANER Part Number : `17245K16900`
8	TUBE, AIR CLEANER CONNECTING Part Number : `17253K16900`
9	TUBE DRAIN Part Number : `17261KVBT00`
10	BAND A/C CONNECTING TUBE(42) Part Number : `90652KZL930`
11	BOLT WASHER 6X40 Part Number : `934040604008`
11	Bolt Flange 6x40 Part Number : `957010604000`
12	SCREW,TAPP 5X2 Part Number : `9390325480`
13	CLIP, TUBE(B12.5) Part Number : `9500202130`
14	CLAMP D12 TUBE Part Number : `950024120008`
15	CLIP, TUBE(C12) Part Number : `9500280000`
