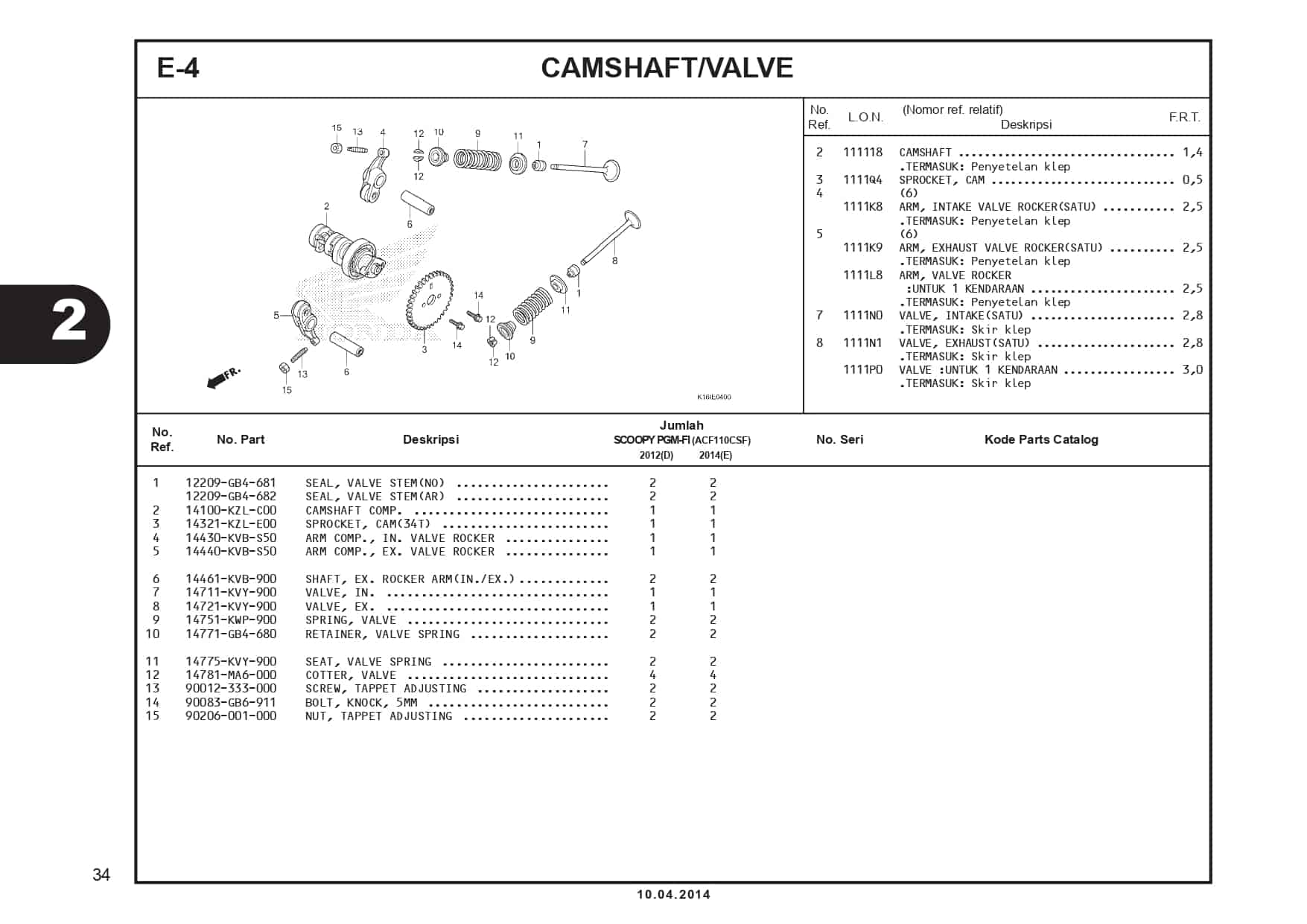

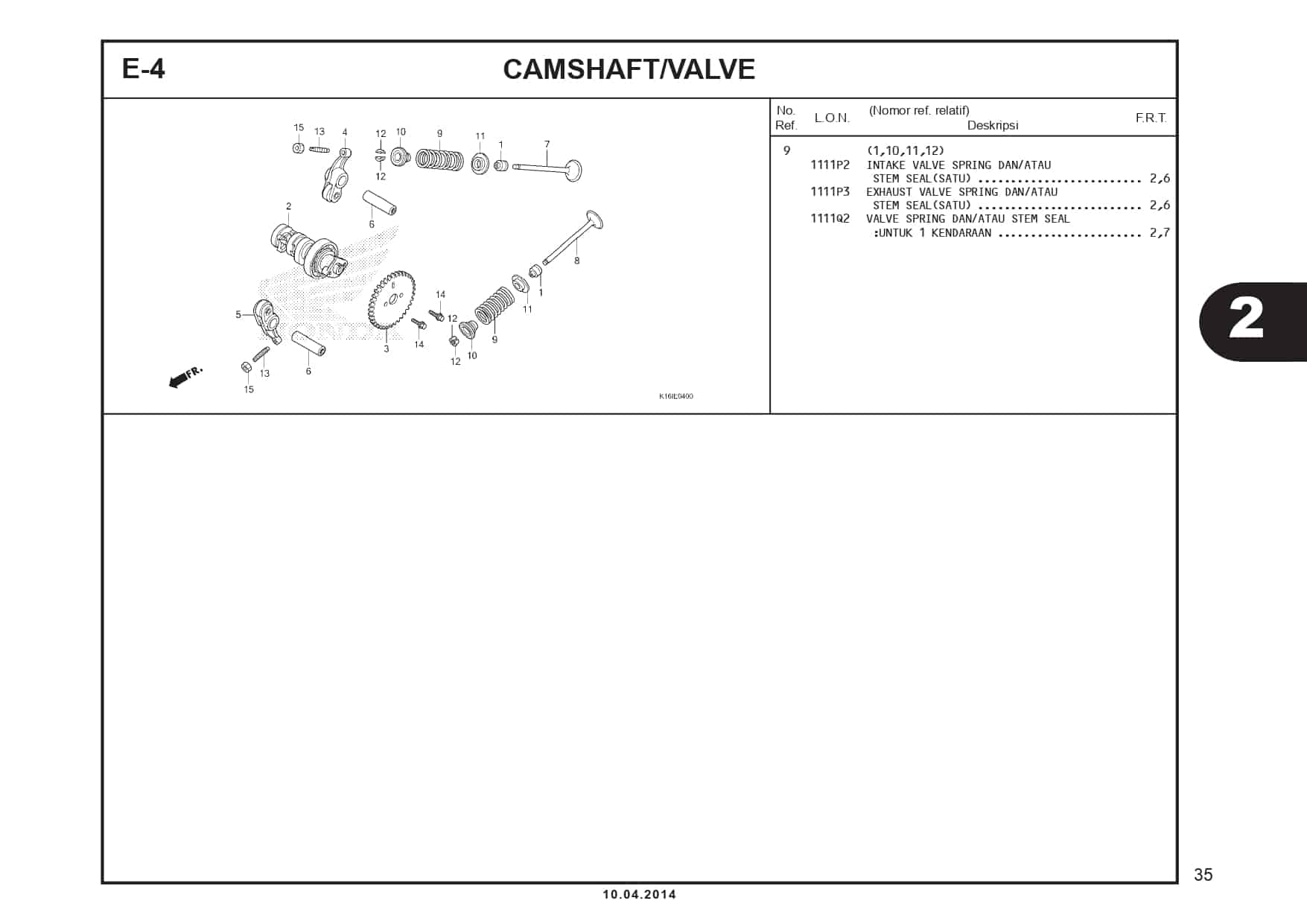

E-4 CamShaft/ Valve – Katalog Suku Cadang Honda Scoopy FI – 2

#	Informasi Produk	Visual
1	SEAL,VALVE STEM Part Number : `12209GB4681`
1	SEAL VLV. STEM Part Number : `12209GB4682`
2	SHAFT COMP,CAM Part Number : `14100KZLC00`
3	SPROCKET, CAM(34T) Part Number : `14321KZLE00`
4	ARM ASSY IN VALVE ROCKER Part Number : `14430KVBS50`
5	ARM COMP,EX VALVE Part Number : `14440KVBS50`
6	SHAFT EX ROCKER ARM Part Number : `14461KVB900`
7	VALVE,INLET Part Number : `14711KVY900`
8	VALVE,EXHAUST Part Number : `14721KVY900`
9	SPRING VALVE Part Number : `14751KWP900`
10	RETAINER Part Number : `14771GB4680`
11	SEAT, VALVE SPRING Part Number : `14775KVY900`
12	COTTER,VALVE Part Number : `14781MA6000`
13	SCREW,TAPPET ADJ Part Number : `90012333000`
14	BOLT, KNOCK, 5MM Part Number : `90083GB6911`
15	NUT,TAPPET ADJUST Part Number : `90206001000`
