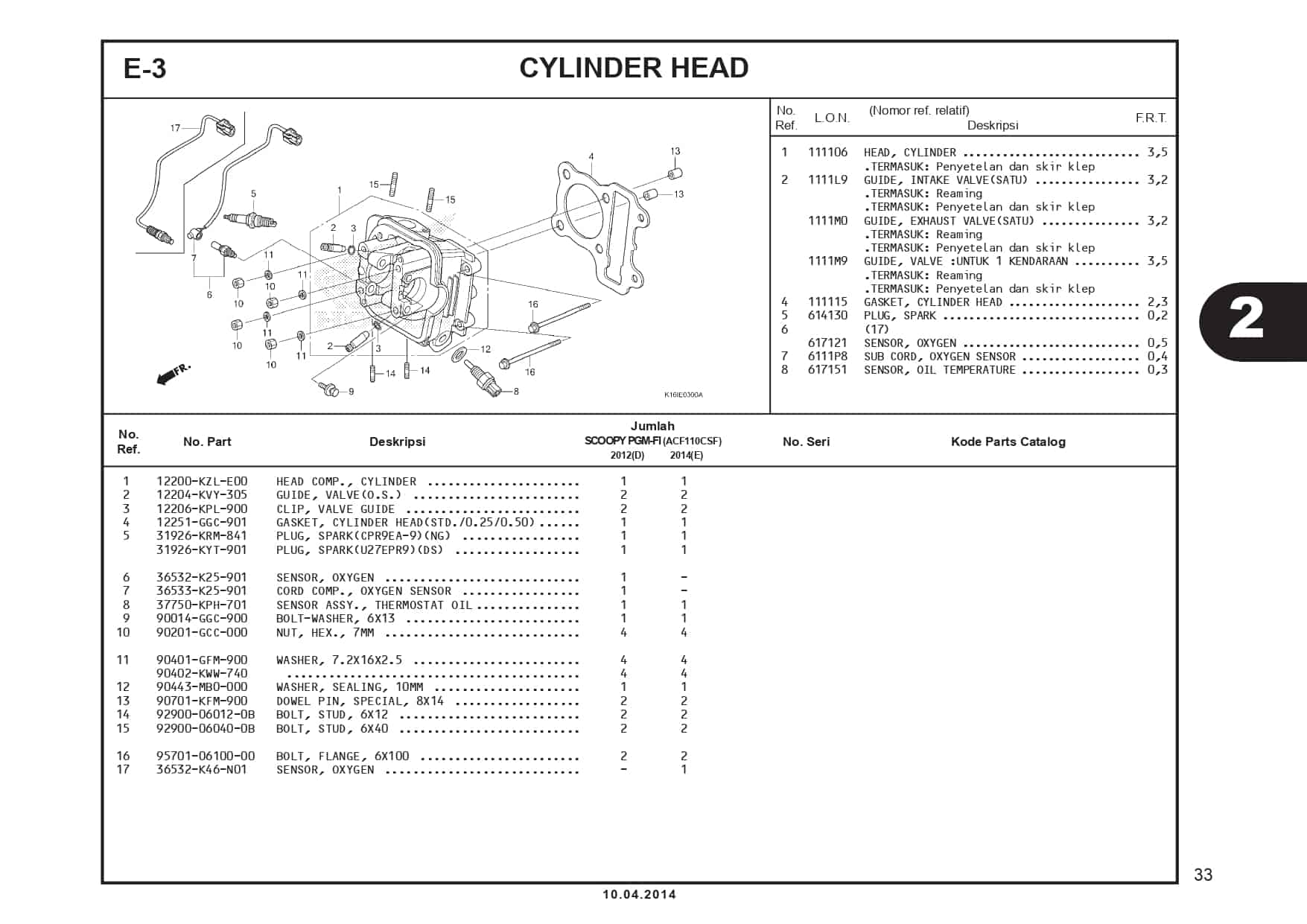

E-3 Cylinder Head – Katalog Suku Cadang Honda Scoopy FI – 2

#	Informasi Produk	Visual
1	HEAD COMP CYLINDER Part Number : `1220AKZLC30`
2	GUIDE, VALVE(O.S.) Part Number : `12204KVY305`
3	CLIP VALVE GUIDE Part Number : `12206KPL900`
4	GASKET CYLINDER HEAD Part Number : `12251GGC901`
5	SPARK PLUG CPR9EA9 (NGK) Part Number : `31926KRM841`
5	SPARK PLUG U27EPR-9 (DS) Part Number : `31926KYT901`
5	SPARK PLUG MR9C-9N Part Number : `31919k25601`
5	SPARK PLUG U27EPR-9 (DS) Part Number : `31919K25602`
6	SENSOR OXYGEN Part Number : `36532K25901`
8	SENSOR ASSY. THERMOSTAT OIL Part Number : `37750KPH701`
8	SENSOR ASSY. THERMOSTAT OIL Part Number : `37750K16A21`
9	BOLT, WASHER, 6X13 Part Number : `90014GGC900`
10	NUTHEX 7MM Part Number : `90201GCC000`
11	WASHER 7.2X16X2.5 Part Number : `90401GCC000`
11	WASHER 7.2X16X2.5 Part Number : `90402KWW740`
12	WASHER SEALING 10MM Part Number : `90443MB0000`
13	DOWEL PIN, SPECIAL, 8X14 Part Number : `90701KFM900`
14	BOLT STUD 6X12 Part Number : `92900060120B`
15	BOLT, STUD, 6X40 Part Number : `92900060400B`
16	BOLT FLANGE 6X100 Part Number : `957010610000`
17	SENSOR OXYGEN Part Number : `36532K46N01`
