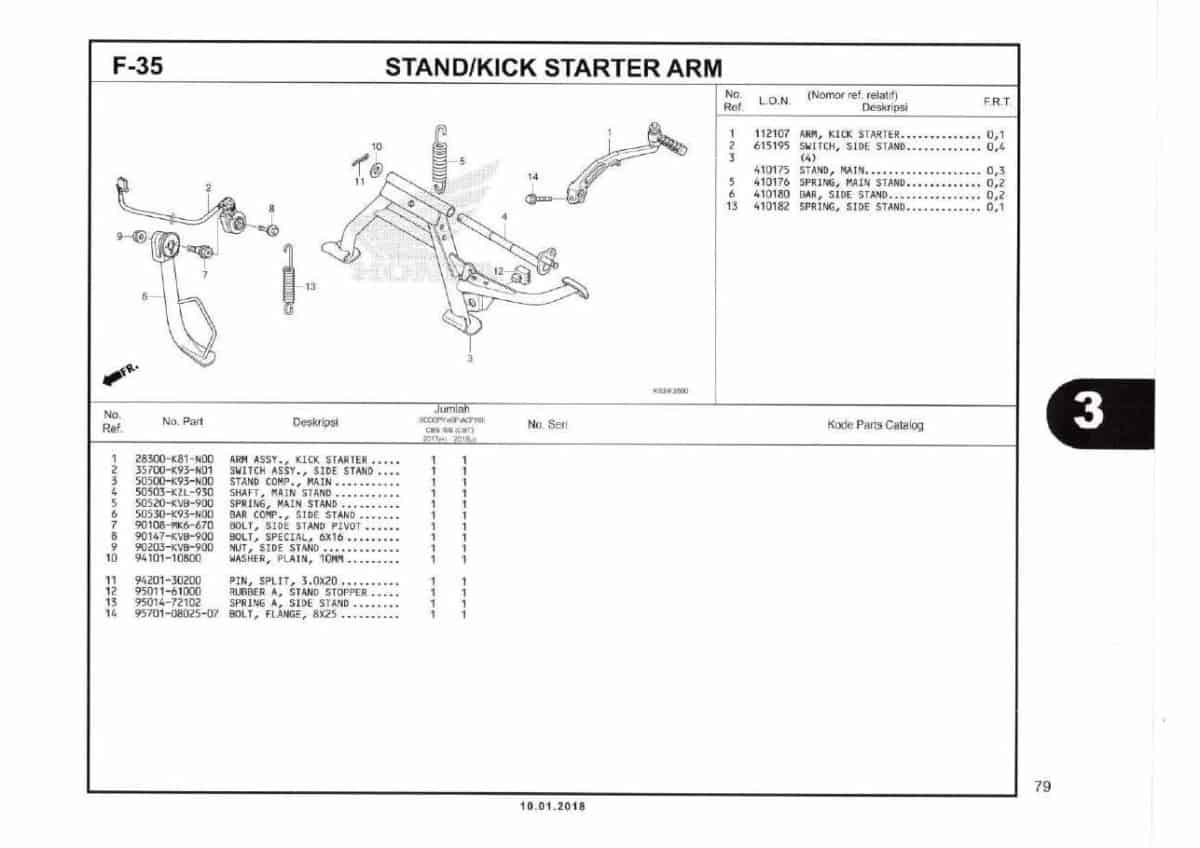

F35- Stand Kick Starter Arm – Katalog Honda Scoopy eSP K93H

#	Informasi Produk	Visual
1	ARM, ASSY., KICK STARTER Part Number : `28300K81N00`
2	SWITCH ASSY., SIDE STAND Part Number : `35700K93N01`
3	STAND COMP., MAIN Part Number : `50500K93N00`
4	SHAFT, MAIN STAND Part Number : `50503KZL930`
5	SPRING, MAIN STAND Part Number : `50520KVB900`
6	BAR COMP., SIDE STAND Part Number : `50530K93N00`
7	BOLT, SIDE STAND PIVOT Part Number : `90108MK6670`
8	BOLT, SPECIAL, 6X16 Part Number : `90147KVB900`
9	NUT, SIDE STAND Part Number : `90203KVB900`
10	WASHER, PLAIN, 10MM Part Number : `9410110800`
11	PIN, SPLIT, 3.0X20 Part Number : `9420130200`
12	RUBBER A, STAND STOPPER Part Number : `9501161000`
13	SPRING A, SIDE STAND Part Number : `9501472102`
14	BOLT, FLANGE, 8X25 Part Number : `957010802507`
