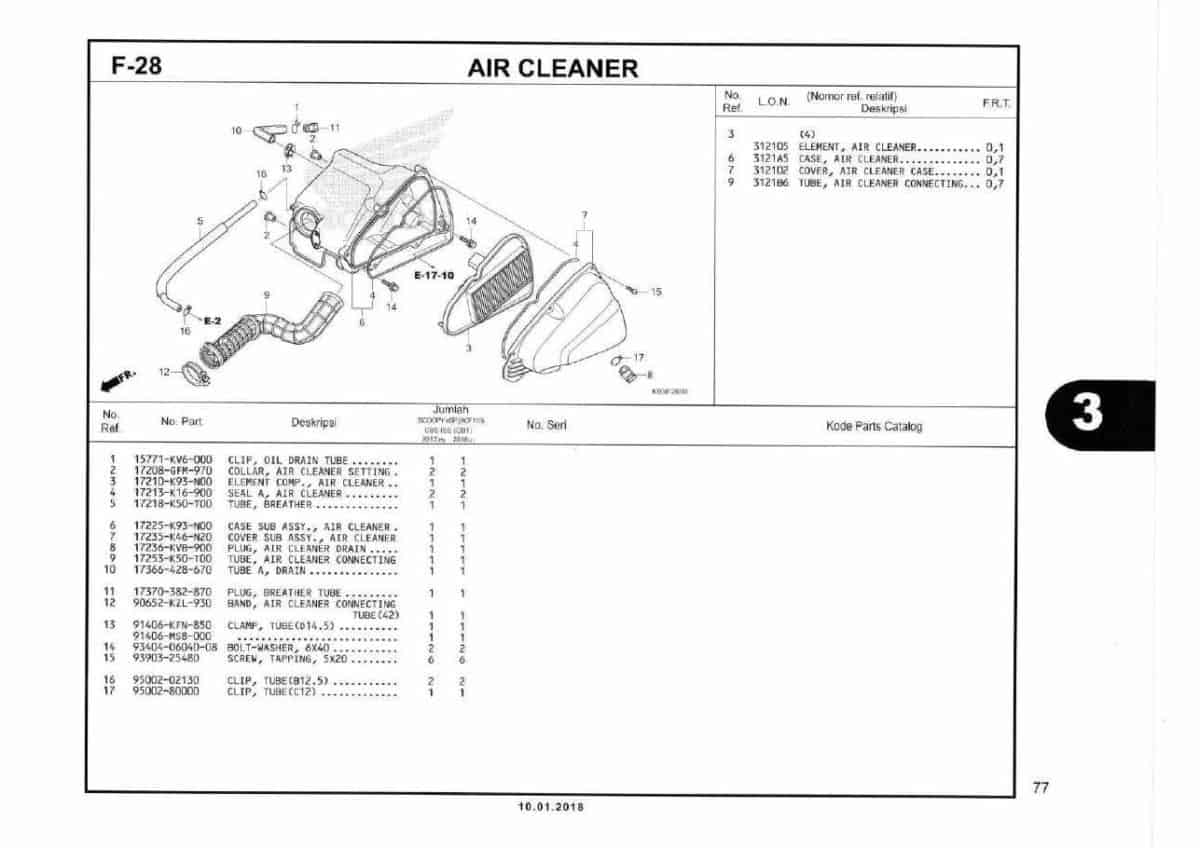

F28- Air Cleaner – Katalog Honda Scoopy eSP K93H

#	Informasi Produk	Visual
1	CLIP, OIL DRAIN TUBE Part Number : `15771KV6000`
2	COLLAR, AIR CLEANER SETTING Part Number : `17208GFM970`
3	ELEMENT COMP., AIR CLEANER Part Number : `17210K93N00`
4	SEAL A, AIR CLEANER Part Number : `17213K16900`
5	TUBE, BREATHER Part Number : `17218K50T00`
6	CASE SUB ASSY., AIR CLEANER Part Number : `17225K93N00`
7	COVER SUB ASSY., AIR CLEANER Part Number : `17235K46N20`
8	PLUG, AIR CLEANER DRAIN Part Number : `17236KVB900`
9	TUBE, AIR CLEANER CONNECTING Part Number : `17253K50T00`
10	TUBE A, DRAIN Part Number : `17366428670`
11	PLUG, BREATER TUBE Part Number : `17370382870`
12	BAND, AIR CLEANER CONNECTING TUBE (42) Part Number : `90652KZL930`
13	CLAMP, TUBE (D14.5) Part Number : `91406KFN850`
14	BOLT, WASHER, 6X40 Part Number : `934040604008`
15	SCREW, TAPPING, 5X20 Part Number : `9390325480`
16	CLIP, TUBE (B12.5) Part Number : `9500202130`
17	CLIP, TUBE (C12) Part Number : `9500280000`
