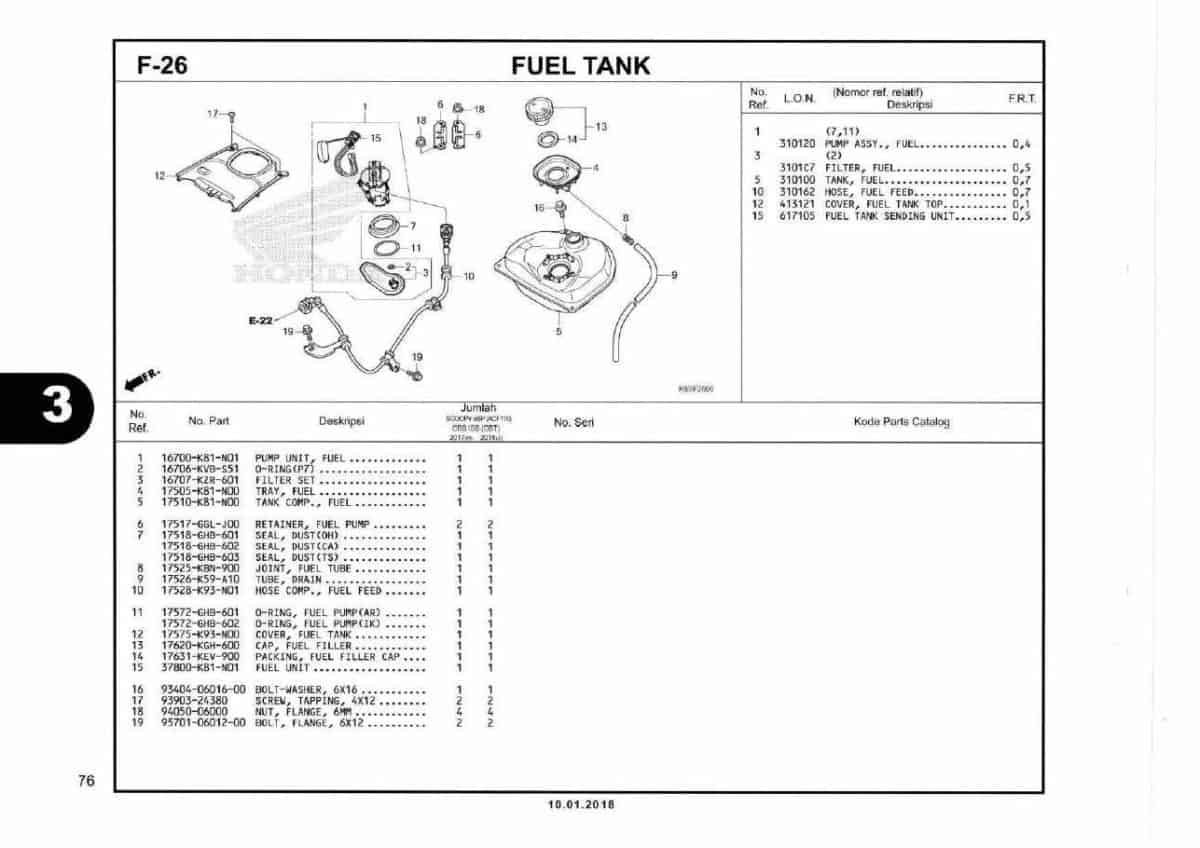

F26- Fuel Tank – Katalog Honda Scoopy eSP K93H

#	Informasi Produk	Visual
1	PUMP UNIT, FUEL Part Number : `16700K81N01`
2	O-RING (P7) Part Number : `16706KVBS51`
3	FILTER SET Part Number : `16707KZR601`
4	TRAY, FUEL Part Number : `17505K81N00`
5	TANK COMP,. FUEL Part Number : `17510K81N00`
6	RETAINER, FUEL PUMP Part Number : `17517GGLJ00`
7	SEAL, DUST (0H) Part Number : `17518GHB601`
8	JOINT, FUEL TUBE Part Number : `17525KBN900`
9	TUBE, DRAIN Part Number : `17526K59A10`
10	HOSE CAMP., FUEL FEED Part Number : `17528K93N01`
11	O-RING , FUEL PUMP (AR) Part Number : `17572GHB601`
11	O-RING , FUEL PUMP Part Number : `17572GGLJ00`
12	COVER, FUEL TANK Part Number : `17575K93N00`
13	CAP, FUEL FILLER Part Number : `17620KGH600`
14	PACKING, FUEL FILLER CAP Part Number : `17631KEV900`
15	FUEL UNIT Part Number : `37800K81N01`
16	BOLT WASHER, 6X16 Part Number : `934040601600`
17	SCREW, TAPPING, 4X12 Part Number : `9390324380`
18	NUT, FLANGE, 6MM Part Number : `9405006000`
19	BOLT, FLANGE, 6X12 Part Number : `957010601208`
