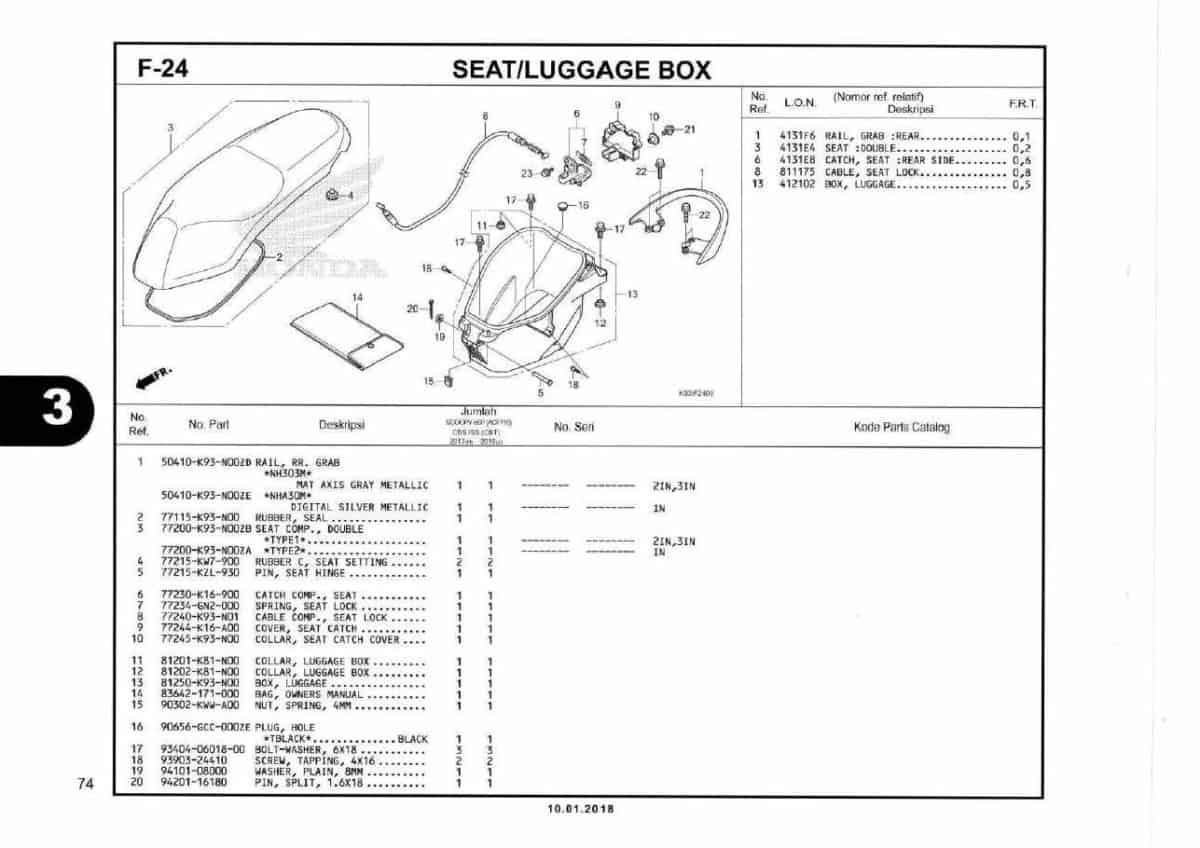

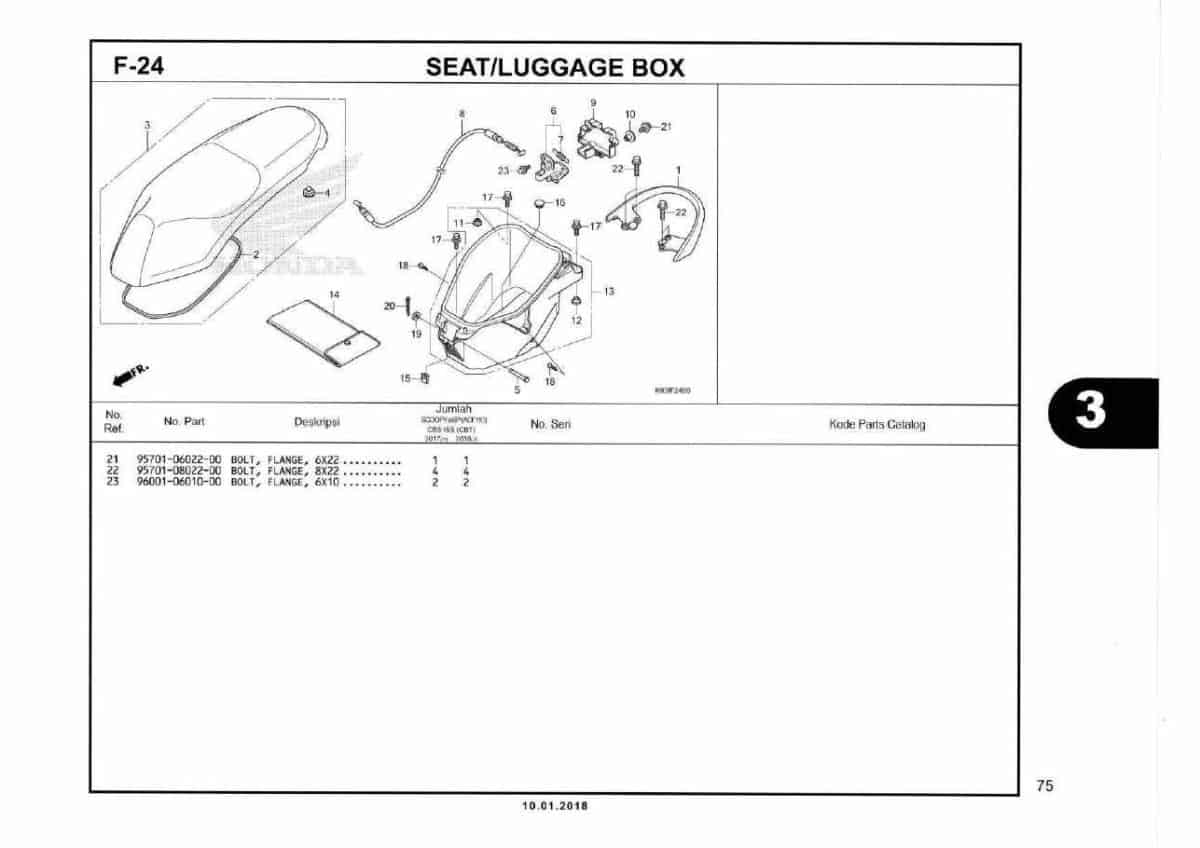

F24- Seat/Luggage Box – Katalog Honda Scoopy eSP K93H

#	Informasi Produk	Visual
1	RAIL, RR. GRAB NH303M MAT AXIS GRAY METALLIC Part Number : `50410K93N00ZD`
2	RUBBER, SEAL Part Number : `77115K93N00`
3	SEAT COMP., DOUBLE TYPE 1 Part Number : `77200K93N00ZB`
4	RUBBER C, SEAT SETTING Part Number : `77215KW7900`
5	PIN, SEAT HINGE Part Number : `77215KZL930`
6	CATCH COMP., SEAT Part Number : `77230K16900`
7	SPRING, SEAT LOCK Part Number : `77234GN2000`
8	CABLE COMP., SEAT LOCK Part Number : `77240K93N01`
9	COVER, SEAT CATCH Part Number : `77244K16A00`
10	COLLAR, SEAT CATCH COVER Part Number : `77245K93N00`
11	COLLAR, LUGGAGE BOX Part Number : `81201K81N00`
12	COLLAR, LUGGAGE BOX Part Number : `81202K81N00`
13	BOX, LUGGAGE Part Number : `81250K93N00`
14	BAG, OWNERS MANUAL Part Number : `83642171000`
15	NUT, SPRING, 4MM Part Number : `90302KWWA00`
16	PLUG HOLE TBLACK BLACK Part Number : `90656GCC000ZE`
17	BOLT - WASHER, 6X18 Part Number : `934040601800`
18	SCREW, TAPPING , 4X16 Part Number : `9390324410`
19	WASHER, PLAIN, 8MM Part Number : `9410108000`
20	PIN,SPLIT 1.6X18 Part Number : `9420116180`
21	BOLT, FLANGE, 6X22 Part Number : `957010601208`
22	BOLT, FLANGE 8X22 Part Number : `957010802200`
23	BOLT, FLANGE, 6X10 Part Number : `960010601000`
