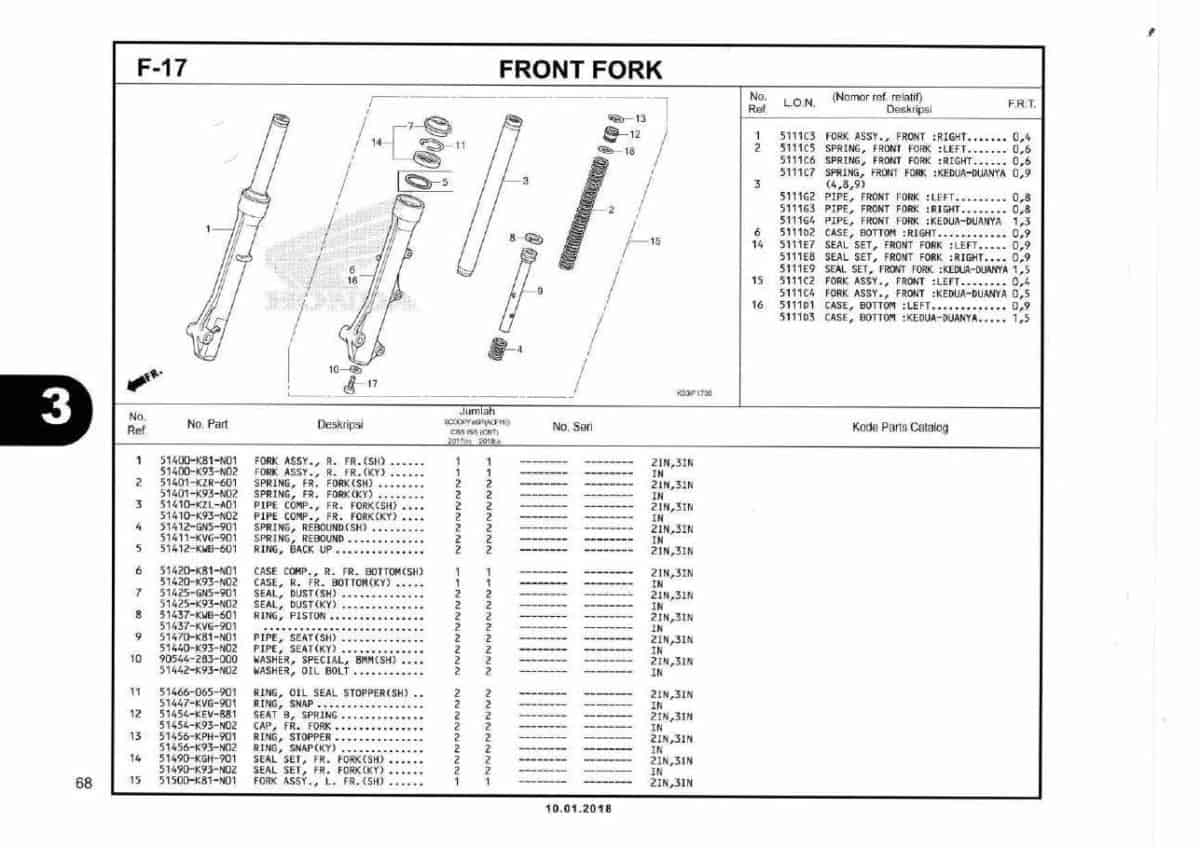

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FORK ASSY., R. FR. (SH) | 51400K81N01 |
|
| 1 | FORK ASSY., R. FR | 51400K93N02 |
|
| 2 | SPRING, FR. FORK (SH) | 51401KZR601 |
|
| 2 | SPRING, FR. FORK | 51401K93N02 |
|
| 3 | PIPE COMP., FR. FORK (SH) | 51410KZLA01 |
|
| 3 | PIPE COMP., FR. FORK | 51410K93N02 |
|
| 4 | SPRING, REBOUND (SH) | 51412GN5901 |
|
| 5 | RING, BACK UP | 51412KWB601 |
|
| 6 | CASE COMP., R. FR. BOTTOM (SH) | 51420K81N01 |
|
| 6 | CASE COMP, R. FR. BOTTOM | 51420K93N02 |
|
| 7 | SEAL, DUST (SH) | 51425GN5901 |
|
| 7 | SEAL, DUST | 51425K93N02 |
|
| 8 | RING, PISTON | 51437KWB601 |
|
| 8 | RING, PISTON | 51437KVG901 |
|
| 9 | PIPE, SEAT (SH) | 51470K81N01 |
|
| 9 | PIPE, SEAT | 51440K93N02 |
|
| 10 | WASHER, SPECIAL, 8MM (SH) | 90544283000 |
|
| 10 | Washer Oil Bolt 10 mm | 51442K93N02 |
|
| 11 | RING, OIL SEAL STOPPER (SH) | 51466065901 |
|
| 11 | Ring Snap | 51447KVG901 |
|
| 12 | SEAT B, SPRING | 51454KEV881 |
|
| 12 | Cap FR Fork | 51454K93N02 |
|
| 13 | RING, STOPPER | 51456KPH901 |
|
| 13 | Ring Snap | 51456K93N02 |
|
| 14 | SEAL SET, FR. FORK (SH) | 51490KGH901 |
|
| 14 | Seal Set FR Fork KYB | 51490K93N02 |
|
| 15 | FORK ASSY., L.FR. (SH) | 51500K81N01 |
|
| 15 | Fork Assy L Front | 51500K93N02 |
|
| 16 | CASE COMP., L. FR. BOTTOM (SH) | 51520K81N01 |
|
| 16 | Case L FR Bottom | 51520K93N02 |
|
| 17 | BOLT, SOCKET, 8MM(SH) | 90116KV3701 |
|
| 17 | Bolt Socket 10X25 | 90116KVGA31 |
|
| 18 | O-RING, 15.8X2.4(SH) | 91356GM0003 |
|
| 18 | O-Ring 16.8X2.4 | 91356KVG901 |
|
