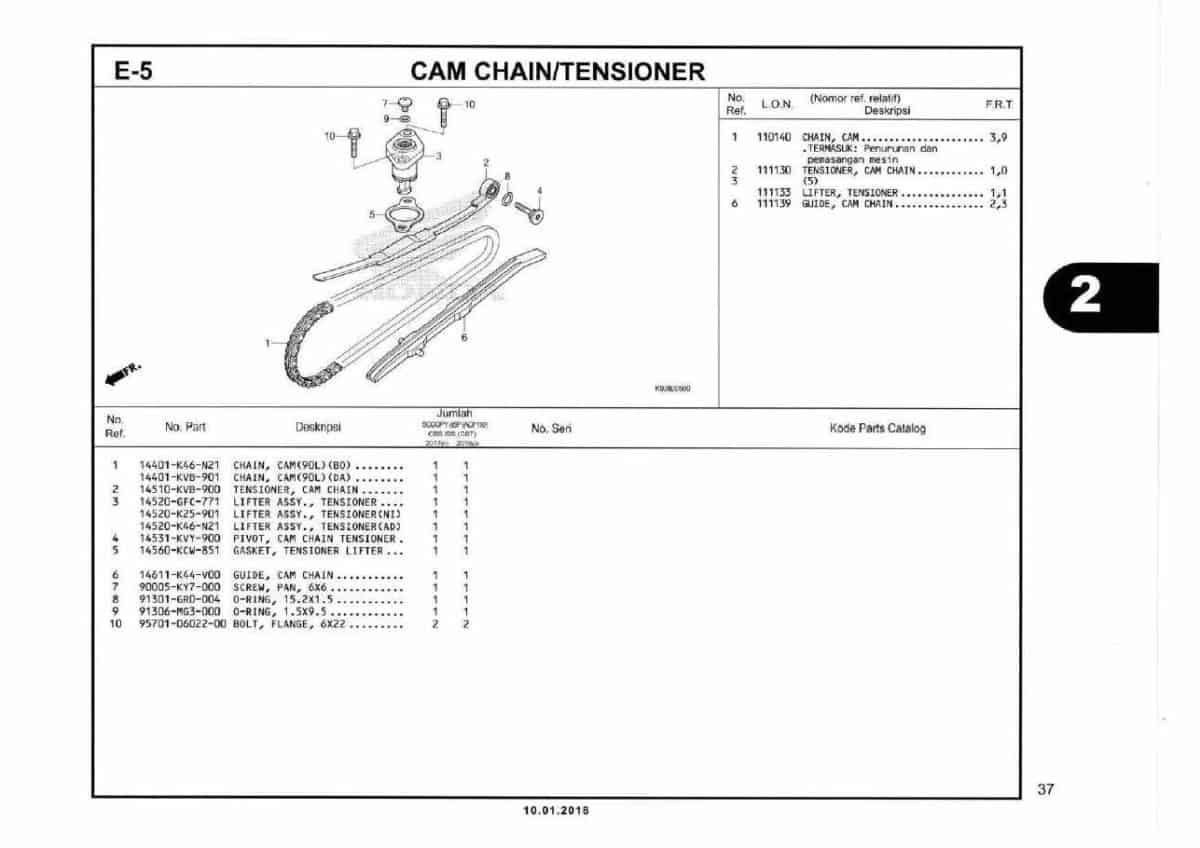

E5- Cam Chain/ Tensioner – Katalog Honda Scoopy eSP K93H

#	Informasi Produk	Visual
1	CHAIN, CAM (90L) (B0) Part Number : `14401K46N21`
1	CHAIN CAM DID SCR-0404SV Part Number : `14401KVB901`
2	TENSIONER, CAM CHAIN Part Number : `14510KVB900`
3	LIFTER ASSY., TENSIONER Part Number : `14520GFC771`
3	LIFTER ASSY TENSIONER Part Number : `14520K25901`
3	LIFTER ASSY TENSIONER Part Number : `14520K46N21`
4	PIVOT, CAM CHAIN TENSIONER Part Number : `14531KVY900`
5	GASKET, TENSIONER LIFTER Part Number : `14560KCW851`
6	GUIDE, CAM CHAIN Part Number : `14611K44V00`
7	SCREW, PAN 6X6 Part Number : `90005KY7000`
8	O-RING, 15.2X1.5 Part Number : `91301GR0004`
9	O-RING, 1.5x9.5 Part Number : `91306MG3000`
9	O-RING, 1.5x9.5 Part Number : `91306KRM840`
10	BOLT, FLANGE, 6X22 Part Number : `957010602200`
10	BOLT, FLANGE, 6X22 Part Number : `957010602208`
