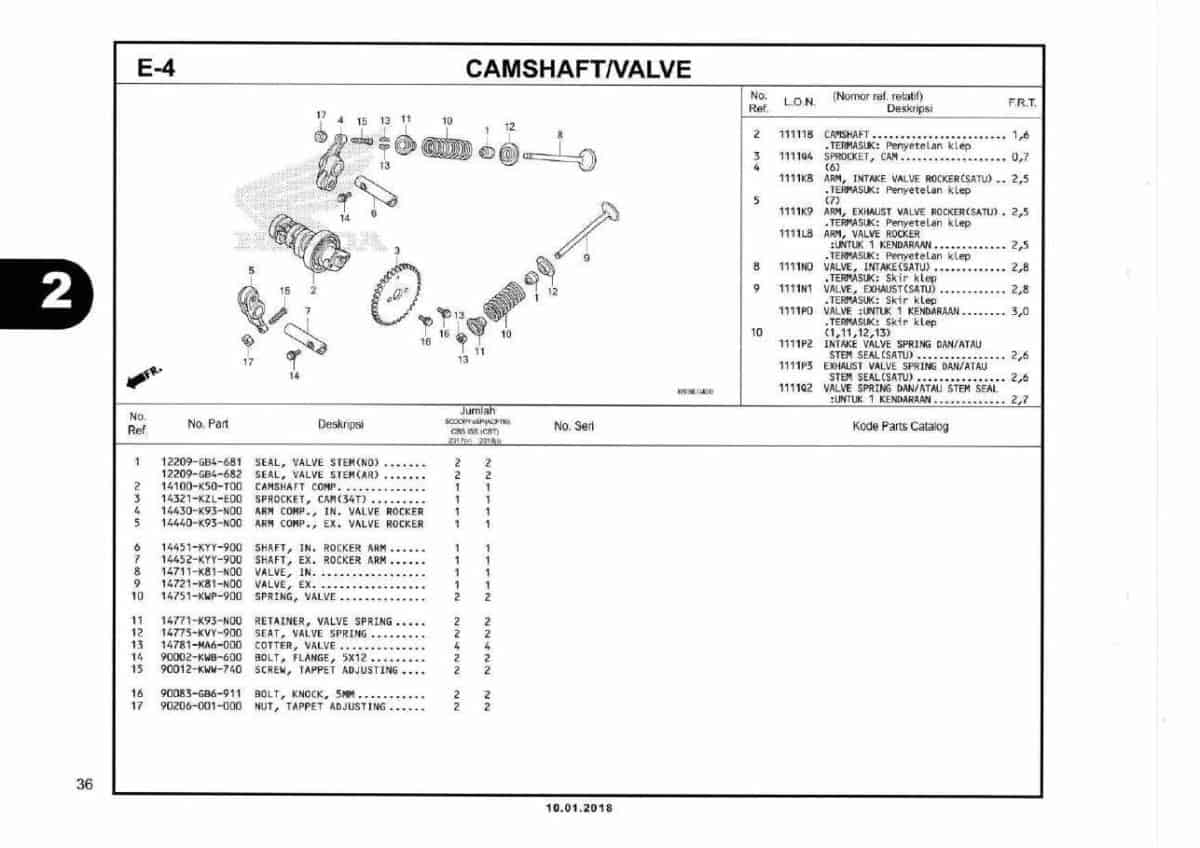

E4- Camshaft/ Valve – Katalog Honda Scoopy K93H

#	Informasi Produk	Visual
1	SEAL, VALVE STEM (N0) Part Number : `12209GB4681`
1	SEAL VLV. STEM Part Number : `12209GB4682`
2	CAMSHAFT COMP Part Number : `14100K50T00`
3	SPROCKET, CAM (34T) Part Number : `14321KZLE00`
4	ARM, COMP., IN. VALVE ROCKER Part Number : `14430K93N00`
5	ARM, COMP., EX. VALVE ROCKER Part Number : `14440K93N00`
6	SHAFT, IN. ROCKER ARM Part Number : `14451KYY900`
7	SHAFT, EX. ROCKER ARM Part Number : `14452KYY900`
8	VALVE, IN Part Number : `14711K81N00`
9	VALVE, EX Part Number : `14721K81N00`
10	SPRING, VALVE Part Number : `14751KWP900`
11	RETAINER, VALVE SPRING Part Number : `14771K93N00`
12	SEAT, VALVE SPRING Part Number : `14775KVY900`
13	COTTER, VALVE Part Number : `14781MA6000`
14	BOLT, FLANGE, 5X12 Part Number : `90002KWB600`
15	SCREW, TAPPET ADJUSTING Part Number : `90012KWW740`
16	BOLT, KNOCK, 5MM Part Number : `90083GB6911`
17	NUT, TAPPET ADJUSTING Part Number : `90206001000`
