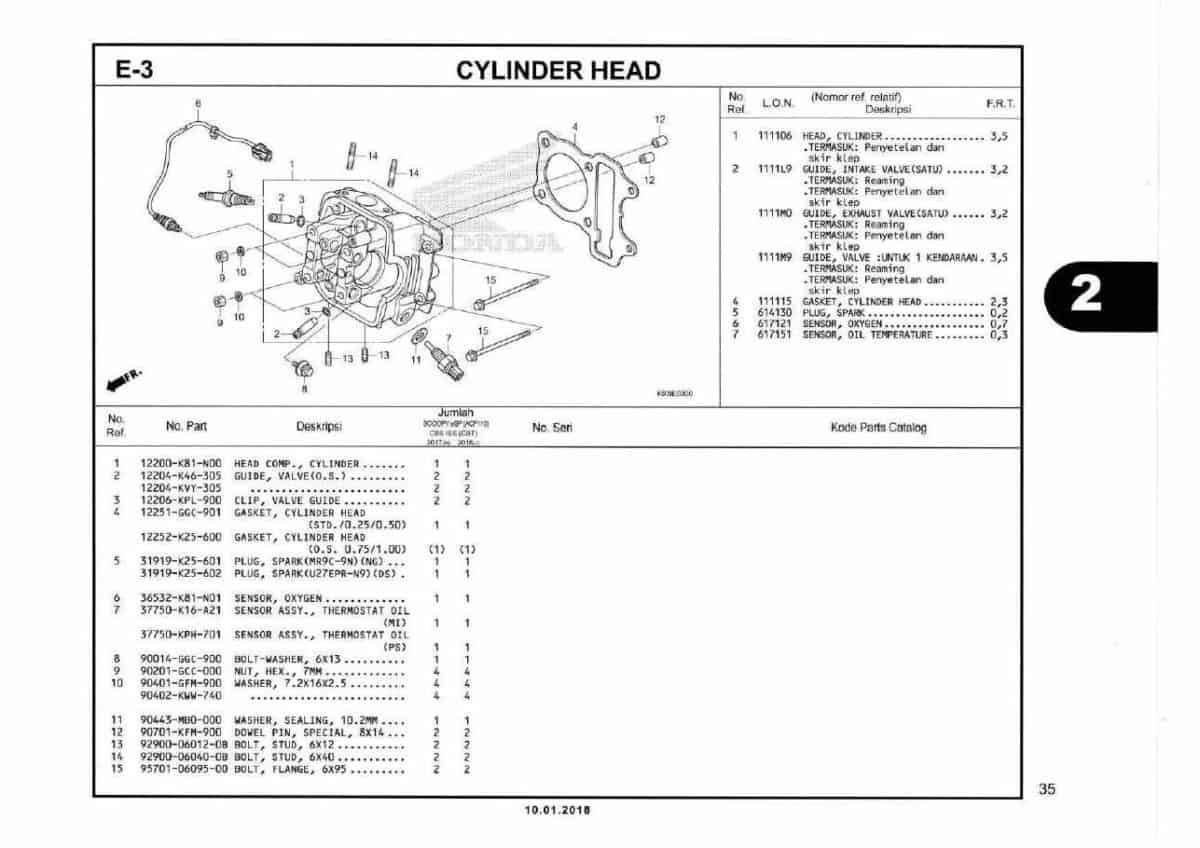

E3- Cylinder Head – Katalog Honda Scoopy K93H

#	Informasi Produk	Visual
1	HEAD COMP., CYLINDER Part Number : `12200K81N00`
2	GUIDE, VALVE(O.S.) Part Number : `12204KVY305`
3	CLIP, VALVE GUIDE Part Number : `12206KPL900`
4	GASKET, CYLINDER HEAD (STD./0.25/0.50) Part Number : `12251GGC901`
5	PLUG, SPARK(MR9C-9N) (NG) Part Number : `31919K25601`
5	Spark Plug U27EPR-N9 (DS) Part Number : `31919K25602`
6	SENSOR, OXYGEN Part Number : `36532K81N01`
7	SENSOR, ASSY., THERMOSTAT OIL (MI) Part Number : `37750K16A21`
8	BOLT WASHER, 6X13 Part Number : `90014GGC900`
9	NUT, HEX., 7MM Part Number : `90201GCC000`
10	WASHER, 7X.2X16X2.5 Part Number : `90401GCC000`
11	WASHER, SEALING, 10.2MM Part Number : `90443MB0000`
12	DOWEL PIN, SPECIAL, 8X14 Part Number : `90701KFM900`
13	BOLT, STUD, 6X12 Part Number : `92900060120B`
14	BOLT, STUD, 6X40 Part Number : `92900060400B`
15	BOLT, FLANGE, 6X95 Part Number : `957010609500`
