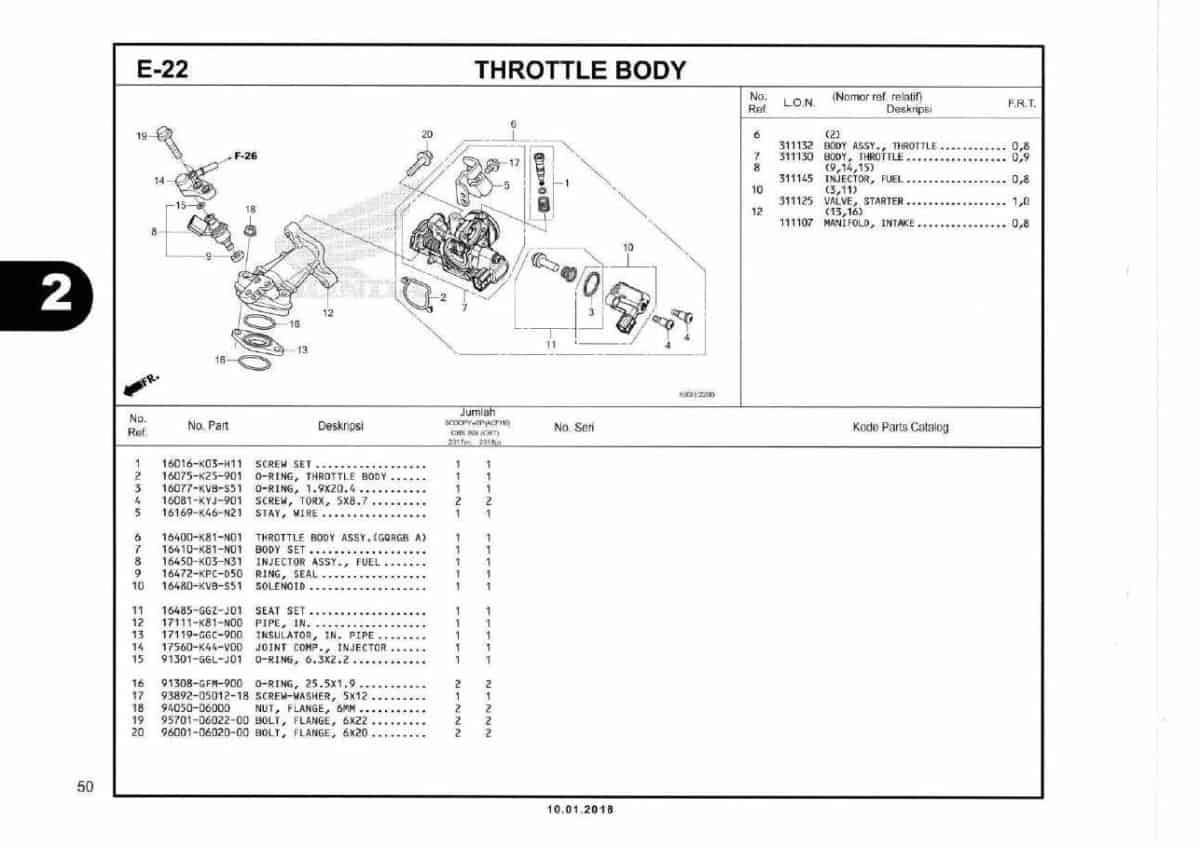

E22 – Throttle Body – Katalog Honda Scoopy eSP K93H

#	Informasi Produk	Visual
1	SCREW SET Part Number : `16016K03H11`
2	O-RING, THROTTLE BODY Part Number : `16075K25901`
3	O-RING 1.9X20.4 Part Number : `16077KVBS51`
4	SCREW, TORX 5X8.7 Part Number : `16081KYJ901`
5	STAY, WIRE Part Number : `16169K46N21`
6	THROTTLE BODY ASSY . (GQRGB A) Part Number : `16400K81N01`
6	THROTTLE BODY ASSY Part Number : `16400K46N21`
7	BODY SET Part Number : `16410K81N01`
7	BODY SET Part Number : `16410K46N21`
8	INJECTOR ASSY., FUEL Part Number : `16450K03N31`
9	RING, SEAL Part Number : `16472KPCD50`
10	SOLENOID Part Number : `16480KVBS51`
11	SEAT SET Part Number : `16485GGZJ01`
12	PIPE, IN Part Number : `17111K81N00`
13	INSULATOR, IN. PIPE Part Number : `17119GGC900`
14	JOINT COMP., INJECTOR Part Number : `17560K44V00`
15	O-RING , 6.3X2.2 Part Number : `91301GGLJ01`
16	O-RING, 25.5X1.9 Part Number : `91308GFM900`
17	SCREW WASHER, 5X12 Part Number : `938920501218`
18	NUT, FLANGE, 6MM Part Number : `9405006000`
19	BOLT, FLANGE, 6X22 Part Number : `957010602200`
20	BOLT, FLANGE, 6X20 Part Number : `960010602000`
