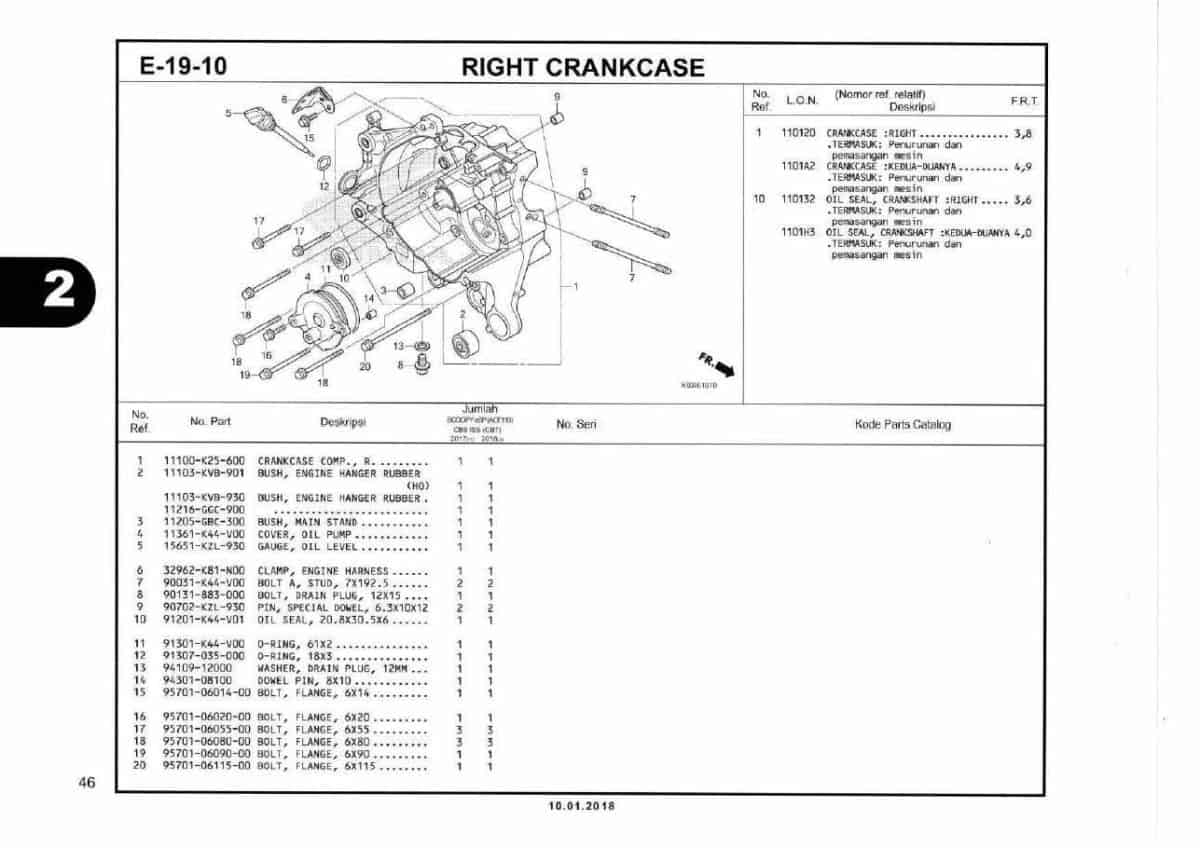

E19-10- Right CrankCase – Katalog Honda Scoopy eSP K93H

#	Informasi Produk	Visual
1	CRANKCASE COMP., Part Number : `11100k25600`
2	BUSH, ENGINE HANGER RUBBER (H0) Part Number : `11103KVB930`
2	BUSH, ENGINE HANGER RUBBER Part Number : `11103K0JN00`
2	BUSH, ENGINE HANGER RUBBER Part Number : `11103K0JN21`
3	BUSH, MAIN STAND Part Number : `11205GBC300`
4	COVER, OIL PUMP Part Number : `11361K44V00`
5	GAUGE, OIL LEVEL Part Number : `15651KZL930`
6	CLAMP, ENGINE HARNESS Part Number : `32962K81N00`
7	BOLT A, STUD, 7X192.5 Part Number : `90031K44V00`
8	BOLT, DRAIN PLUG, 12X15 Part Number : `90131883000`
9	PIN, SPECIAL DOWEL, 6.3X10X12 Part Number : `90702KZL930`
10	OIL SEAL 20.8X30.5X6 Part Number : `91201K44V01`
10	OIL SEAL 20.8X30.5X6 Part Number : `91201K50T01`
11	O-RING, 6X12 Part Number : `91301K44V00`
12	O-RING, 18X3 Part Number : `91307035000`
13	WASHER, DRAIN PLUG, 12MM Part Number : `9410912000`
14	DOWEL PIN, 8X10 Part Number : `9430108100`
15	BOLT, FLANGE, 6X14 Part Number : `957010601400`
16	BOLT, FLANGE, 6X20 Part Number : `957010602000`
17	BOLT, FLANGE 6X55 Part Number : `957010605500`
18	BOLT, FLANGE 6X80 Part Number : `957010608000`
19	BOLT, FLANGE 6X90 Part Number : `957010609000`
20	BOLT, FLANGE, 6X115 Part Number : `957010611500`
