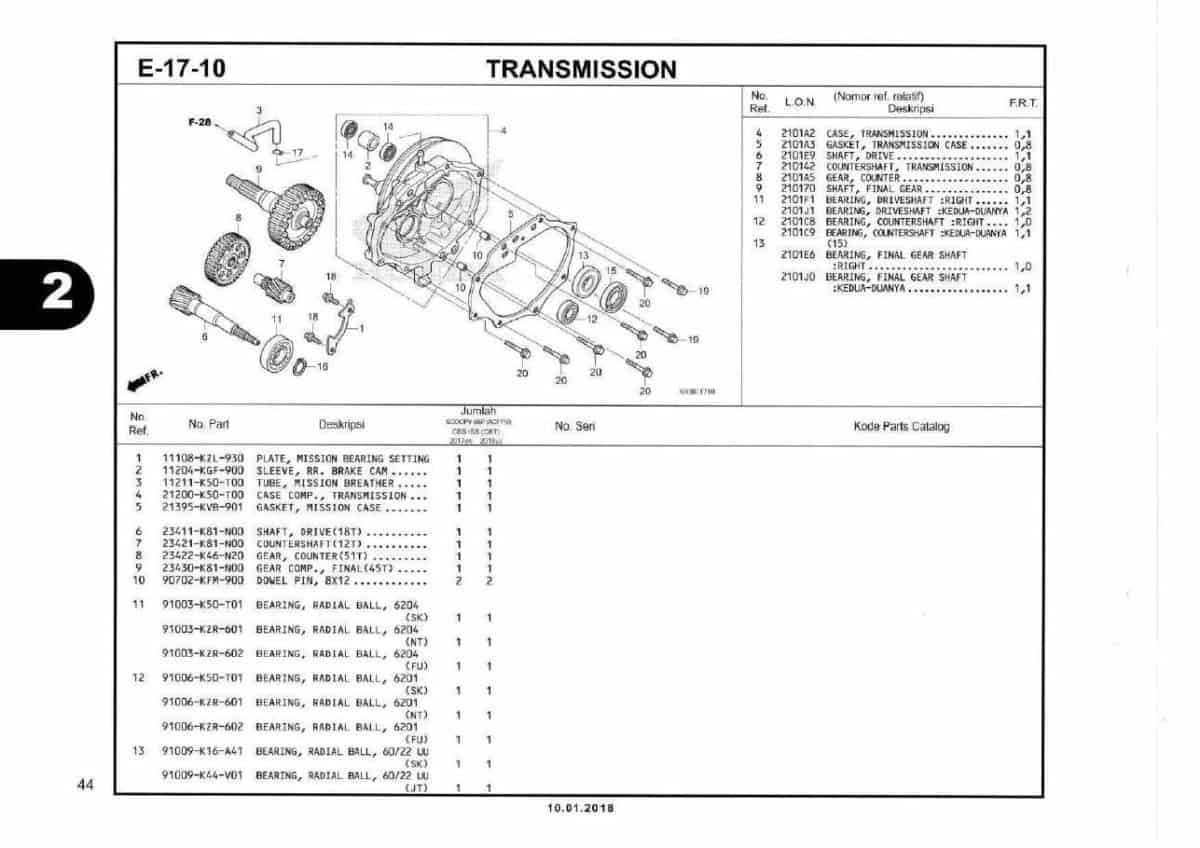

E17-10- Transmission – Katalog Honda Scoopy eSP K93H

#	Informasi Produk	Visual
1	PLATE, MISSION BEARING SETTING Part Number : `11108KZL930`
2	SLEEVE, RR. BRAKE CAM Part Number : `11204KGF900`
3	TUBE, MISSION BREATHER Part Number : `11211K50T00`
4	CASE CAMP., TRANSMISSION Part Number : `21200K25FA0`
5	GASKET, MISSION CASE Part Number : `21395KVB901`
6	SHAFT, DRIVE (18T) Part Number : `23411K81N00`
7	COUNTERSHAFT (12T) Part Number : `23421K81N00`
8	GEAR, COUNTER (51T) Part Number : `23422K46N20`
9	GEAR COMP., FINAL (45T) Part Number : `23430K81N00`
10	DOWEL PIN, 8X12 Part Number : `90702KFM900`
10	Pin,Dowel 8X12 Part Number : `90702KVRC00`
11	BEARING, RADIAL BALL , 6204 (SK) Part Number : `91003K50T01`
12	BEARING, RADIAL BALL, 6201 (SK) Part Number : `91006K50T01`
12	BEARING, RADIAL BALL, 6201 Part Number : `91007KVB903`
12	BEARING, RADIAL BALL, 6201 Part Number : `HB6201`
13	BEARING, RADIAL BALL, 60/22 UU (SK) Part Number : `91009K16A41`
14	OIL SEAL, 14X20X3.2 Part Number : `91201434003`
15	OIL SEAL 29X44X7(NOK) Part Number : `91204K50T01`
16	CIRCLIP, EXTERNAL, 20MM Part Number : `9451020000`
17	CLIP, TUBE (C9) Part Number : `9500250000`
18	BOLT, FLANGE, 6X14 Part Number : `957010601400`
19	BOLT, FLANGE, 6X30 Part Number : `957010603000`
19	BOLT, FLANGE, 6X30 Part Number : `957010603008`
20	BOLT, FLANGE, 6X40 Part Number : `957010604000`
