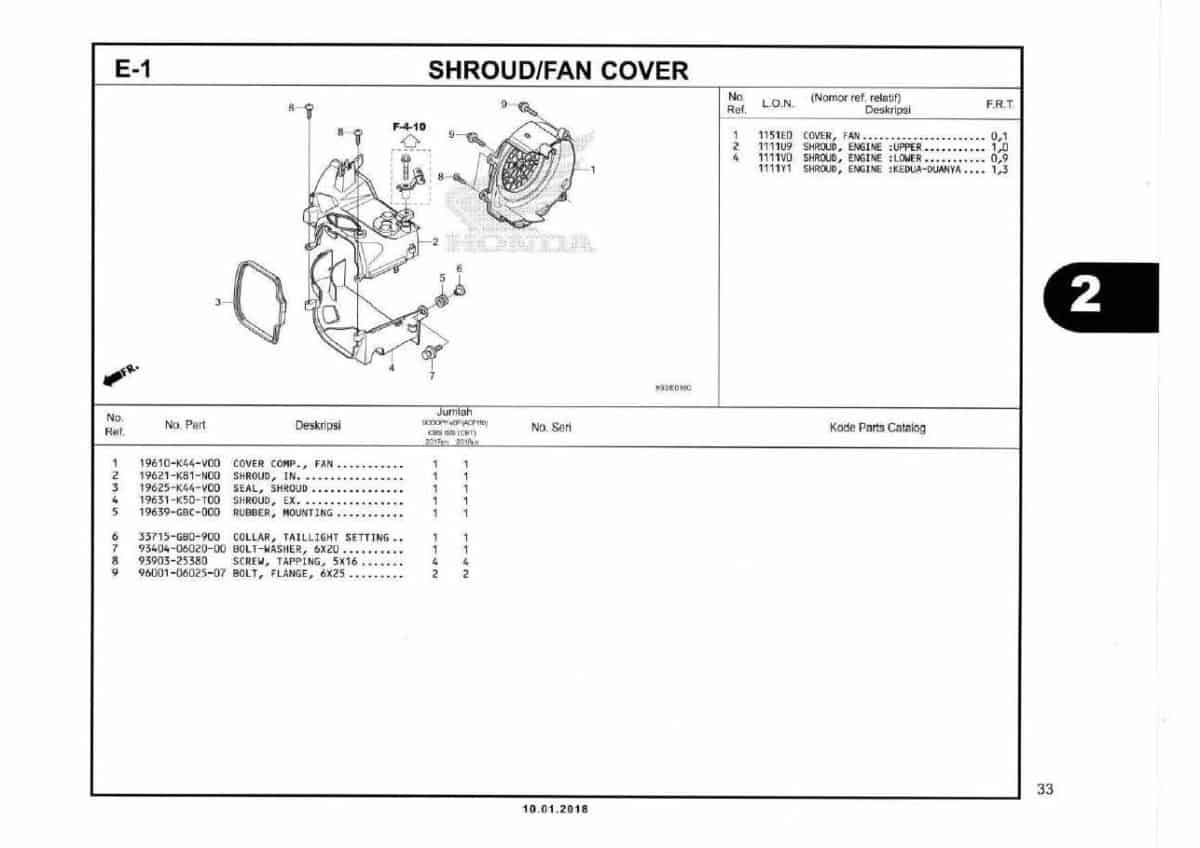

E1- Shroud/ Fan Cover – Katalog Honda Scoopy eSP K93H

#	Informasi Produk	Visual
1	COVER CAMP., FAN Part Number : `19610K44V00`
2	SHROUD, IN Part Number : `19621K81N00`
2	SHROUD, IN Part Number : `19621K50T00`
3	SEAL, SHROUD Part Number : `19625K44V00`
4	SHROUD, EX Part Number : `19631K50T00`
5	RUBBER, MOUNTING Part Number : `19639GBC000`
6	COLLAR, TAILLIGHT SETTING Part Number : `33715GB0900`
7	BOLT-WASHER, 6X20 Part Number : `934040602000`
7	BOLT-WASHER, 6X20 Part Number : `934040602008`
8	SCREW, TAPPING, 5X16 Part Number : `9390325380`
8	SCREW, TAPPING, 5X16 Part Number : `9390325320`
9	BOLT, FLANGE, 6X25 Part Number : `960010602507`
