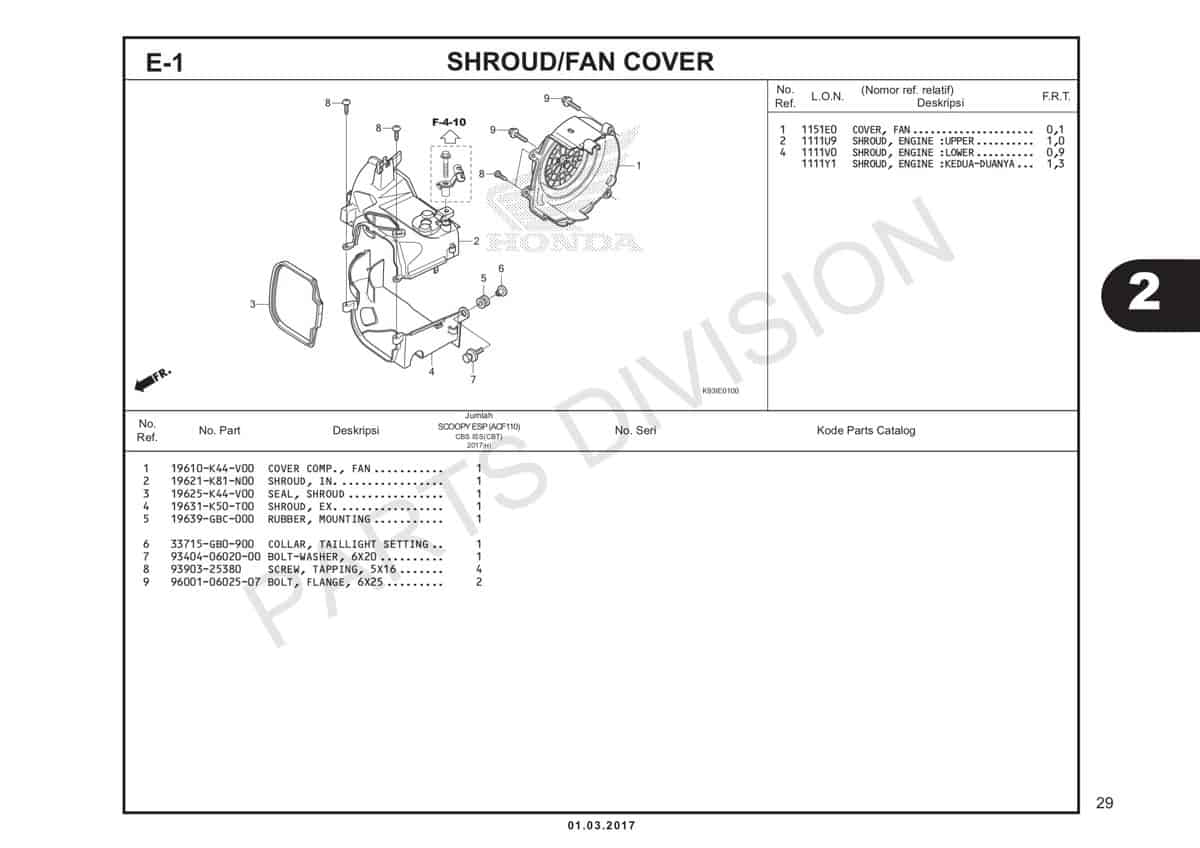

E1 – Shroud / Fan Cover – Katalog Honda Scoopy eSP K93

#	Informasi Produk	Visual
1	Cover Comp Fan Part Number : `19610K44V00`
2	Shroud Inlet Part Number : `19621K81N00`
2	Shroud Inlet Part Number : `19621K50T00`
3	Seal, Shroud Part Number : `19625K44V00`
4	Shroud, Exhaust Part Number : `19631K50T00`
5	Rubber Mount Part Number : `19639GBC000`
6	Collar Taillight Setting Part Number : `33715GB0900`
7	Bolt Washer 6X20 Part Number : `934040602000`
8	Screw Tapping 5X16 Part Number : `9390325380`
8	Screw Tapping 5X16 Part Number : `9390325320`
9	Bolt Flange 6X25 Part Number : `960010602507`
