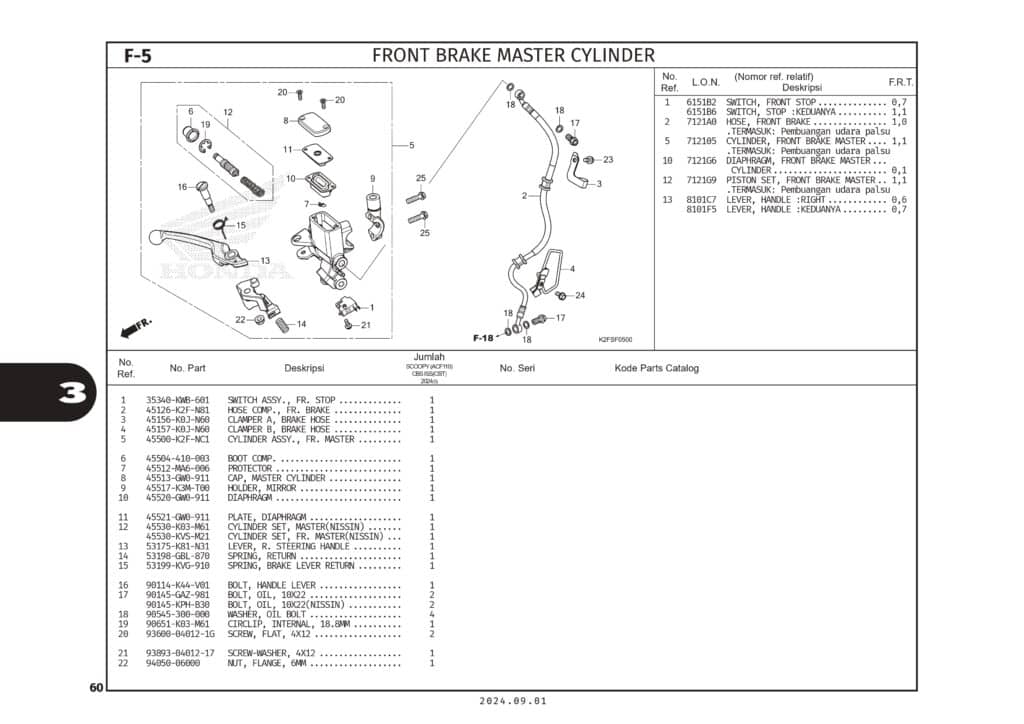

F-5 Front Brake Master Cylinder – Katalog Honda Scoopy eSP K2FP

#	Informasi Produk	Visual
1	SWITCH FR STOP ASSY Part Number : `35340KWB601`
2	HOSE COMP,FR BRK Part Number : `45126K2FN81`
3	CLAMPER A,FR BRK HOSE Part Number : `45156K0JN60`
4	CLAMPER B, BRK HOSE Part Number : `45157K0JN60`
5	M/C ASSY,FR Part Number : `45500K2FNC1`
6	BOOT COMP Part Number : `45504410003`
7	PROTECTOR Part Number : `45512MA6006`
8	CAP,MASTER CYLINDER Part Number : `45513GW0911`
9	HOLDER,MIRROR Part Number : `45517K3MT00`
10	DIAPHRAGM Part Number : `45520GW0911`
11	PLATE DIAPHRAGM Part Number : `45521GW0913`
12	CYLINDER SET, MASTER Part Number : `45530K03M61`
12	CYLINDER SET.FR M Part Number : `45530KVSM21`
13	LEVER, R. STEERING HANDLE Part Number : `53175K81N31`
14	SPRING RETURN Part Number : `53198GBL870`
15	SPRING BRAKE LEVER RETURN Part Number : `53199KVG910`
16	BOLT, HANDLE LEVER Part Number : `90114K44V01`
17	BOLT OIL 10X22 Part Number : `90145GAZ981`
17	BOLT OIL, 10X22 (NISSIN) Part Number : `90145KPHB30`
18	WASHER OIL BOLT Part Number : `90545300000`
19	CIRCLIP, INTERNAL, 18.8 Part Number : `90651K03M61`
20	SCREW FLAT, 4X12 Part Number : `93600040121G`
21	SCREW WASHER 4X12 Part Number : `938930401217`
22	NUT,FLANGE 6MM Part Number : `9405006000`
23	BOLT FLANGE 6X12 Part Number : `957010601200`
24	BOLT FLANGE 6X14 Part Number : `957010601400`
25	BOLT FLANGE 6X22 Part Number : `960010602200`
